2021 Kawasaki KLX®140R F Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

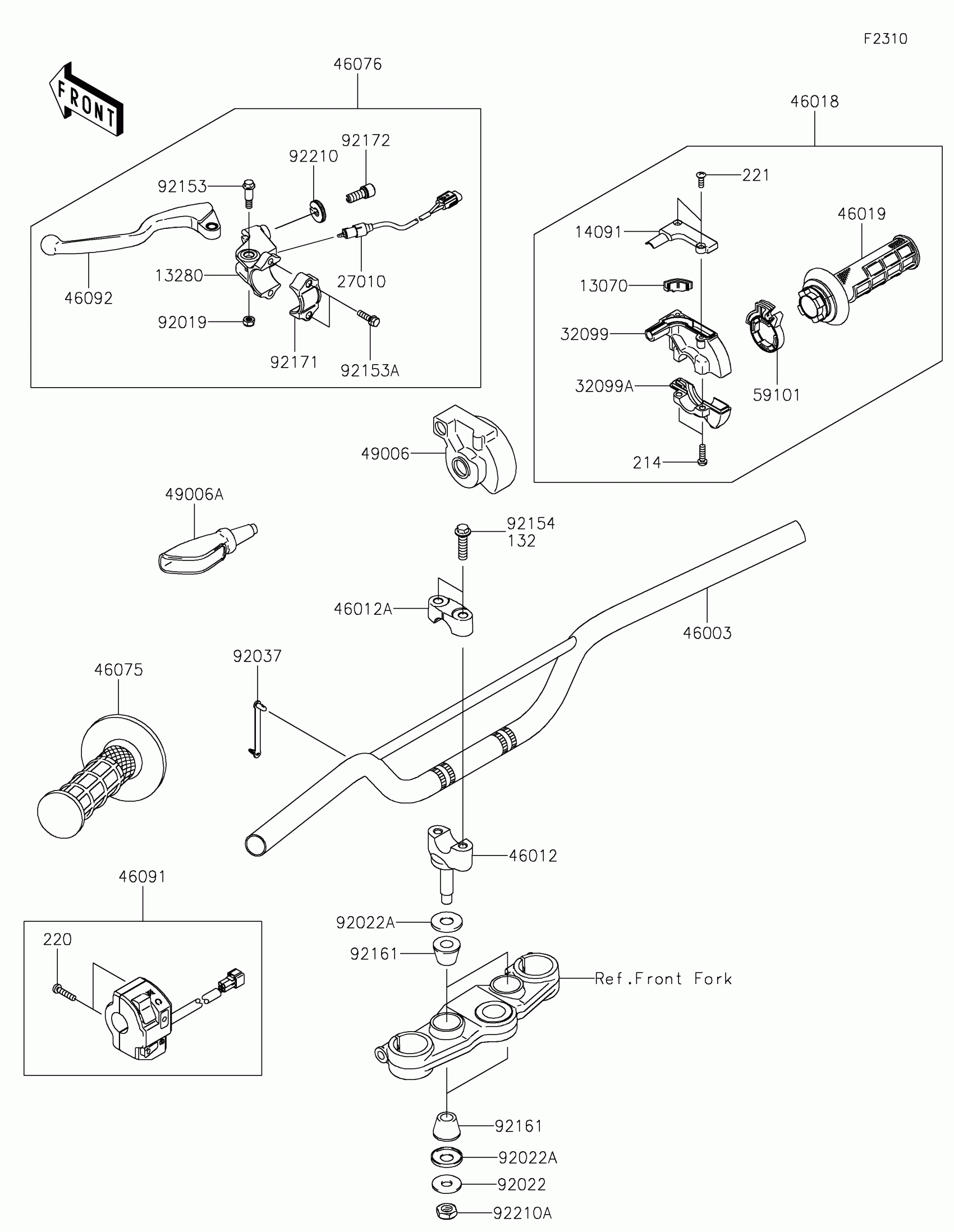

2021 Kawasaki KLX®140R F Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,THROTTLE

13070-0083

1
Out of stock

132

BOLT-FLANGED-SMALL,8X30

132BC0830

1
Out of stock

13280

HOLDER,CLUTCH LEVER

13280-0256

1
Out of stock

14091

COVER,THROTTLE CASE,UPP

14091-0873

1
Out of stock

214

SCREW-PAN+-,5X18

214AB0518

1
Out of stock

220

SCREW-PAN-CROS,5X22

220AB0522

1
Out of stock

221

SCREW-CSK-CROS,4X12

221AB0412

1
Out of stock

27010

SWITCH,CLUTCH

27010-0071

1
Out of stock

32099

CASE,THROTTLE,UPP

32099-0037

1
Out of stock

32099A

CASE,THROTTLE,LWR

32099-0038

1
Out of stock

46003

HANDLE,P.SILVER

46003-0205-458

1
Out of stock

46012

HOLDER-HANDLE,LWR,P.SILVER

46012-0013-458

1
Out of stock

46012A

HOLDER-HANDLE,UPP,P.SILVER

46012-0023-458

1
Out of stock

46018

GRIP-ASSY-THROTTLE

46018-0073

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0023

1
Out of stock

46075

GRIP,LH

46075-0072

1
Out of stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0049

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0226

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0026

1
Out of stock

49006

BOOT,THROTTLE CASE

49006-0075

1
Out of stock

49006A

BOOT,LEVER HOLDER

49006-0080

1
Out of stock

59101

REEL,THROTTLE

59101-0005

1
Out of stock

92015

NUT,LOCK,10MM

92015-1962

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92022

WASHER,10.2X28X2

92022-1088

1
Out of stock

92022A

WASHER

92022-1737

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92153

BOLT,6MM

92153-1897

1
Out of stock

92153A

BOLT,5X20

92153-1898

1
Out of stock

92161

DAMPER,HANDLE HOLDER

92161-0632

1
Out of stock

92171

CLAMP,LEVER HOLDER

92171-1671

1
Out of stock

92172

SCREW,CABLE ADJUST,8MM

92172-0330

1
Out of stock

92210

NUT,CABLE ADJUST

92210-0411

1
Out of stock
