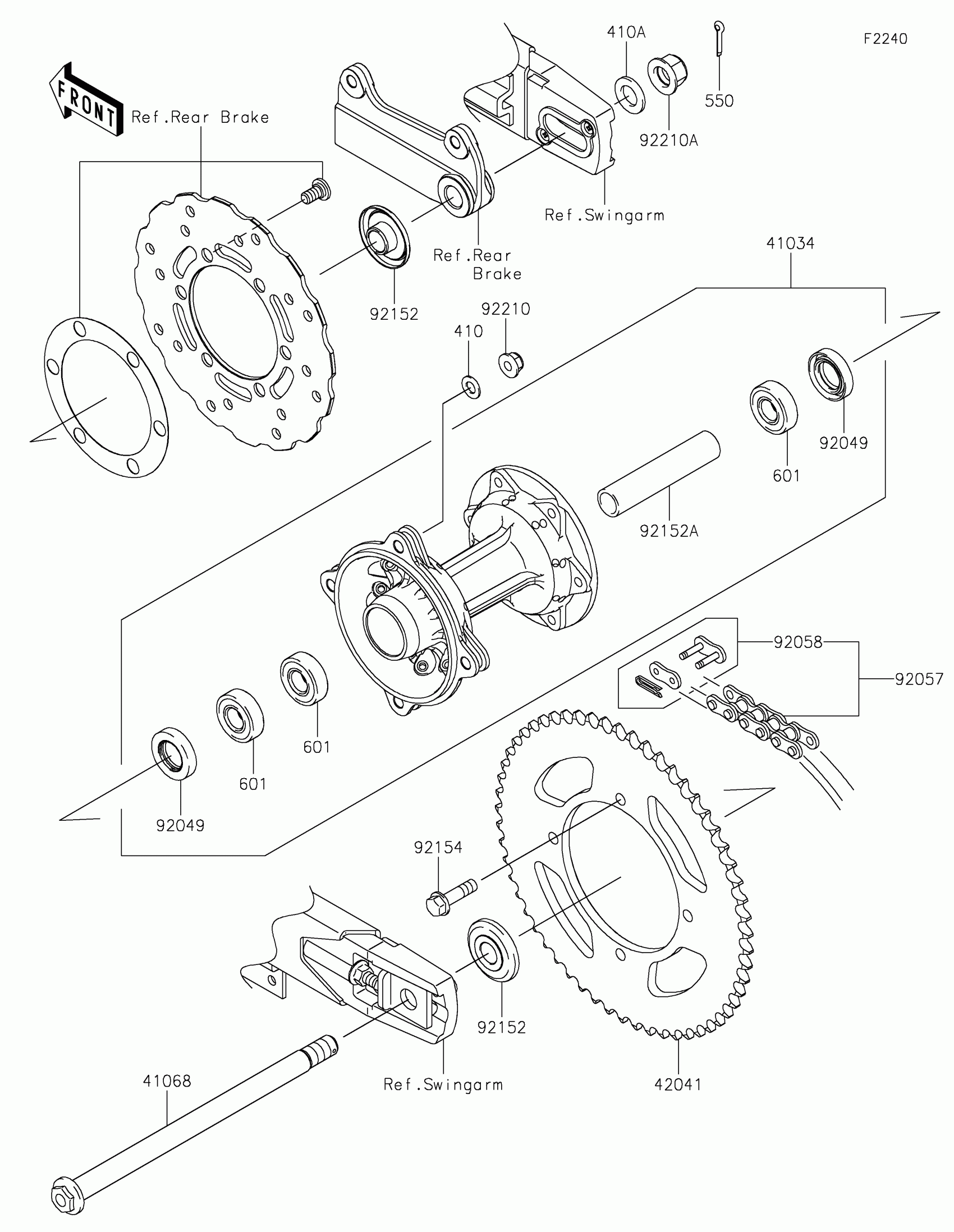

Kawasaki KLX®140R F Rear Hub Diagram

Description

Price

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

41034

DRUM-ASSY,RR

41034-0574

$334.19

41068

AXLE,RR,238MM

41068-0085

$31.35

410A

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

42041

SPROCKET-HUB,57T

42041-0156

$46.82

550

PIN-COTTER,2.5X20

550AA2520

$1.05

601

BEARING-BALL

601B6202UU

$17.77

92015

NUT,FLANGED,14MM

92015-1401

$8.66

92049

SEAL-OIL

92049-0114

$10.03

92057

CHAIN,DRIVE,DID428HDS3X134L

92057-0684

$60.56

92058

JOINT-CHAIN,DRIVE

92058-0016

$7.23

92152

COLLAR,RR AXLE,L=12.5

92152-0651

$17.30

92152A

COLLAR,RR BRAKE DRUM,L=95

92152-1090

$8.59

92154

BOLT,FLANGED,8X30

92154-0424

$4.53

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$9.08
