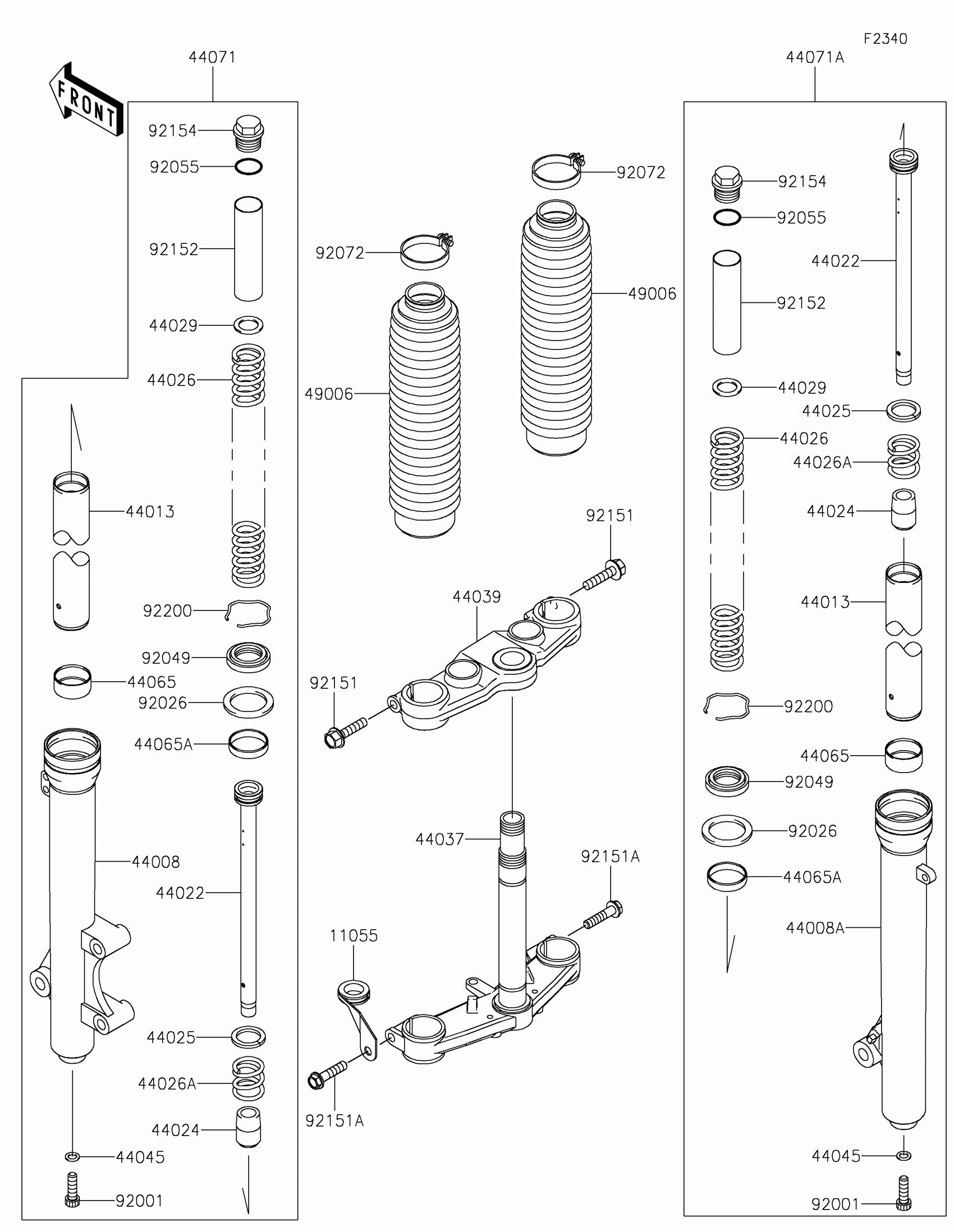

Kawasaki KLX®140R F Front Fork Diagram

#

Description
Price

11055

BRACKET,CABLE GUIDE

11055-0460

$25.56

44008

PIPE-FORK OUTER,LH,P.SILVER

44008-0038-458

$247.94

44008A

PIPE-FORK OUTER,RH,P.SILVER

44008-0039-458

$247.94

44013

PIPE-FORK INNER

44013-0283

$234.42

44022

CYLINDER-FORK

44022-0040

$72.27

44024

CAP-OIL-LOCK

44024-1067

$21.15

44025

RING-FORK PISTON

44025-1065

$9.86

44026

SPRING-FRONT FORK

44026-0201

$52.50

44026A

SPRING-FRONT FORK

44026-1417

$3.51

44029

SEAT-FORK SPRING

44029-1136

$17.92

44037

HOLDER-FORK UNDER,P.SILVER

44037-0072-458

$269.29

44039

HOLDER-FORK UPPER

44039-0066

$167.40

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1123

$13.06

44065A

BUSHING-FRONT FORK

44065-1133

$13.27

44071

DAMPER-ASSY,FORK,LH,P.SILVER

44071-1451-458

$488.03

44071A

DAMPER-ASSY,FORK,RH,P.SILVER

44071-1452-458

$488.03

49006

BOOT,FORK,BLACK

49006-0583-BD

$62.32

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92026

SPACER

92026-1365

$9.42

92049

SEAL-OIL,FORK OUTER TUBE

92049-1524

$13.40

92055

RING-O,FORK TOP

92055-1367

$4.33

92072

BAND,BOOT

92072-0107

$11.42

92151

BOLT,FLANGED,8X35

92151-1635

$10.10

92151A

BOLT,FLANGED,10X35

92151-1636

$10.10

92152

COLLAR

92152-2226

$15.93

92154

BOLT,FORK TOP

92154-3990

$39.83

92200

WASHER

92200-1496

$5.25
