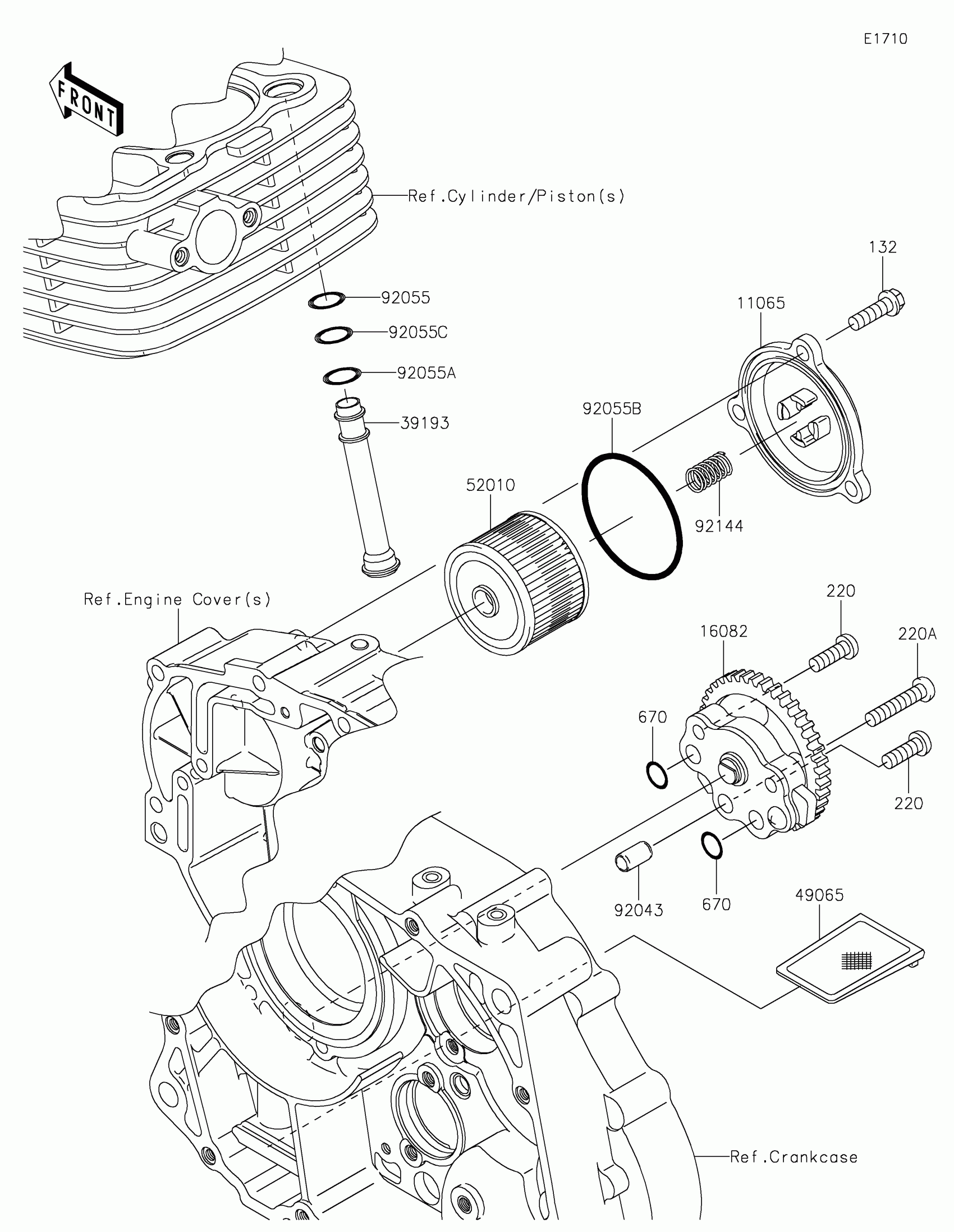

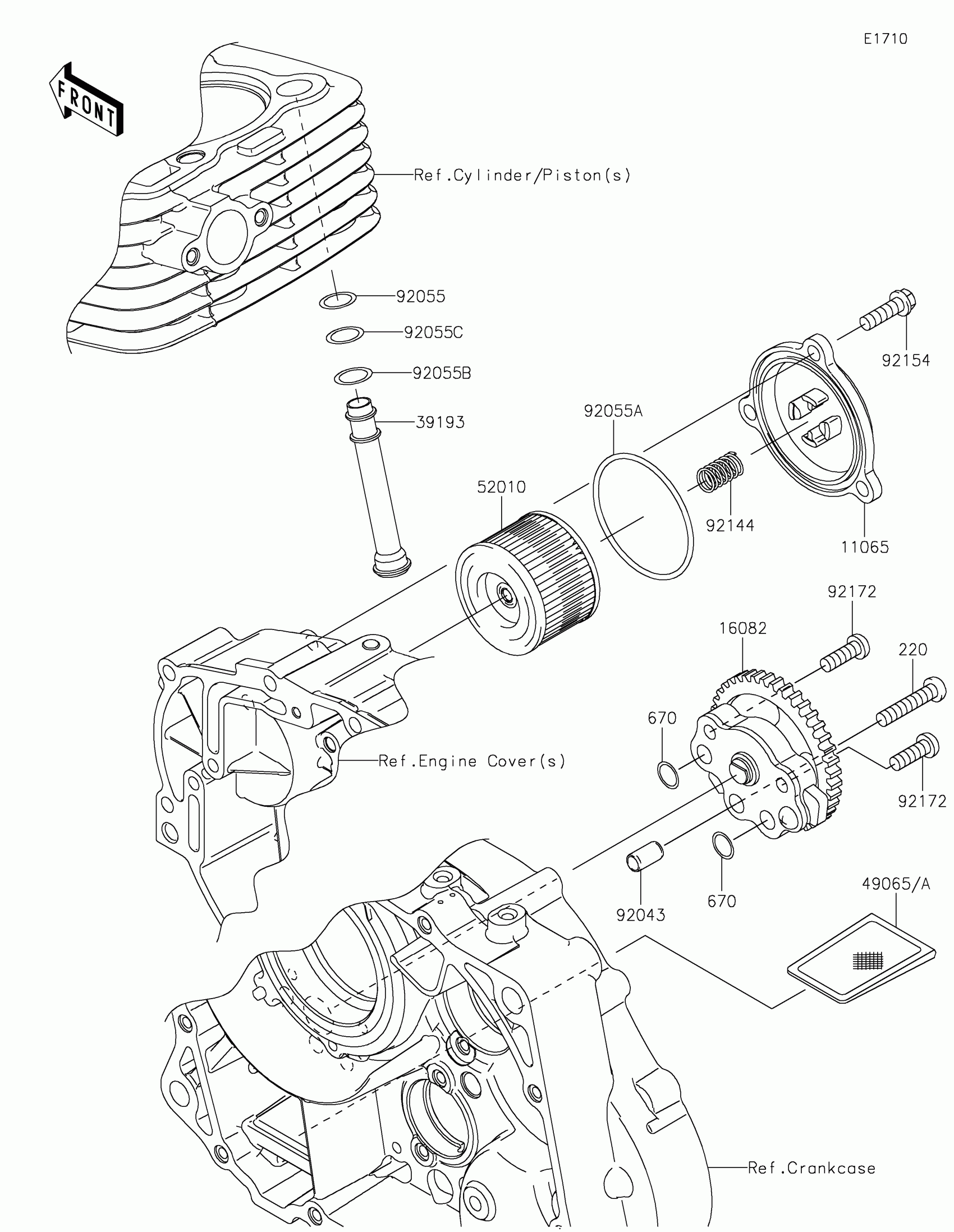

Kawasaki KLX®140R F Oil Pump Diagram

Description

Price

11065

CAP

11065-0255

$17.65

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

16082

PUMP-ASSY-OIL

16082-1159

$19.39

220

SCREW-PAN-CROS,6X18

220AA0618

$2.79

220A

SCREW-PAN-CROS,6X30

220AA0630

$2.79

39193

PIPE-OIL

39193-0578

$5.17

49065

FILTER-OIL

49065-0021

$6.85

52010

ELEMENT-OIL FILTER

52010-0552

Unavailable

670

O RING,9.8X1.9

670B1510

$3.29

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,9.8X1.9

92055-0061

$1.85

92055A

RING-O,12.8X1.9

92055-0152

$2.98

92055B

RING-O,59.6X2.4

92055-0201

$5.53

92055C

RING-O,9.8X2.4

92055-1150

$6.18

92144

SPRING

92144-1892

$2.27
