2021 Kawasaki KLX®140R F Muffler Diagram

← All diagrams

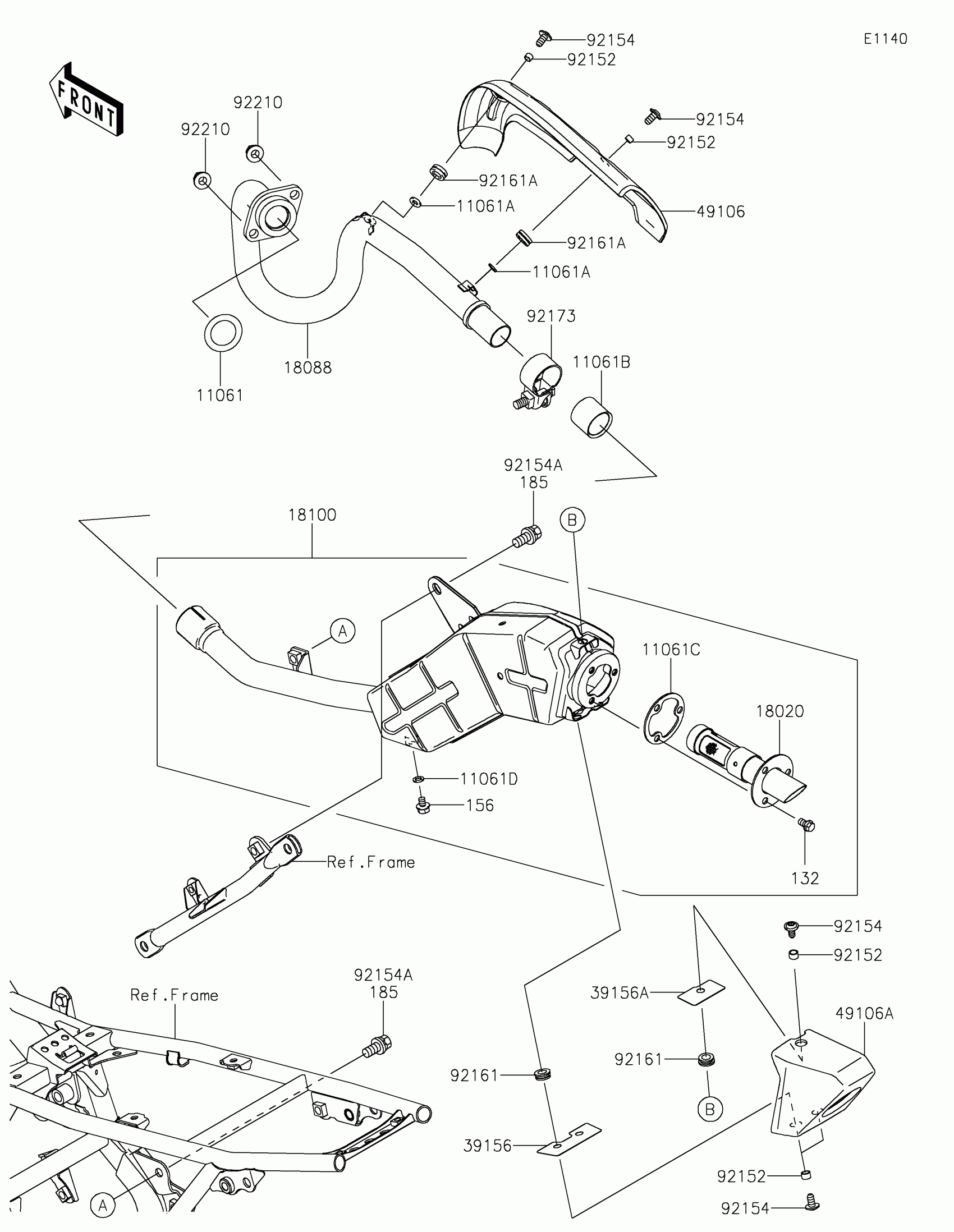

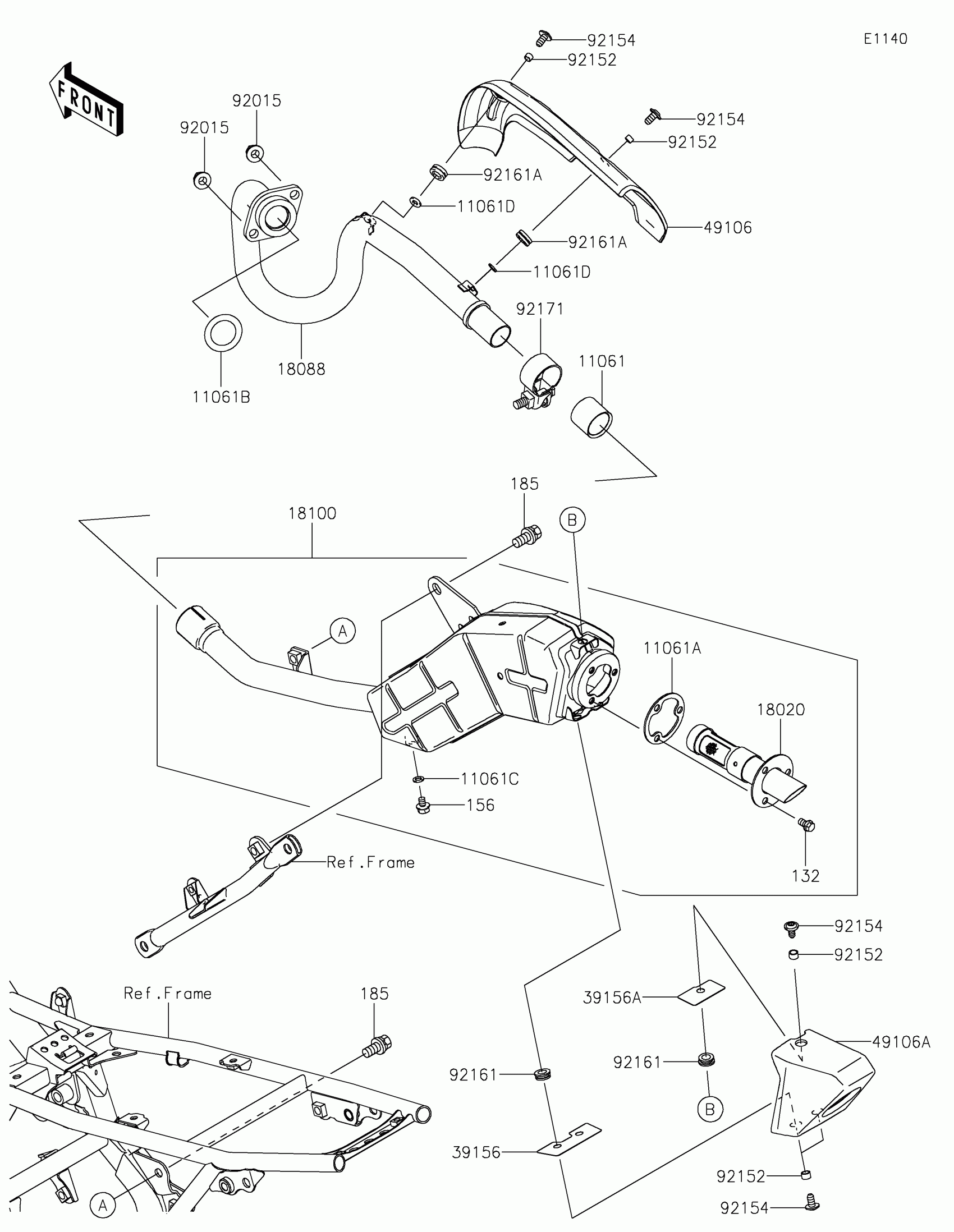

Find the part on the Muffler diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki KLX®140R F Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,MUFFLER JOINT

11061-0207

1
Out of stock

11061A

GASKET

11061-0301

1
Out of stock

11061B

GASKET,EXHAUST PIPE

11061-0322

1
Out of stock

11061C

GASKET,DRAIN

11061-0875

1
Out of stock

11061D

GASKET,5.8X12X1.5

11061-1148

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BB0610

1
Out of stock

156

BOLT-WP,6X10

156R0610

1
Out of stock

18020

BAFFLE

18020-0058

1
Out of stock

18088

PIPE-EXHAUST

18088-0429

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-0585

1
Out of stock

185

BOLT-UPSET-WSP-SMALL,8X16

185BA0816

1
Out of stock

39156

PAD,MUFFLER COVER,INNER,LWR

39156-0552

1
Out of stock

39156A

PAD,MUFFLER COVER,INNER,UPP

39156-0553

1
Out of stock

49106

COVER-MUFFLER,EX. PIPE

49106-0066

1
Out of stock

49106A

COVER-MUFFLER,TAIL CAP

49106-0081

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92152

COLLAR,6.5X8.5X5.5

92152-0612

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-0042

1
Out of stock

92161

DAMPER

92161-0545

1
Out of stock

92161A

DAMPER

92161-1475

1
Out of stock

92171

CLAMP

92171-0593

1
Out of stock
