2021 Kawasaki KLX®140R F Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

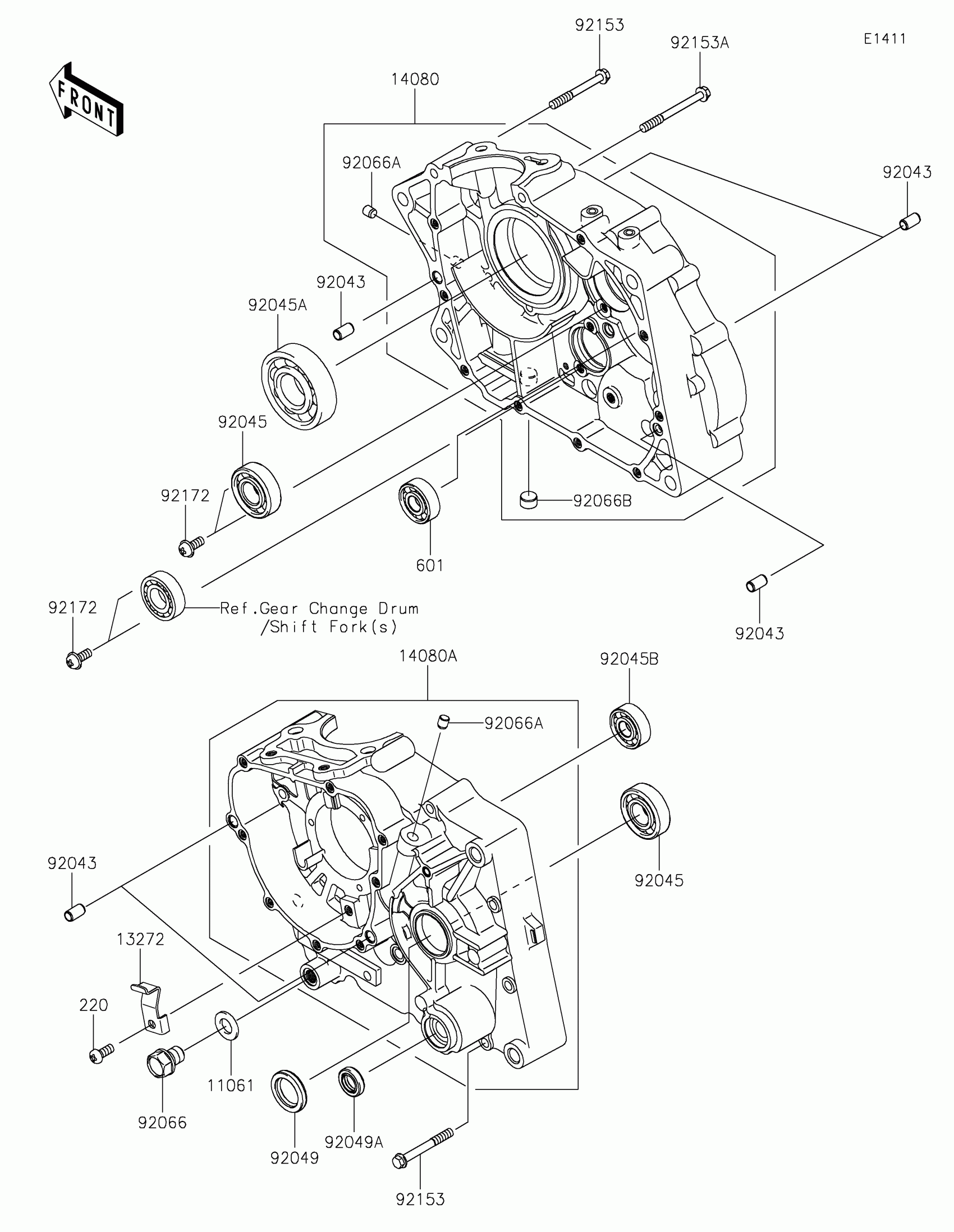

2021 Kawasaki KLX®140R F Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DRAIN PLUG

11061-0421

1
Out of stock

13272

PLATE

13272-1384

1
Out of stock

14080

CRANKCASE,RH

14080-0251

1
Out of stock

14080A

CRANKCASE,LH

14080-0295

1
Out of stock

220

SCREW-PAN-CROSS,6X14

220AA0614

1
Out of stock

601

BEARING-BALL

601A6201

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,#6203C2

92045-0745

1
Out of stock

92045A

BEARING-BALL,6305JR2C3

92045-1120

1
Out of stock

92045B

BEARING-BALL,6201ZC3/5C

92045-1308

1
Out of stock

92049

SEAL-OIL

92049-0011

1
Out of stock

92049A

SEAL-OIL,13X22X5.5

92049-0141

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0753

1
Out of stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92066B

PLUG

92066-1110

1
Out of stock

92153

BOLT,6X50

92153-1145

1
Out of stock

92153A

BOLT,6X60

92153-1146

1
Out of stock

92172

SCREW,6X14

92172-1062

1
Out of stock
