2021 Kawasaki KLX®140R F Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2021 Kawasaki KLX®140R F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

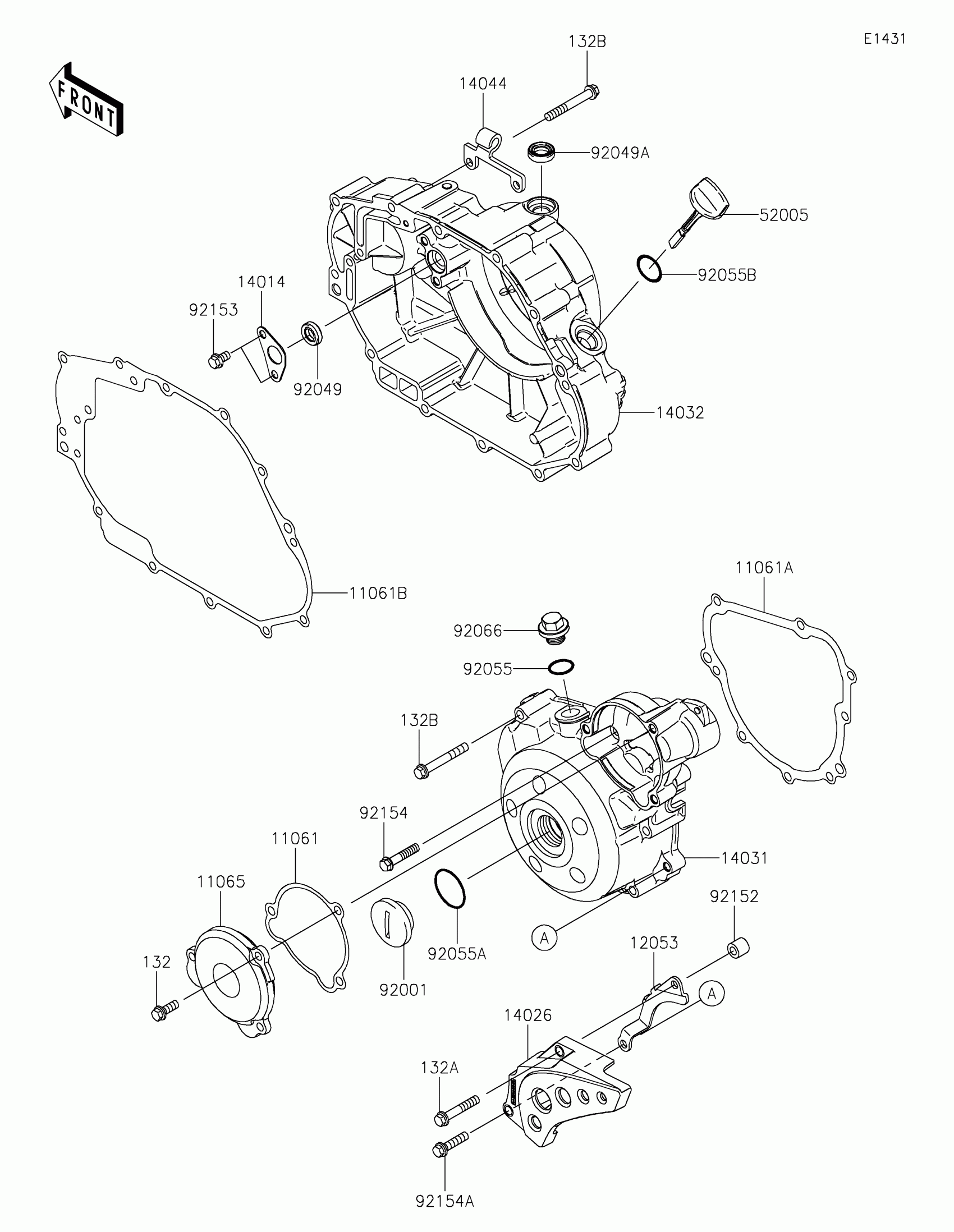

2021 Kawasaki KLX®140R F Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0300

1
Out of stock

11061A

GASKET,GENERATOR COVER

11061-0820

1
Out of stock

11061B

GASKET,CLUTCH COVER

11061-1315

1
Out of stock

11065

CAP

11065-0209

1
Out of stock

12053

GUIDE-CHAIN

12053-0134

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132BA0635

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

1
Out of stock

14014

PLATE-POSITION

14014-1153

1
Out of stock

14026

COVER-CHAIN

14026-0084

1
Out of stock

14031

COVER-GENERATOR

14031-0116

1
Out of stock

14032

COVER-CLUTCH

14032-0116

1
Out of stock

14044

HOLDER-CABLE

14044-0044

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-0724

1
Out of stock

92001

BOLT,GENERATOR COVER CAP

92001-1827

1
Out of stock

92049

SEAL-OIL,10X18X5

92049-0104

1
Out of stock

92049A

SEAL-OIL,12X20X5.5

92049-0142

1
Out of stock

92055

RING-O,14.8X2.4

92055-0153

1
Out of stock

92055A

RING-O,25.7X2.4

92055-0154

1
Out of stock

92055B

RING-O,20X2

92055-0155

1
Out of stock

92066

PLUG,14X10

92066-1571

1
Out of stock

92152

COLLAR,6.5X12X11

92152-0692

1
Out of stock

92153

BOLT,6X10

92153-1140

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1080

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-2154

1
Out of stock
