2011 Kawasaki KLX®140 Cables Diagram

← All diagrams

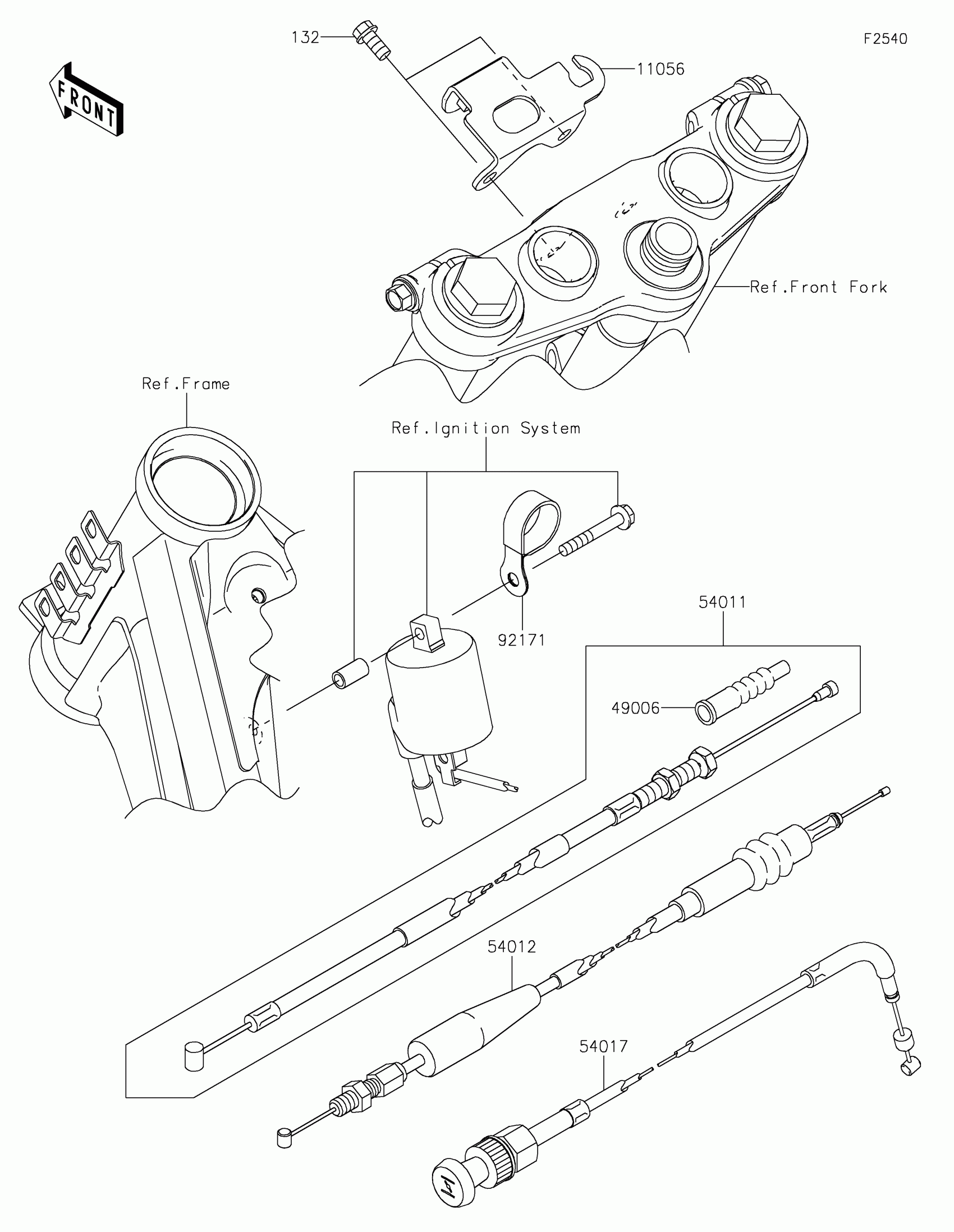

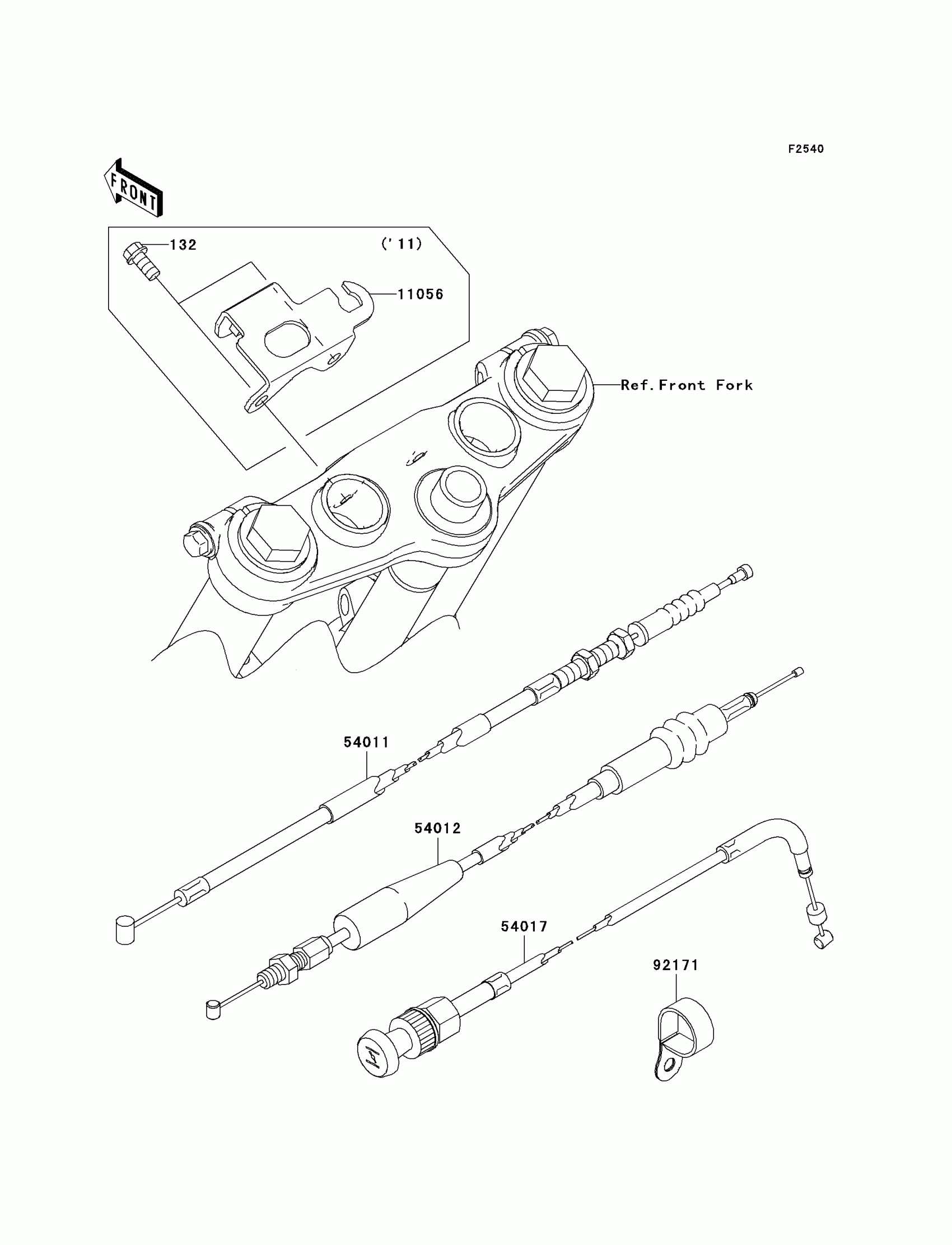

Find the part on the Cables diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

11056

1

$8.92

In stock

54011

CABLE-CLUTCH

54011-0084

1
Out of stock

54012

CABLE-THROTTLE

54012-0212

1

$23.88

In stock

54017

CABLE-STARTER

54017-0038

1

$30.55

In stock

92171

CLAMP

92171-1279

1

$8.93

In stock
← Rear Master Cylinder Front Fork →

More Suspension & Wheels diagrams
