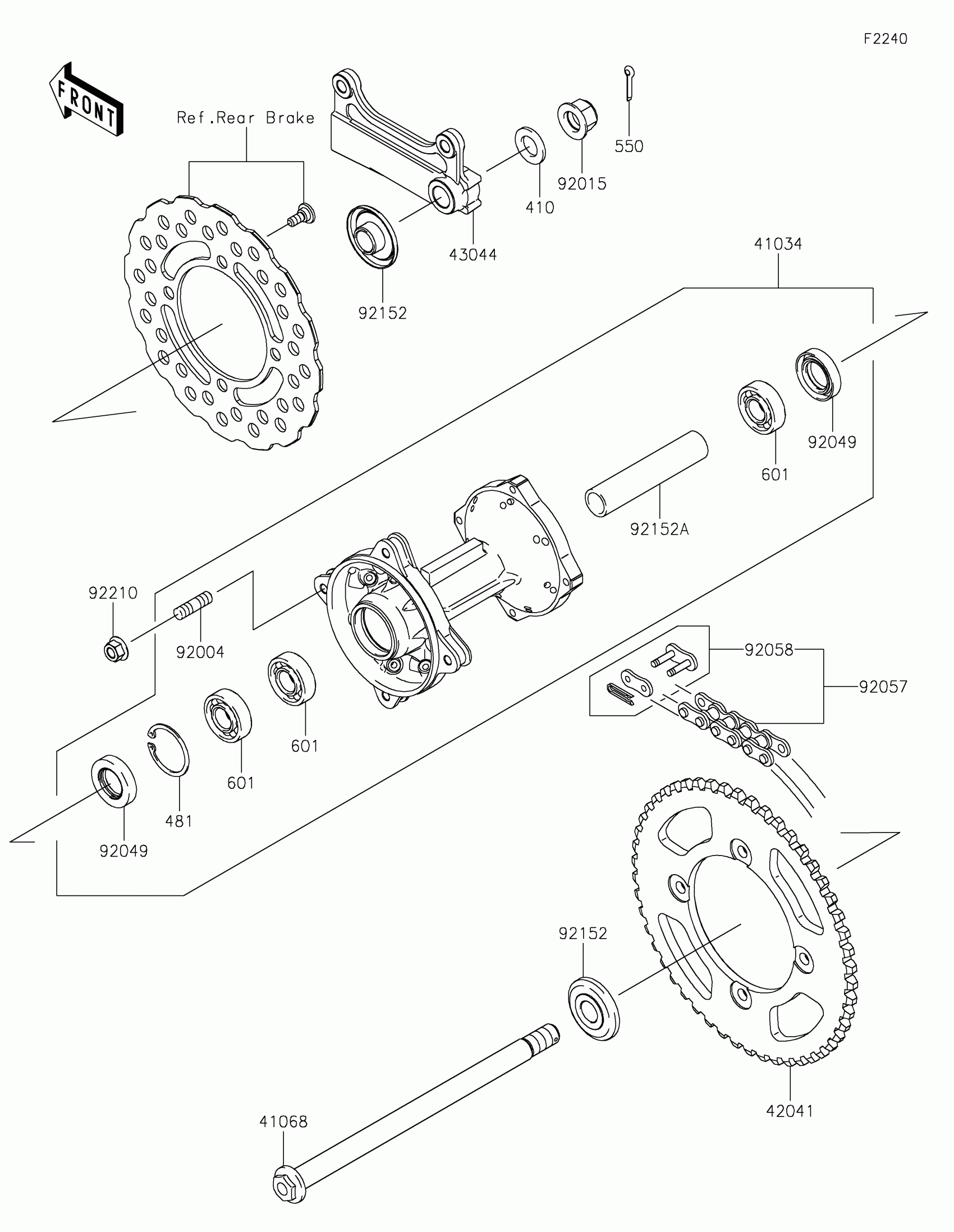

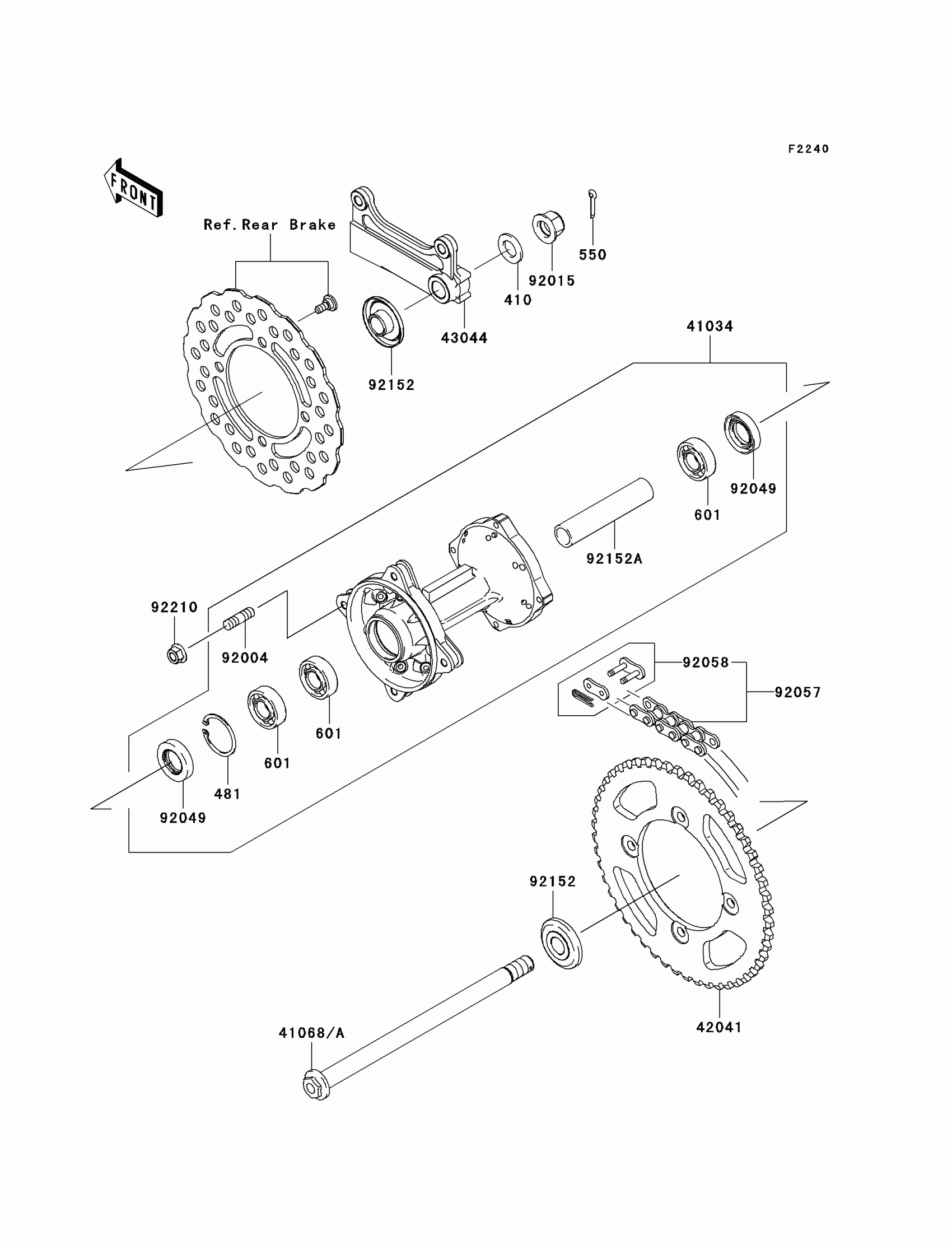

Kawasaki KLX®140 Rear Hub Diagram

Description

Price

410

WASHER-PLAIN-SMALL,14MM

410AA1400

$1.57

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

550

PIN-COTTER,2.5X20

550AA2520

$1.05

601

BEARING-BALL

601B6202UU

$17.77

41034

DRUM-ASSY,REAR BRAKE

41034-0056

$349.07

41068

AXLE,RR,238MM

41068-0085

$31.35

42041

SPROCKET-HUB,50T

42041-0051

$54.06

43044

HOLDER-COMP-CALIPER

43044-1122

$66.78

92004

STUD,8X16

92004-1183

$4.80

92015

NUT,FLANGED,14MM

92015-1401

$8.66

92049

SEAL-OIL

92049-0114

Unavailable

92057

CHAIN,DRIVE,DID428HX122L

92057-0135

Unavailable

92058

JOINT-CHAIN,DRIVE

92058-0016

$7.23

92152

COLLAR,RR AXLE,L=12.5

92152-0651

$17.30

92152A

COLLAR,RR BRAKE DRUM,L=95

92152-1090

$8.59

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$9.08
