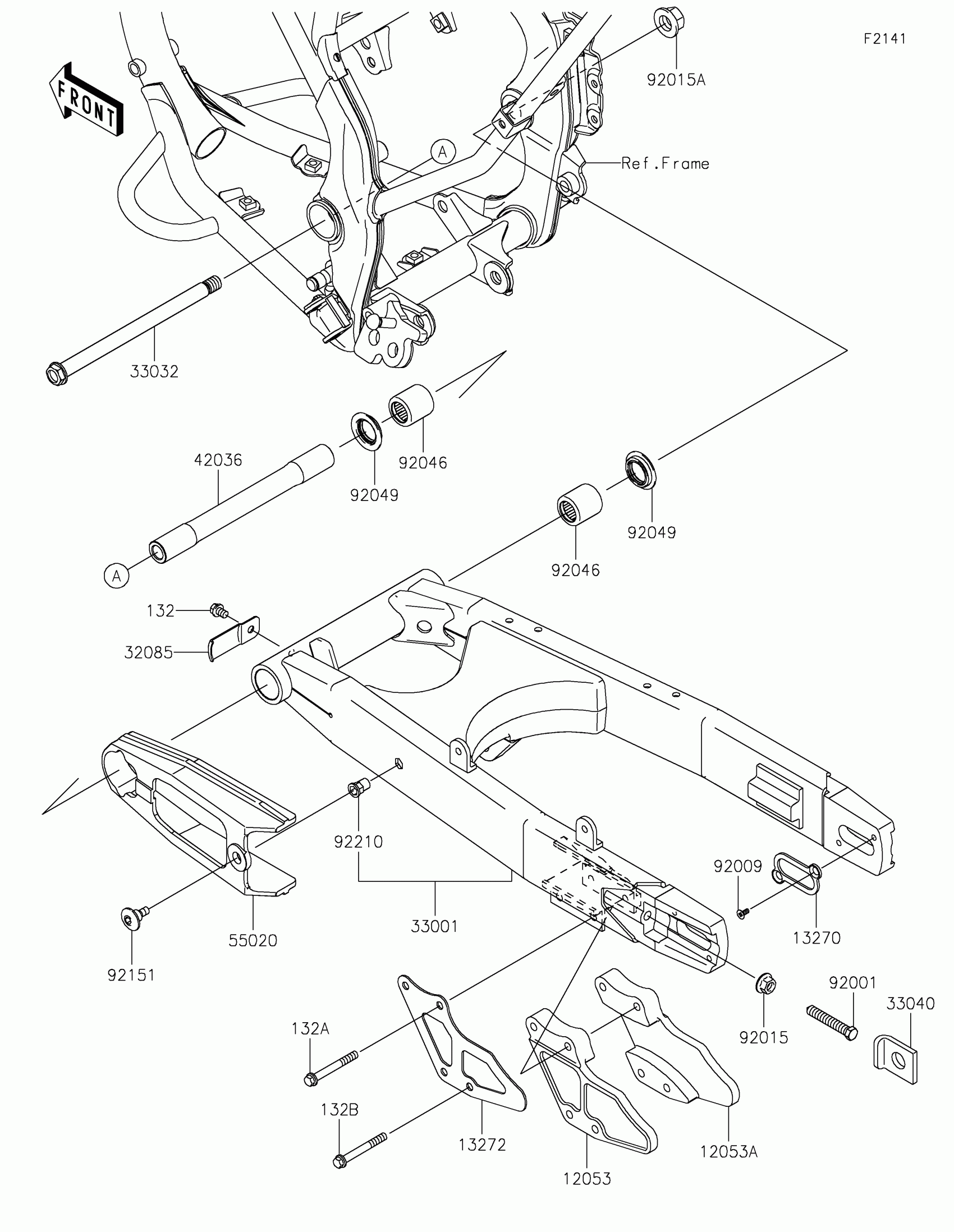

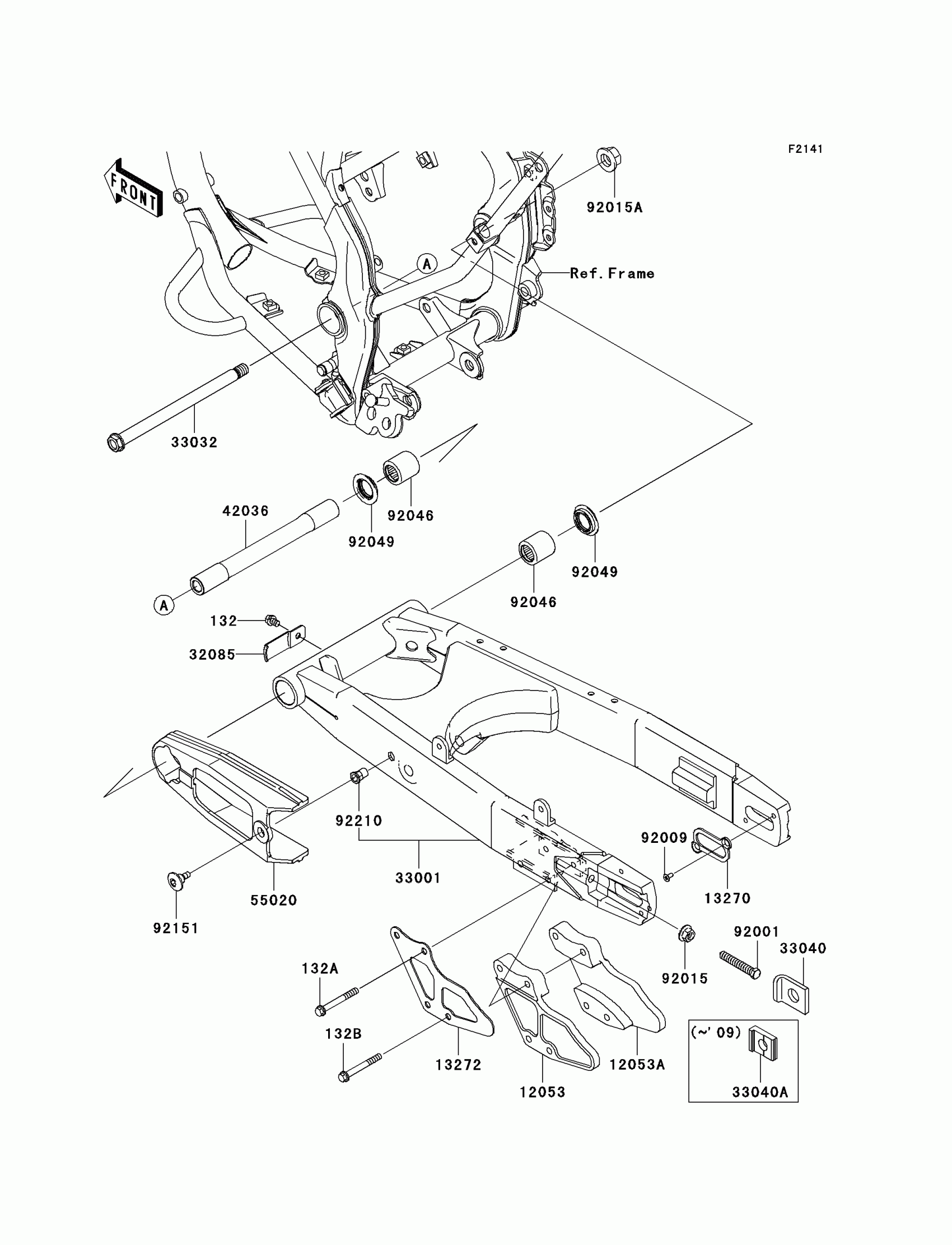

2011 Kawasaki KLX®140 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.05

In stock

132A

1

$3.53

In stock

132B

1

$2.93

In stock

12053

GUIDE-CHAIN

12053-0116

1

$21.71

In stock

12053A

GUIDE-CHAIN

12053-0118

1

$21.90

In stock

13270

PLATE

13270-1899

1
Out of stock

13272

PLATE,CHAIN GUIDE

13272-0406

1

$17.39

In stock

32085

STOPPER

32085-0138

1

$7.61

In stock

33001

ARM-COMP-SWING

33001-0151

1

$558.70

In stock

33032

1

$31.36

In stock

33040

ADJUSTER-CHAIN

33040-0032

1

$5.41

In stock

42036

1

$47.69

In stock

55020

GUARD,CHAIN

55020-0336

1

$25.24

In stock

92001

BOLT,8X46

92001-1179

1

$14.80

In stock

92009

SCREW,5X10

92009-1828

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1

$6.11

In stock

92210

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
