2026 Kawasaki KLX®110R Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

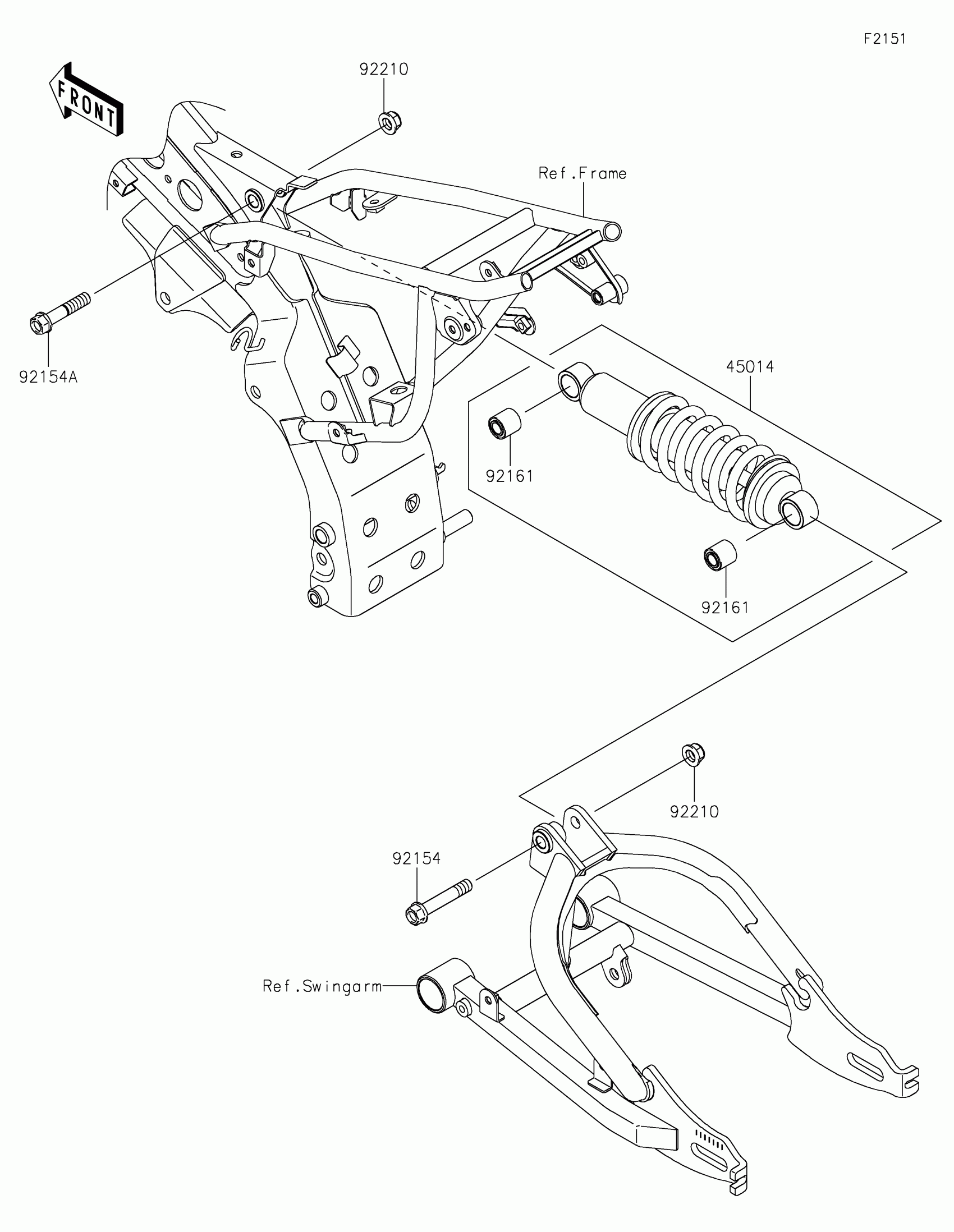

2026 Kawasaki KLX®110R Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,BLACK

45014-0675-10

1

$281.93

In stock

92154

BOLT,FLANGED,10X57

92154-2854

1

$8.37

In stock

92154A

BOLT,FLANGED,10X50

92154-2855

1

$4.81

In stock

92161

1

$17.19

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
