Description

Price

11058

BRACKET,LEVER HOLDER

11058-2777

$15.85

13070

GUIDE,THROTTLE

13070-0083

$6.52

13280

HOLDER,BRAKE LEVER

13280-1414

$45.33

14091

COVER,THROTTLE CASE,UPP

14091-0873

$6.32

32099

CASE,THROTTLE,UPP

32099-0037

$17.79

32099A

CASE,THROTTLE,LWR

32099-0045

$15.11

46003

HANDLE,P.SILVER

46003-0175-458

$85.97

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0101-458

$20.16

46019

GRIP-ASSY,THROTTLE

46019-0023

$26.45

46075

GRIP,LH

46075-0072

$11.10

46091

HOUSING-ASSY-CONTROL,LH

46091-0226

$92.20

46092

LEVER-GRIP,BRAKE

46092-0590

$15.41

49006

BOOT,THROTTLE CASE

49006-0075

$10.24

49006A

BOOT,LEVER HOLDER

49006-1017

$14.12

59101

REEL,THROTTLE

59101-0005

$8.99

92015

NUT

92015-1829

$3.12

92154

BOLT,LEVER SET

92154-0329

$7.15

92154A

BOLT,CABLE ADJUSTER

92154-0330

$7.92

92154B

BOLT,FLANGED,8X30

92154-2873

$3.97

92172

SCREW,5X47

92172-1230

$2.00

92172A

SCREW,5X42

92172-1231

$2.00

92210

NUT

92210-0593

$7.92

214

SCREW-PAN+-,5X12

214AB0512

$2.27

214A

SCREW-PAN+-,5X18

214AB0518

$1.85

220

SCREW-PAN-CROS,5X14

220AA0514

$3.41

220A

SCREW-PAN-CROS,5X22

220AB0522

$0.89

221

SCREW-CSK-CROS,4X12

221AB0412

$1.89

311

NUT-HEX,5MM

311AB0500

$0.46

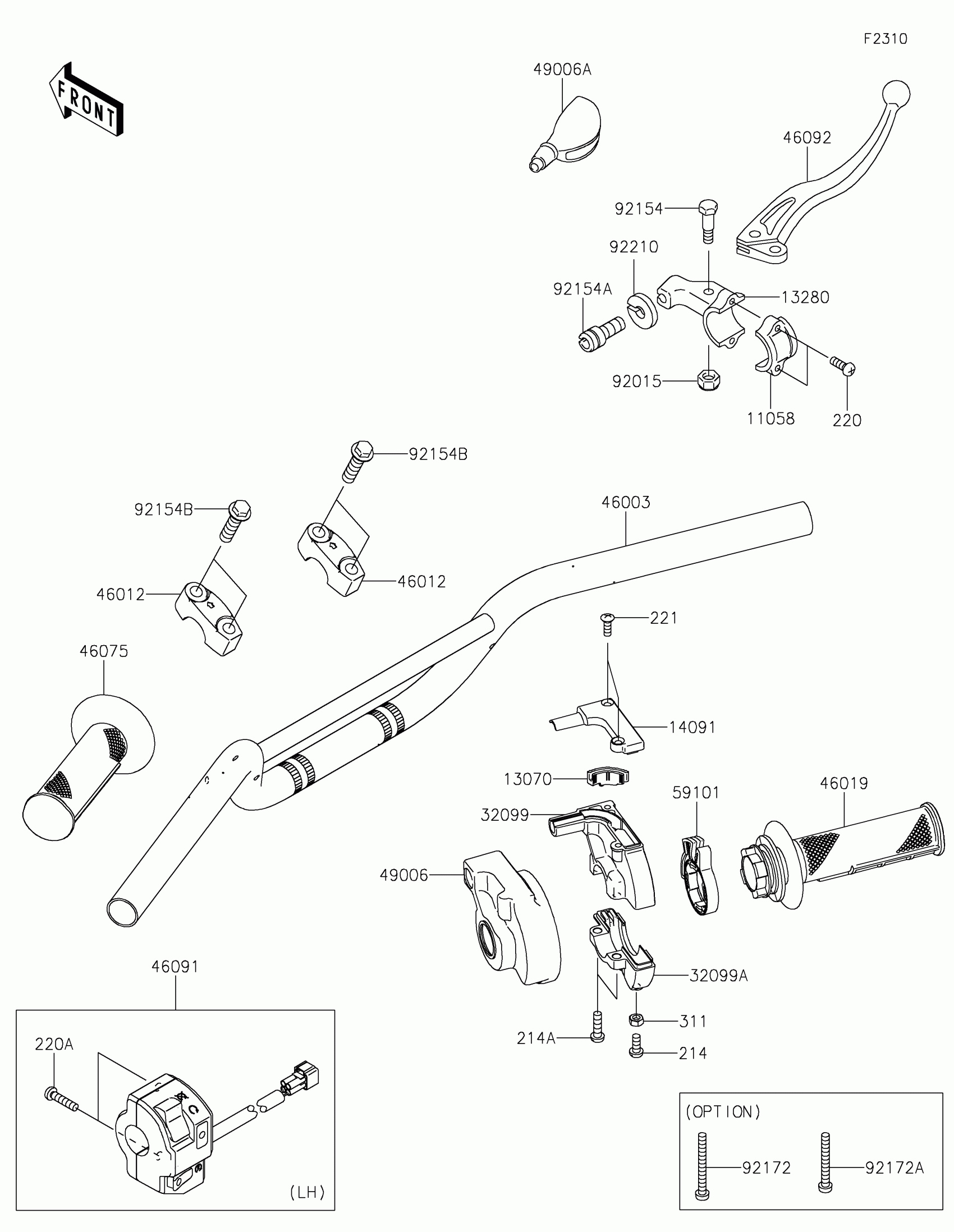

Kawasaki KLX®110R Handlebar Diagram
