2026 Kawasaki KLX®110R Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 2026 Kawasaki KLX®110R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

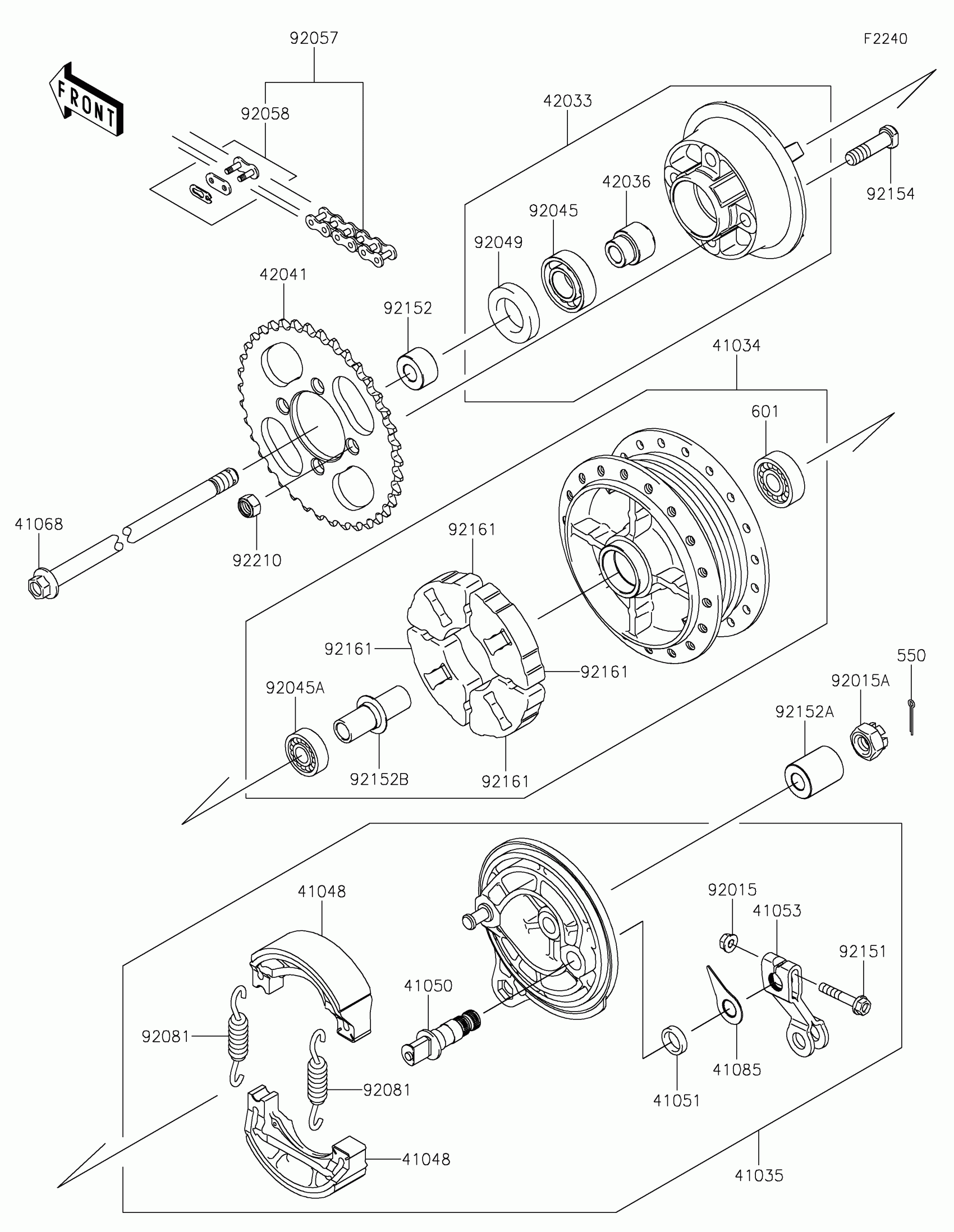

2026 Kawasaki KLX®110R Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

1

$71.92

In stock

41035

PANEL-ASSY-BRAKE,RR

41035-0084

1

$153.73

In stock

41048

SHOE-BRAKE

41048-1141

1

$20.10

In stock

41050

CAM-BRAKE

41050-1082

1

$6.39

In stock

41051

SEAL,BRAKE CAM

41051-001

1

$3.39

In stock

41053

LEVER-BRAKE CAM

41053-0021

1

$11.07

In stock

41068

AXLE,RR

41068-0016

1
Out of stock

41085

INDICATOR

41085-1085

1
Out of stock

42033

COUPLING-ASSY,RR HUB

42033-0598

1
Out of stock

42036

SLEEVE,RR HUB COUPLING,L=29

42036-1292

1
Out of stock

42041

SPROCKET-HUB,38T

42041-0082

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,CASTLE,12MM

92015-1870

1
Out of stock

92045

BEARING-BALL,#6004UG

92045-0717

1
Out of stock

92045A

BEARING-BALL,6201ZC3/5C

92045-0975

1
Out of stock

92049

SEAL-OIL,SC26X42X8

92049-1490

1
Out of stock

92057

CHAIN,DRIVE,DID420D3X90L

92057-0890

1
Out of stock

92058

JOINT-CHAIN,DRIVE

92058-0086

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1766

1
Out of stock

92151

BOLT,FLANGED,6X34

92151-1209

1
Out of stock

92152

COLLAR,RR AXLE,LH,L=14.8

92152-1405

1
Out of stock

92152A

COLLAR,RR AXLE,RH,L=32

92152-1406

1
Out of stock

92152B

COLLAR,REAR BRAKE DRUM,L=58

92152-1409

1
Out of stock

92154

BOLT,10X36

92154-2786

1
Out of stock

92161

DAMPER,RR HUB SHOCK

92161-0084

1
Out of stock

92210

NUT,LOCK,10MM

92210-1351

1
Out of stock

550

PIN-COTTER,2.5X30

550S2530

1
Out of stock

601

BEARING-BALL,#6301UG

601B6301UG

1
Out of stock
