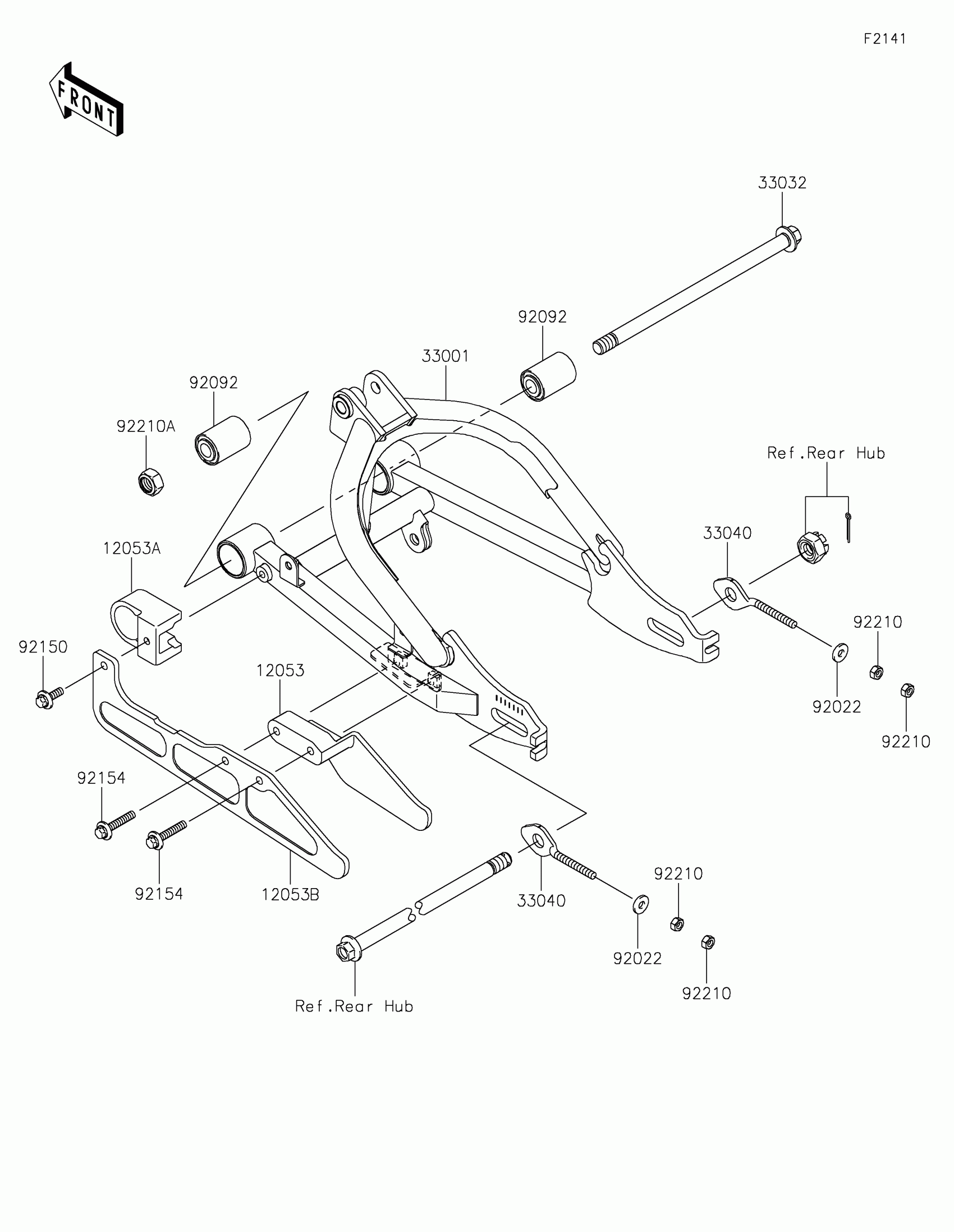

Kawasaki KLX®110R Swingarm Diagram

Description

Price

12053

GUIDE-CHAIN,RR,INSIDE

12053-0165

$10.63

12053A

GUIDE-CHAIN,FR

12053-1459

$11.07

12053B

GUIDE-CHAIN,RR,OUTSIDE

12053-1460

$12.34

33001

ARM-COMP-SWING,P.SILVER

33001-0200-458

$271.18

33032

SHAFT-SWING ARM

33032-0035

$28.82

33040

ADJUSTER-CHAIN

33040-1006

$7.72

92022

WASHER,6.5X16X2

92022-1565

$3.04

92092

BUSHING-RUBBER

92092-1088

$5.87

92150

BOLT,6X20

92150-1339

$3.38

92154

BOLT,FLANGED,6X35

92154-7216

$3.85

92210

NUT,6MM

92210-1972

$2.05

92210A

NUT,12MM

92210-1975

$7.20
