2026 Kawasaki KLX®110R L Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2026 Kawasaki KLX®110R L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

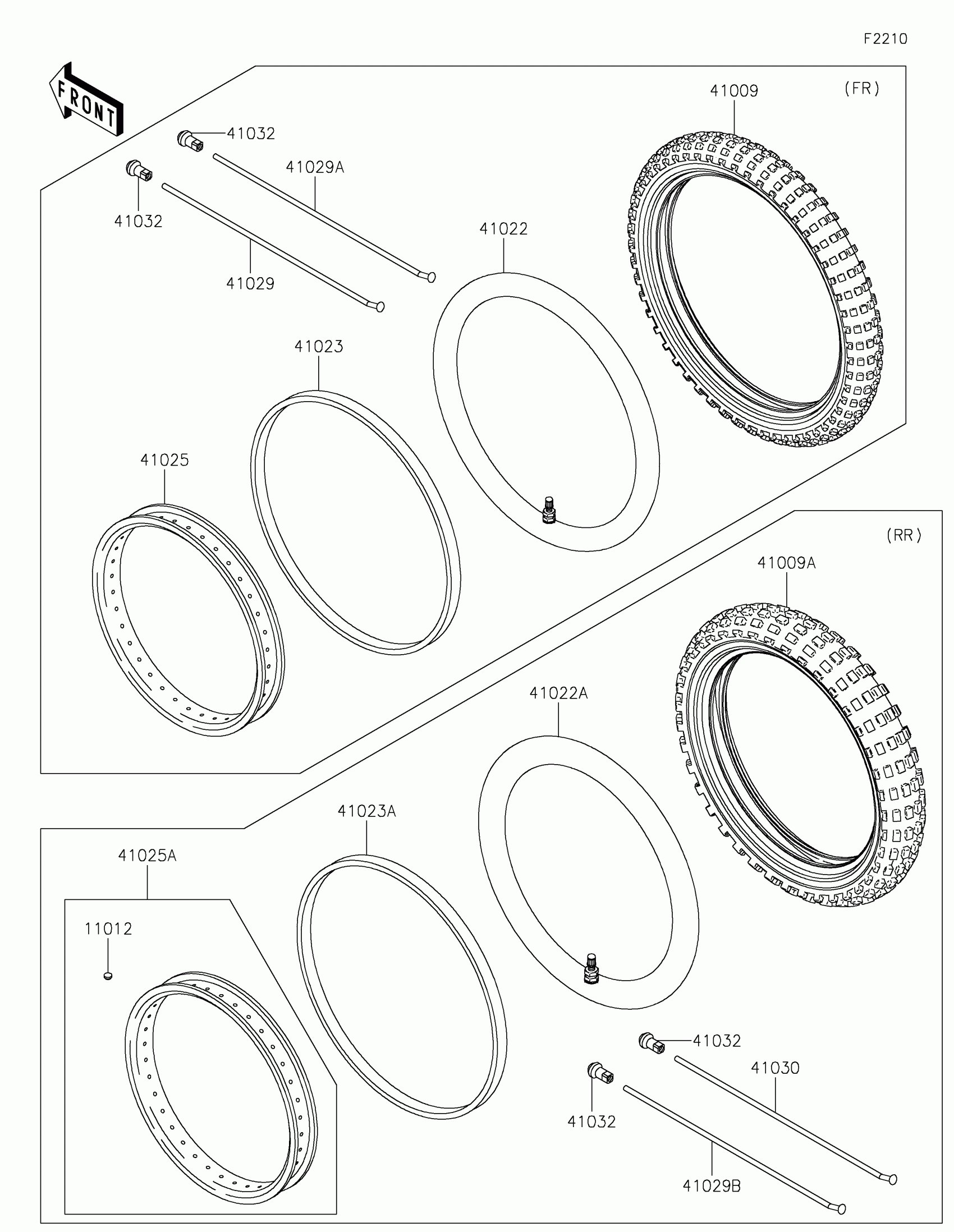

2026 Kawasaki KLX®110R L Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,BEAD STOPPER

11012-1916

1
Out of stock

41009

TIRE,2.50-14 4PR,GS-45F(IRC)

41009-0877

1
Out of stock

41009A

TIRE,3.00-12 4PR,GS-45F(IRC)

41009-0878

1
Out of stock

41022

TUBE-TIRE,2.50-14(IRC)

41022-0131

1
Out of stock

41022A

TUBE-TIRE,3.00-12(IRC)

41022-0132

1
Out of stock

41023

BAND-RIM,2.50-14(IRC)

41023-0021

1
Out of stock

41023A

BAND-RIM,3.00-12(IRC)

41023-0022

1
Out of stock

41025

RIM,FR,1.40X14

41025-0430

1
Out of stock

41025A

RIM,RR,1.60X12

41025-0431

1
Out of stock

41029

SPOKE-INNER,FR,144MMX118D

41029-1067

1
Out of stock

41029A

SPOKE-INNER,FR,133.5MMX97D

41029-1068

1
Out of stock

41029B

SPOKE-INNER,RR,98MMX105.5D

41029-1329

1
Out of stock

41030

SPOKE-OUTER,RR,98MMX77.5D

41030-1182

1
Out of stock

41032

NIPPLE-SPOKE

41032-0009

1
Out of stock
