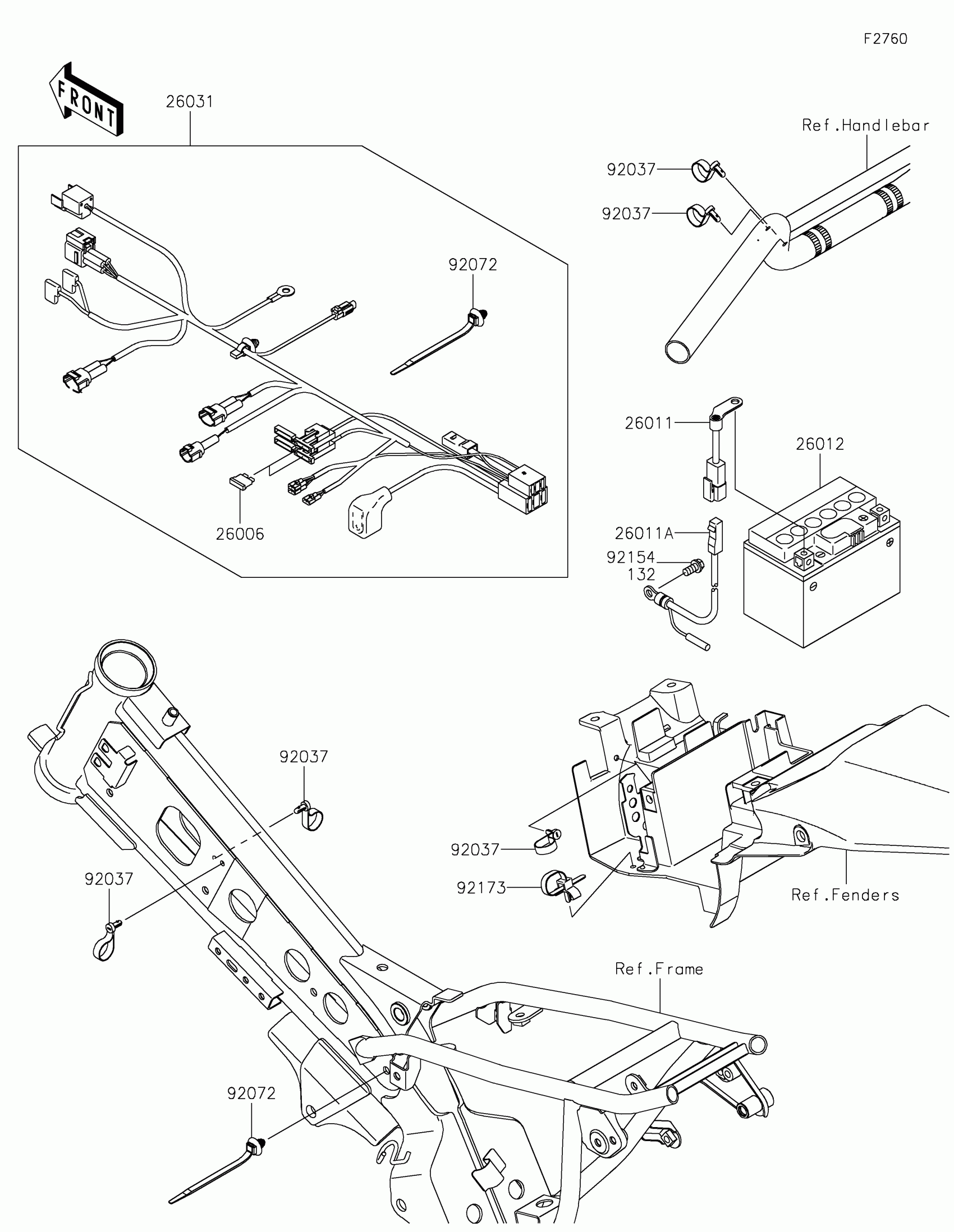

Kawasaki KLX®110R L Chassis Electrical Equipment Diagram

#

Description
Price

26006

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26011

WIRE-LEAD

26011-0245

$20.81

26011A

WIRE-LEAD

26011-0289

$35.81

26012

BATTERY,FTH4L-BS,12V 3AH

26012-0984

$167.39

26031

HARNESS,MAIN

26031-1106

$151.78

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92154

BOLT,FLANGED,6X12

92154-2753

$2.20

92173

CLAMP

92173-1512

$4.66
