2014 Kawasaki KLX®110L Starter Motor Diagram

← All diagrams

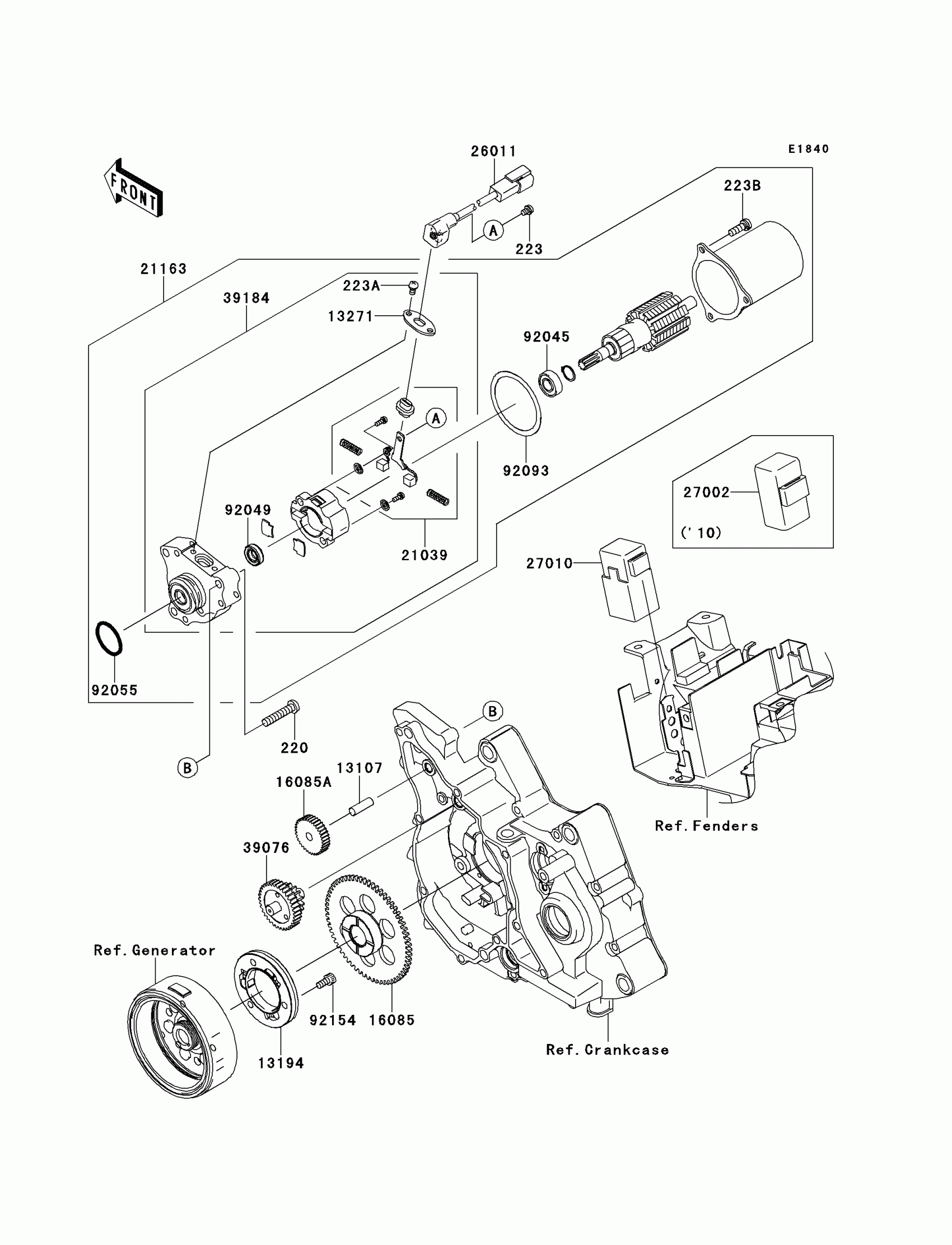

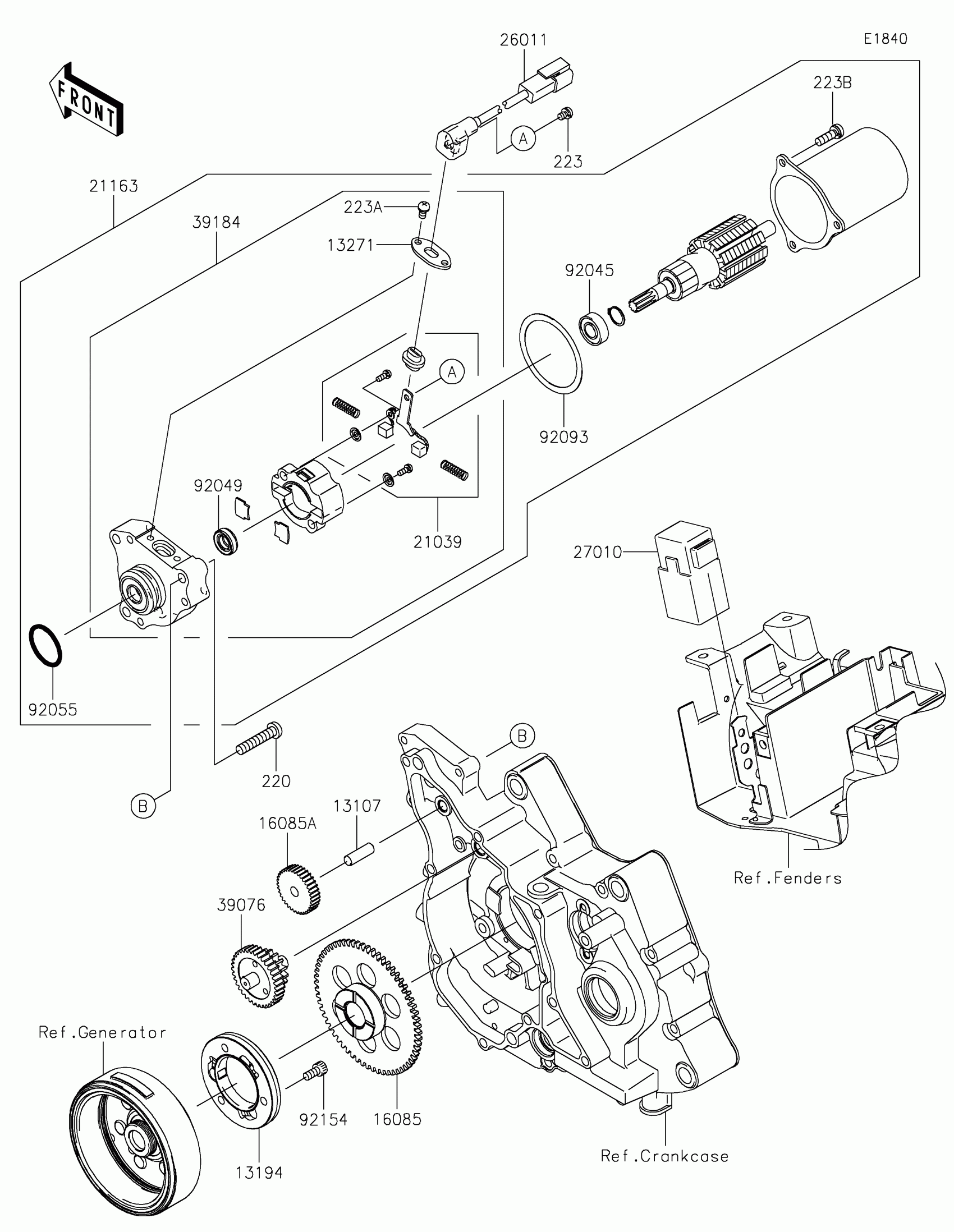

Find the part on the Starter Motor diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$3.69

In stock

223

1

$2.93

In stock

223A

1

$1.17

In stock

223B

1

$4.90

In stock

13107

SHAFT,8X25

13107-1142

1

$7.56

In stock

13194

CLUTCH-ONEWAY

13194-0013

1

$106.27

In stock

13271

PLATE

13271-0674

1
Out of stock

16085

GEAR

16085-0136

1

$112.09

In stock

16085A

GEAR,IDLE,45T

16085-0593

1

$54.83

In stock

21039

1

$20.85

In stock

21163

STARTER-ELECTRIC

21163-0049

1

$273.84

In stock

26011

WIRE-LEAD

26011-0249

1

$29.34

In stock

27010

SWITCH

27010-0085

1

$51.18

In stock

39076

LIMITER

39076-0022

1

$96.42

In stock

39184

BRACKET-ASSY

39184-0014

1

$78.60

In stock

92045

1

$12.05

In stock

92049

SEAL-OIL,STARTER MOTOR

92049-1465

1
Out of stock

92055

RING-O

92055-1276

1

$7.86

In stock

92093

SEAL,STARTER MOTOR

92093-1079

1

$3.94

In stock

92154

BOLT

92154-0325

1

$2.58

In stock
