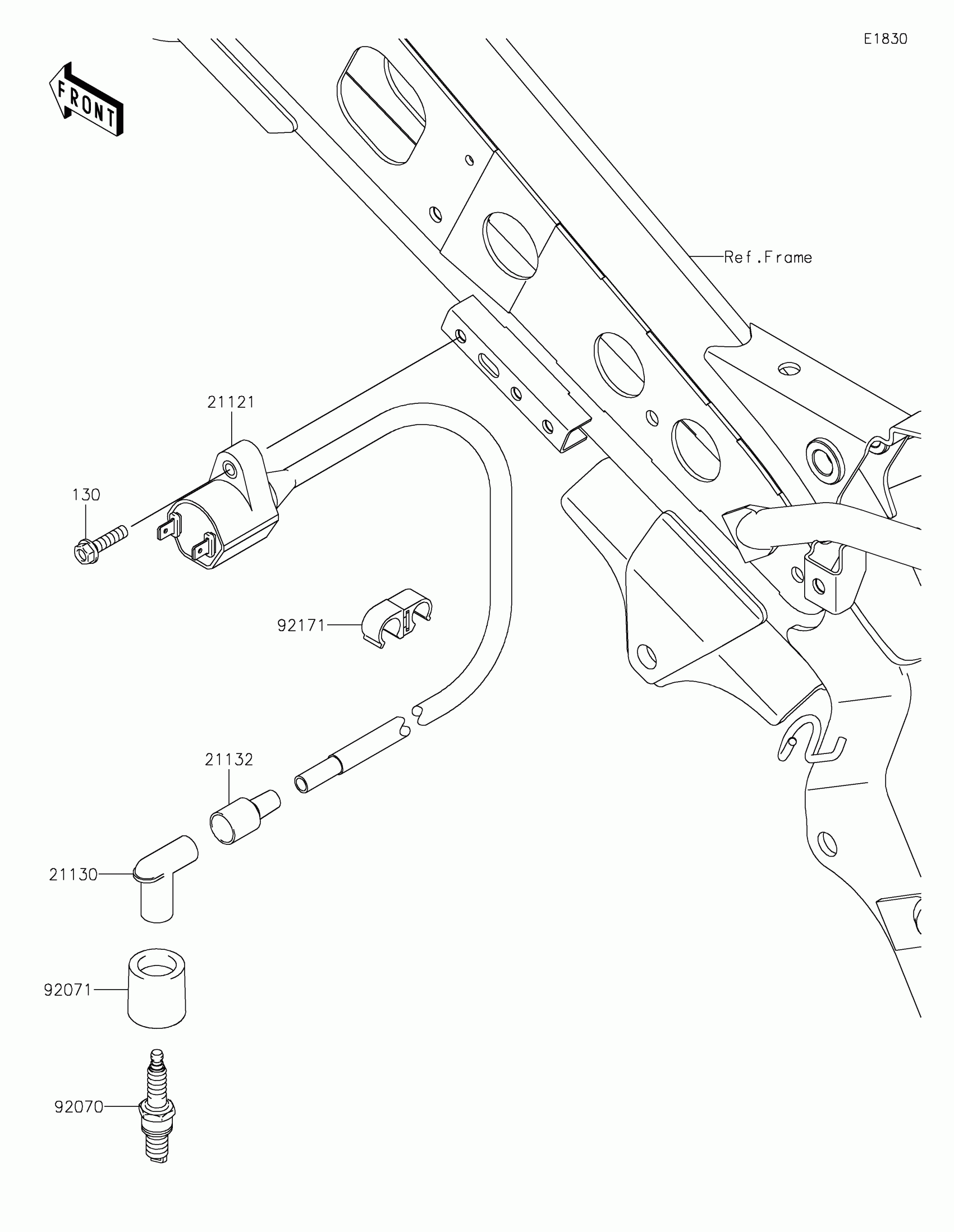

2014 Kawasaki KLX®110L Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

21121

COIL-IGNITION

21121-1311

1

$113.84

In stock

21130

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

21132

1

$3.39

In stock

92070

1

$2.92

In stock

92071

GROMMET,PLUG CAP

92071-1184

1

$5.37

In stock

92171

CLAMP

92171-1487

1

$2.29

In stock
