2014 Kawasaki KLX®110L Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

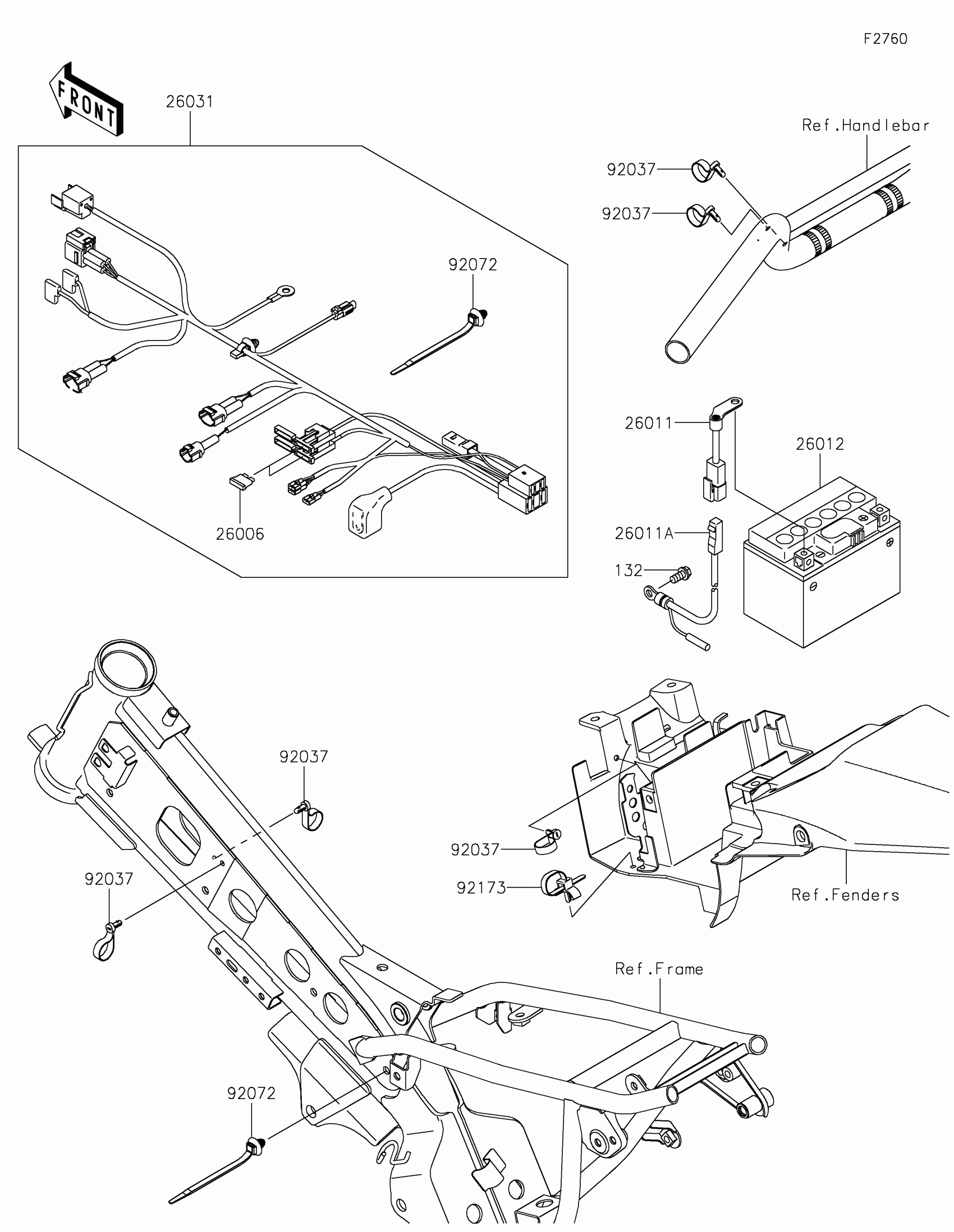

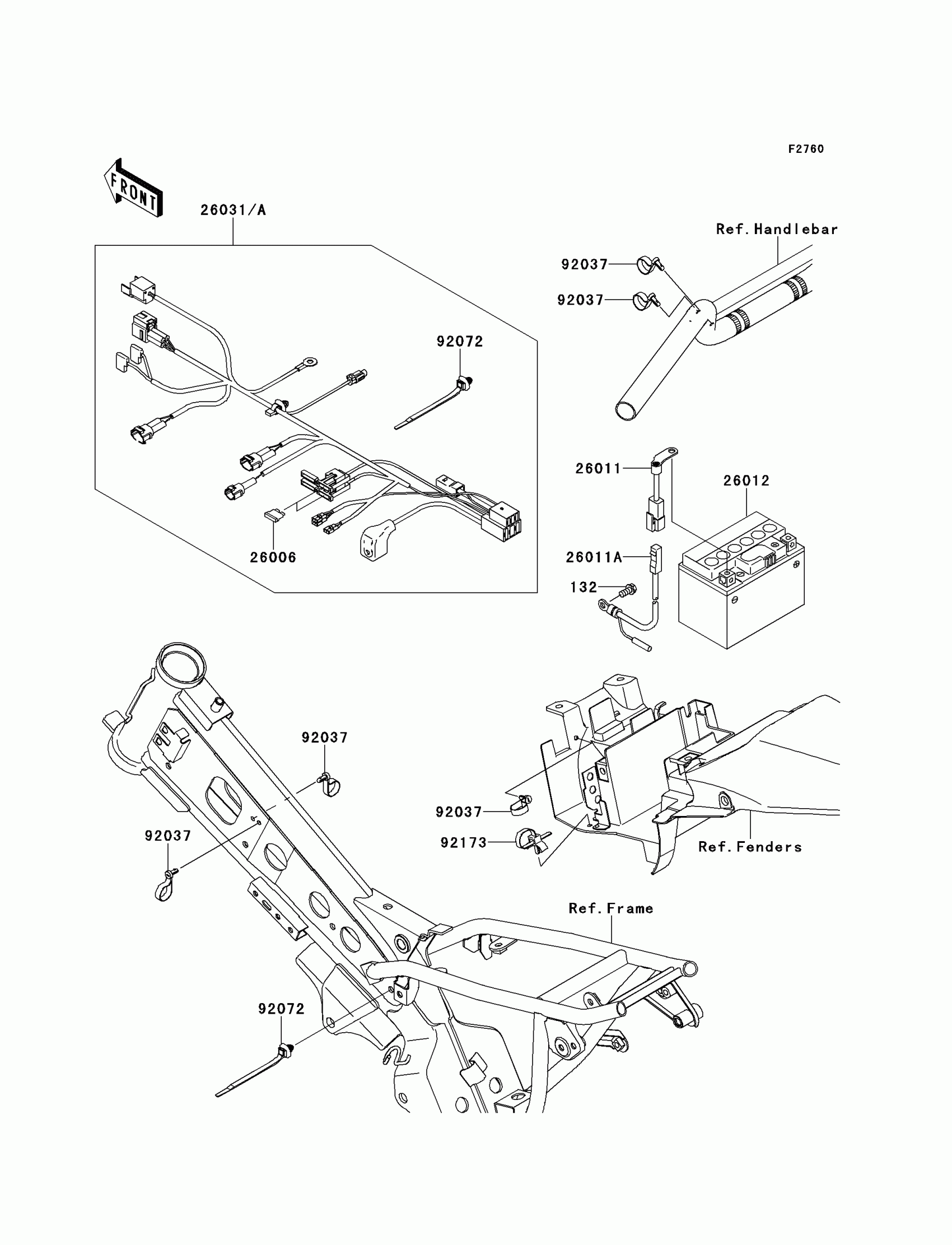

2014 Kawasaki KLX®110L Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26011

WIRE-LEAD

26011-0245

1

$20.81

In stock

26011A

WIRE-LEAD

26011-0289

1

$35.81

In stock

26012

1

$167.39

In stock

26031A

HARNESS,MAIN

26031-1106

1

$151.78

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92072

1

$2.97

In stock

92173

CLAMP

92173-0191

1

$4.85

In stock
