2009 Kawasaki KLX®110 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

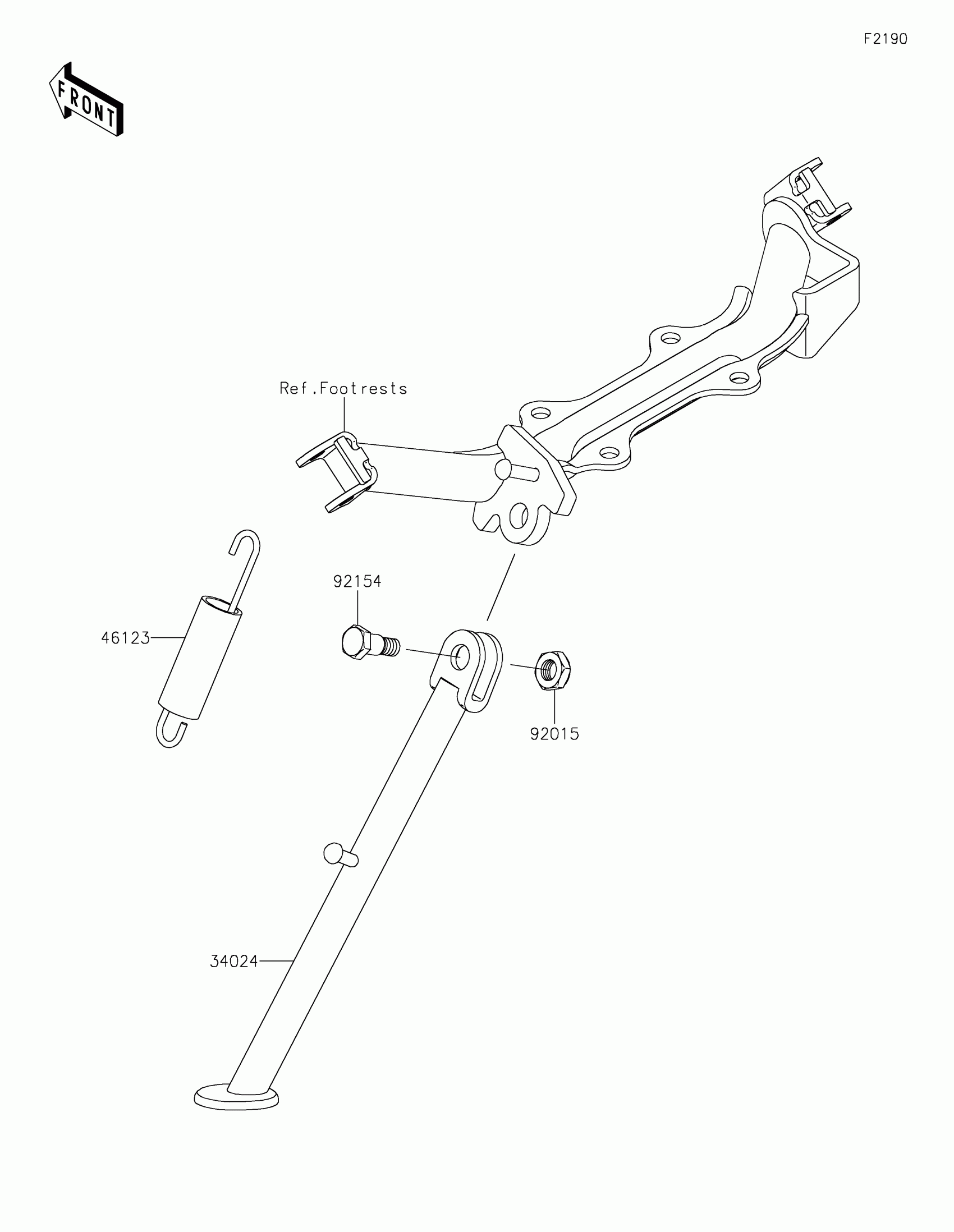

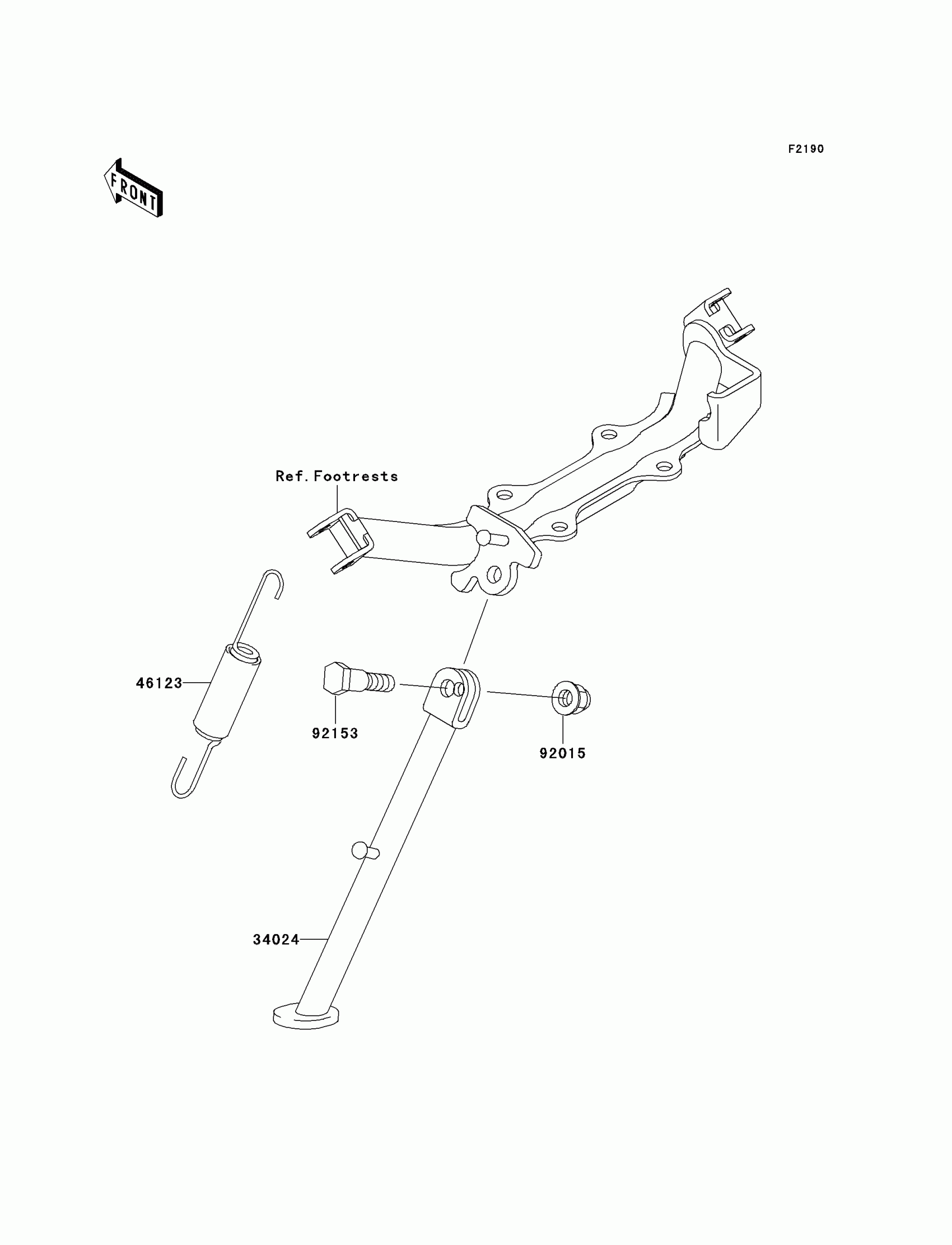

2009 Kawasaki KLX®110 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,P.SILVER

34024-1390-458

1

$84.99

In stock

46123

SPRING-COMP,STAND

46123-1059

1

$6.02

In stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92153

BOLT,8MM

92153-1097

1
Out of stock
