2009 Kawasaki KLX®110 Frame Diagram

← All diagrams

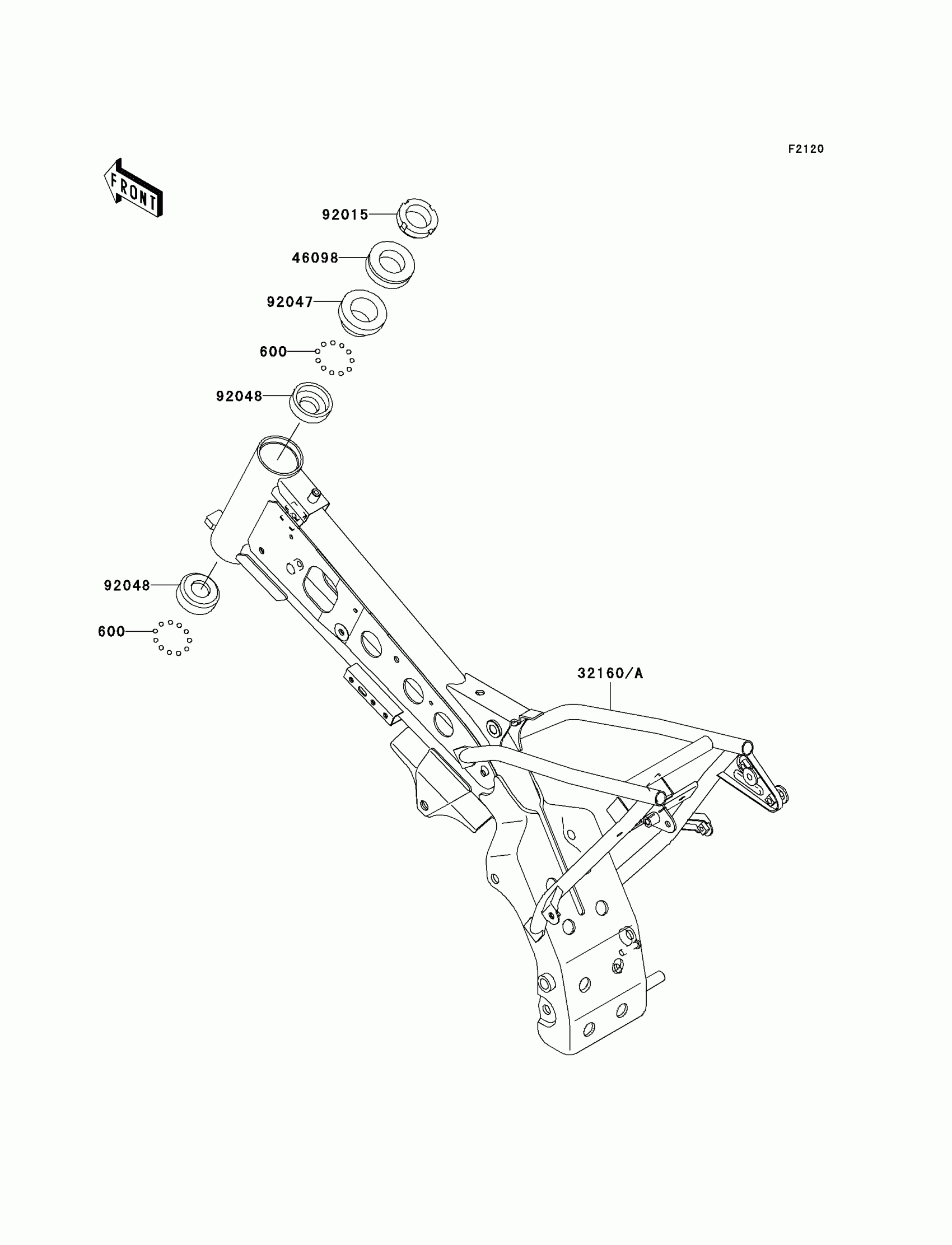

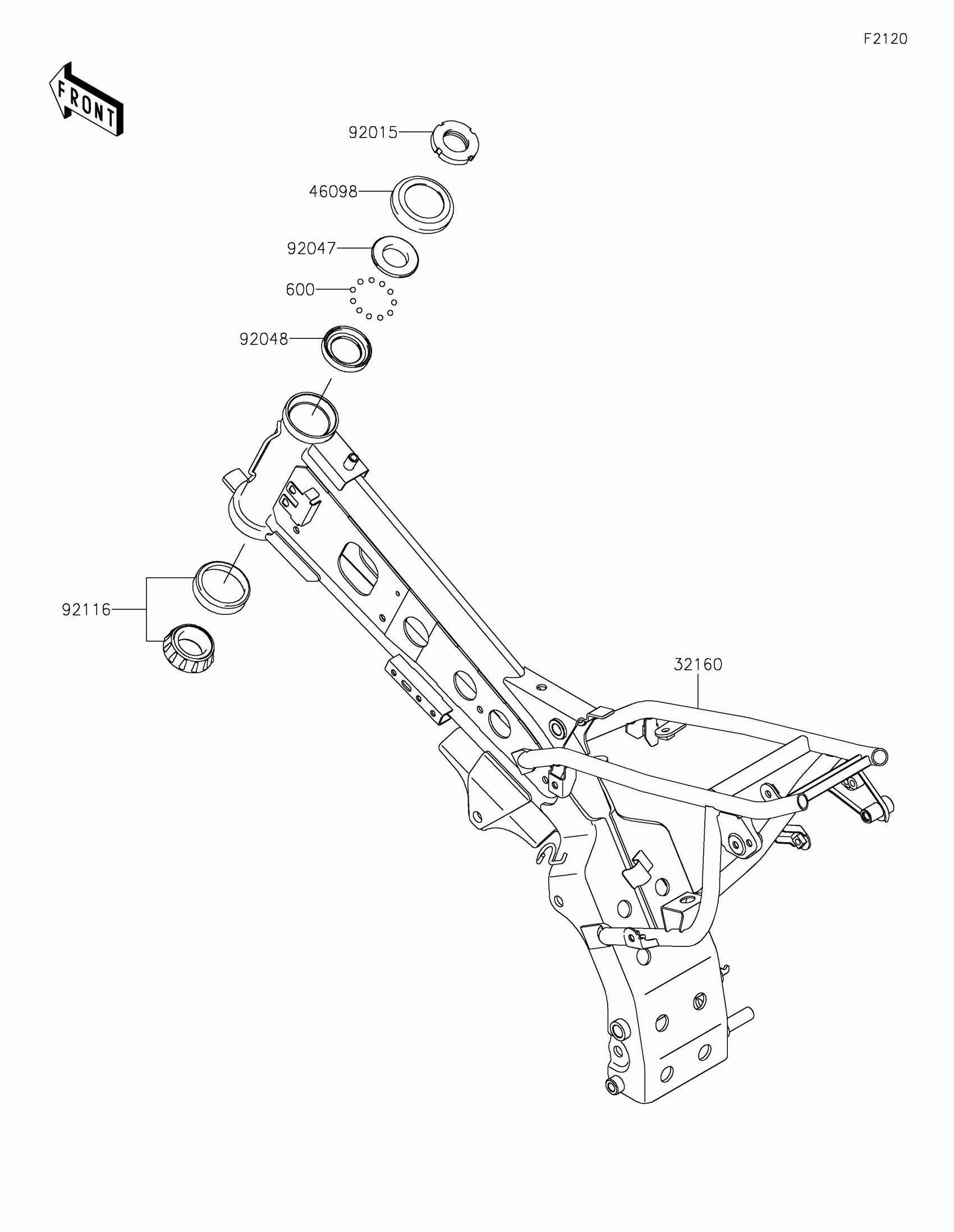

Find the part on the Frame diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

32160

FRAME-COMP,F.S.BLACK

32160-1773-18R

1

$898.72

In stock

46098

CAP,STEERING STEM

46098-018

1

$5.15

In stock

92015

NUT,STEERING LOCK,25MM

92015-1222

1
Out of stock

92047

RACE,STEERING STEM BEARING

92047-014

1
Out of stock

92048

RACE,STEERING STEM BEARING

92048-009

1
Out of stock
