2009 Kawasaki KLX®110 Fenders Diagram

← All diagrams

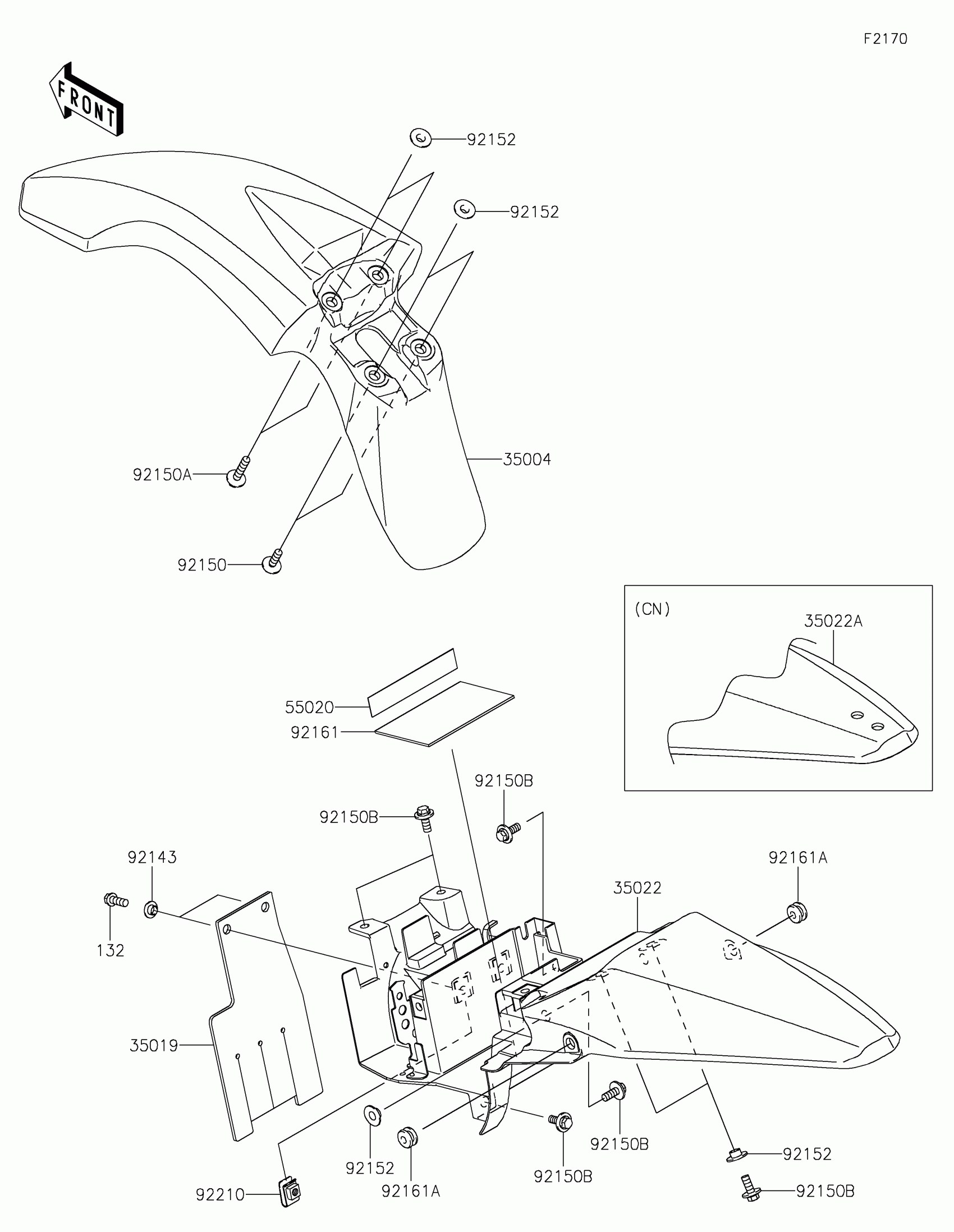

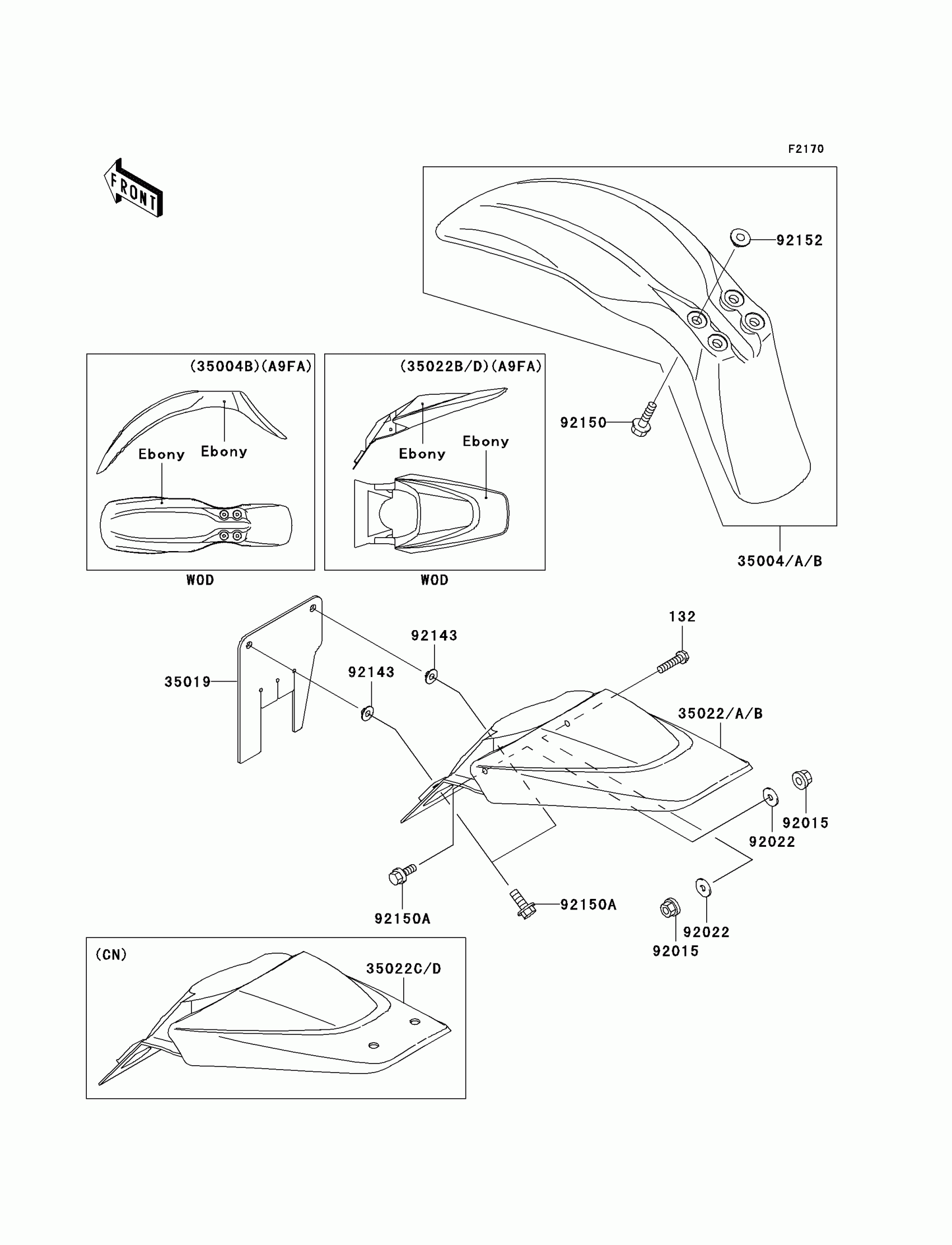

Find the part on the Fenders diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$2.29

In stock

35004B

FENDER-FRONT,EBONY

35004-1457-6C

1

$49.47

In stock

35019

FLAP

35019-1399

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92152

COLLAR

92152-1255

1

$3.29

In stock

35022B

FENDER-COMP-REAR,EBONY

35022-1342-6C

1

$65.25

In stock

35022D

FENDER-COMP-REAR,EBONY

35022-1364-6C

1
Out of stock
← Decals Footrests →
