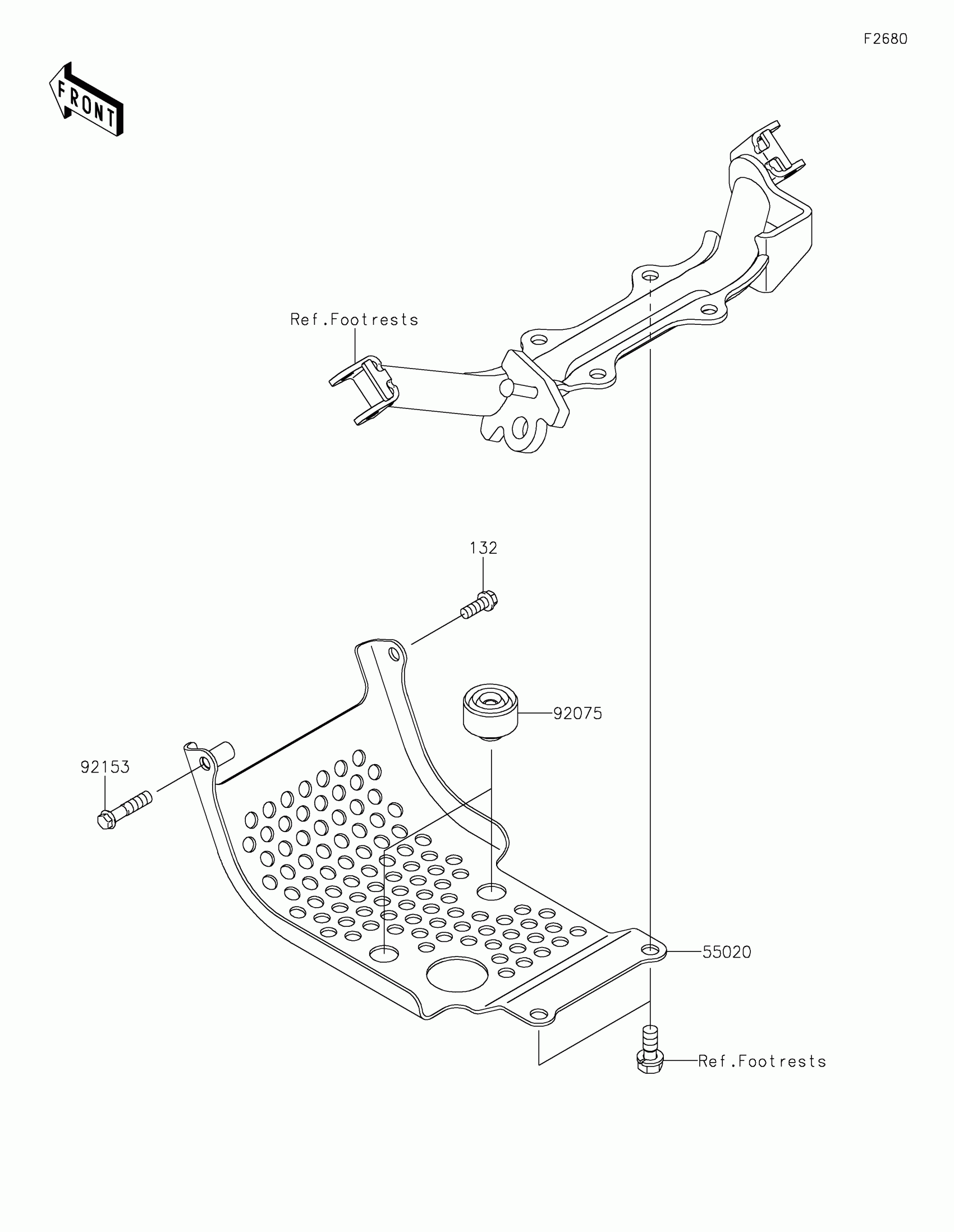

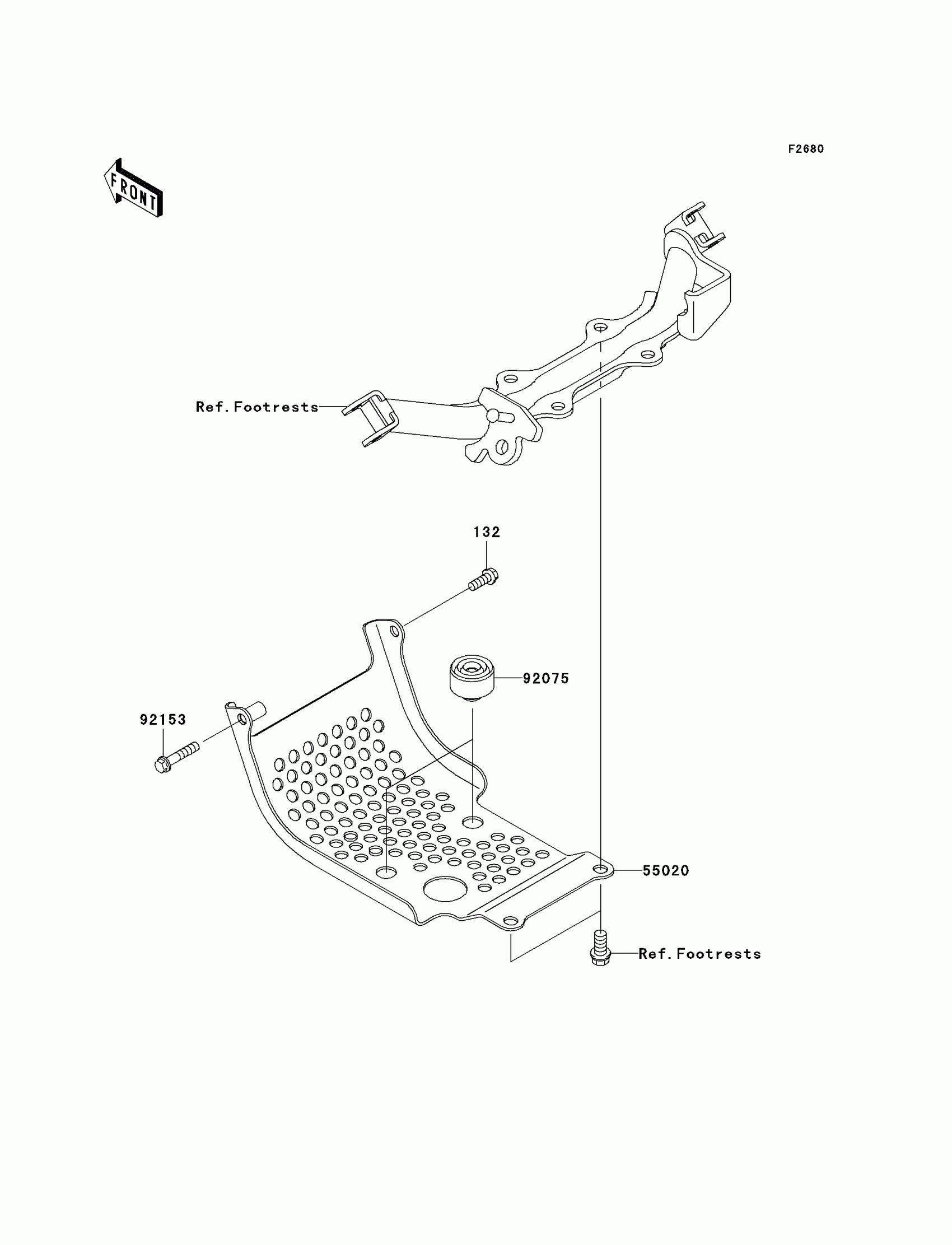

2009 Kawasaki KLX®110 Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.28

In stock

55020

GUARD,ENGINE

55020-1784

1

$71.85

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92153

BOLT,FLANGED,6X30

92153-1187

1
Out of stock
