2009 Kawasaki KLX®110 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

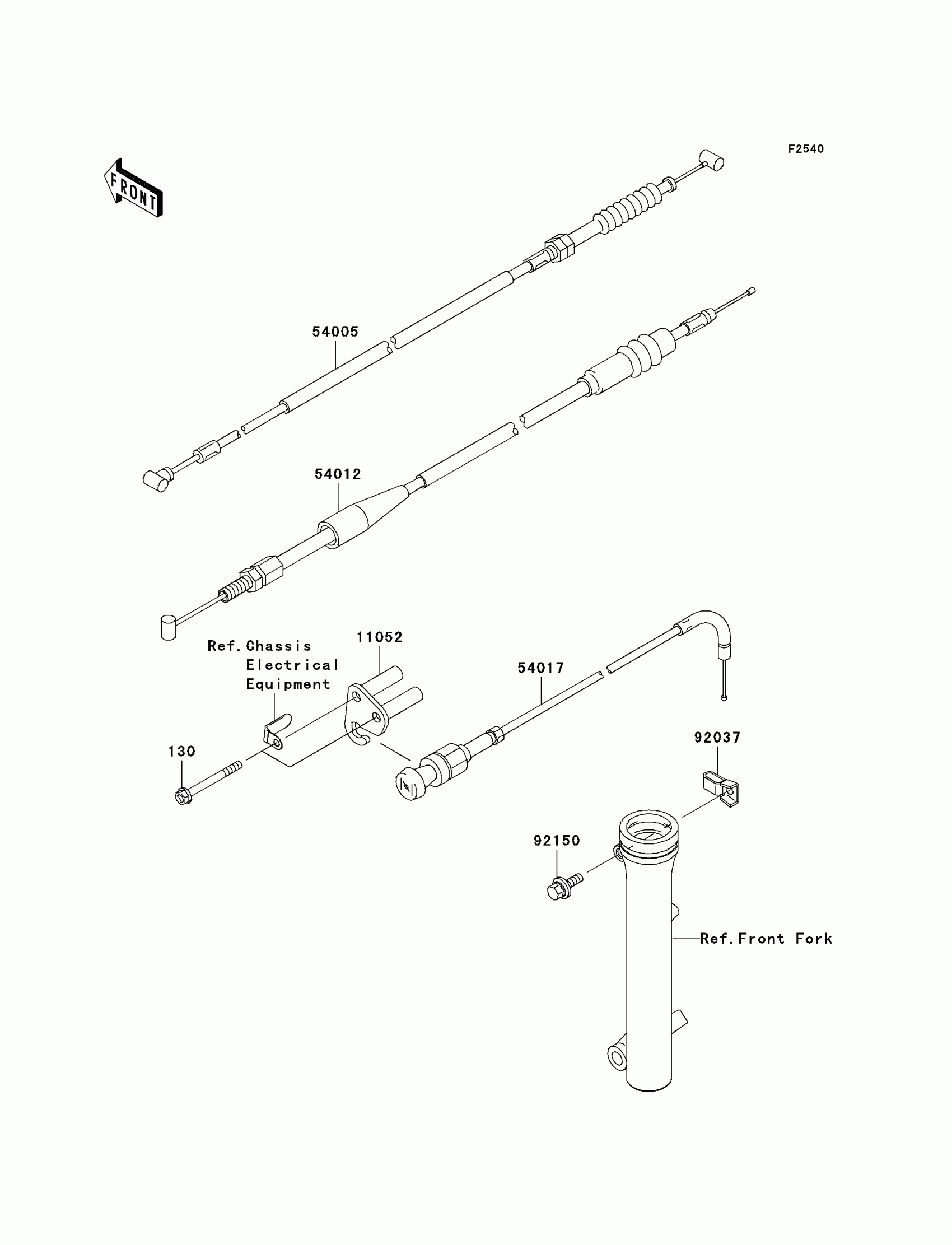

2009 Kawasaki KLX®110 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X50

130AA0550

1

$4.42

In stock

11052

BRACKET,STARTER

11052-1625

1

$17.31

In stock

54005

CABLE-BRAKE

54005-1214

1

$38.02

In stock

54012

CABLE-THROTTLE

54012-0100

1
Out of stock

54017

CABLE-STARTER

54017-1218

1

$20.55

In stock

92037

CLAMP,BRAKE CABLE

92037-1353

1

$11.22

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock
