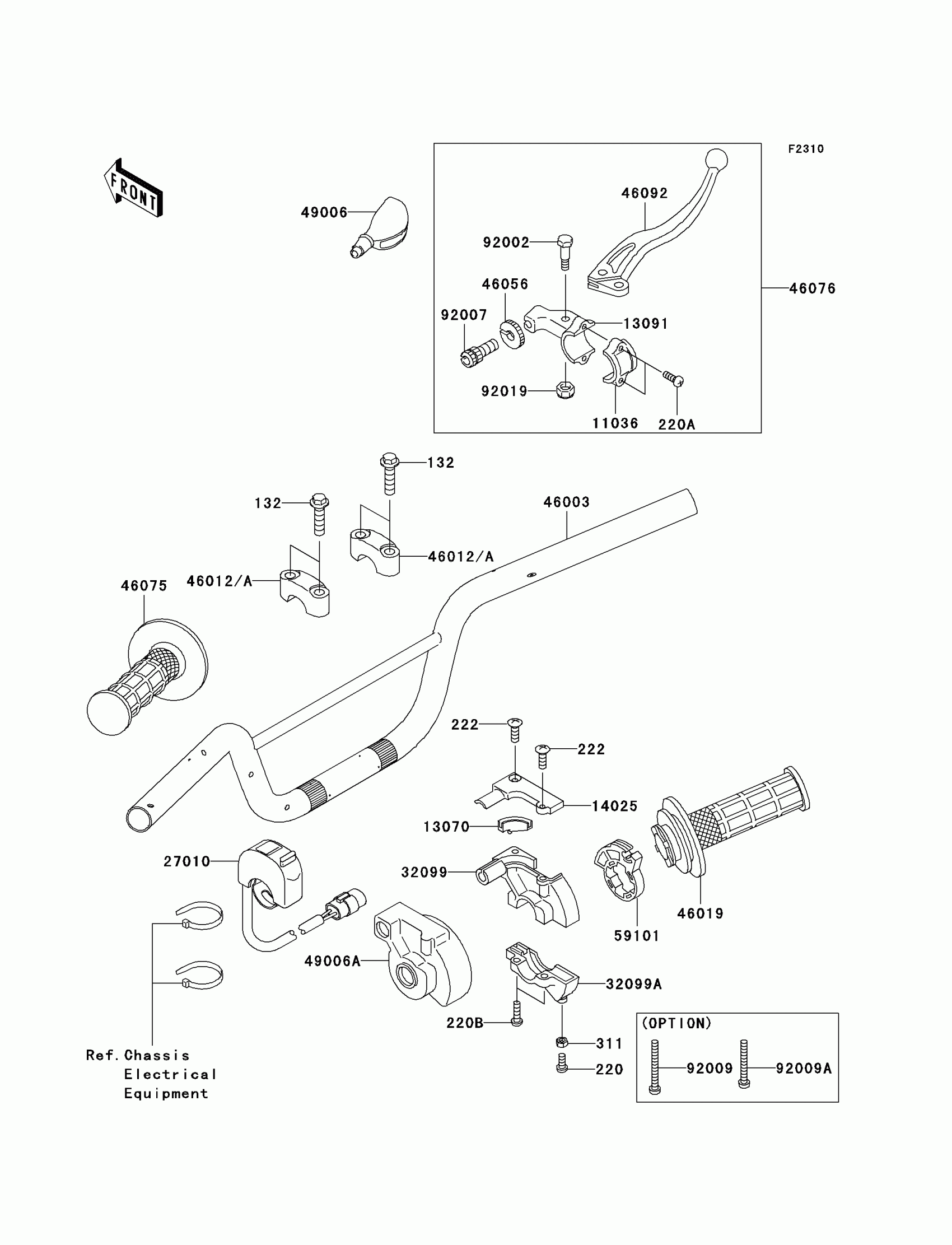

Find the part on the Handlebar diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

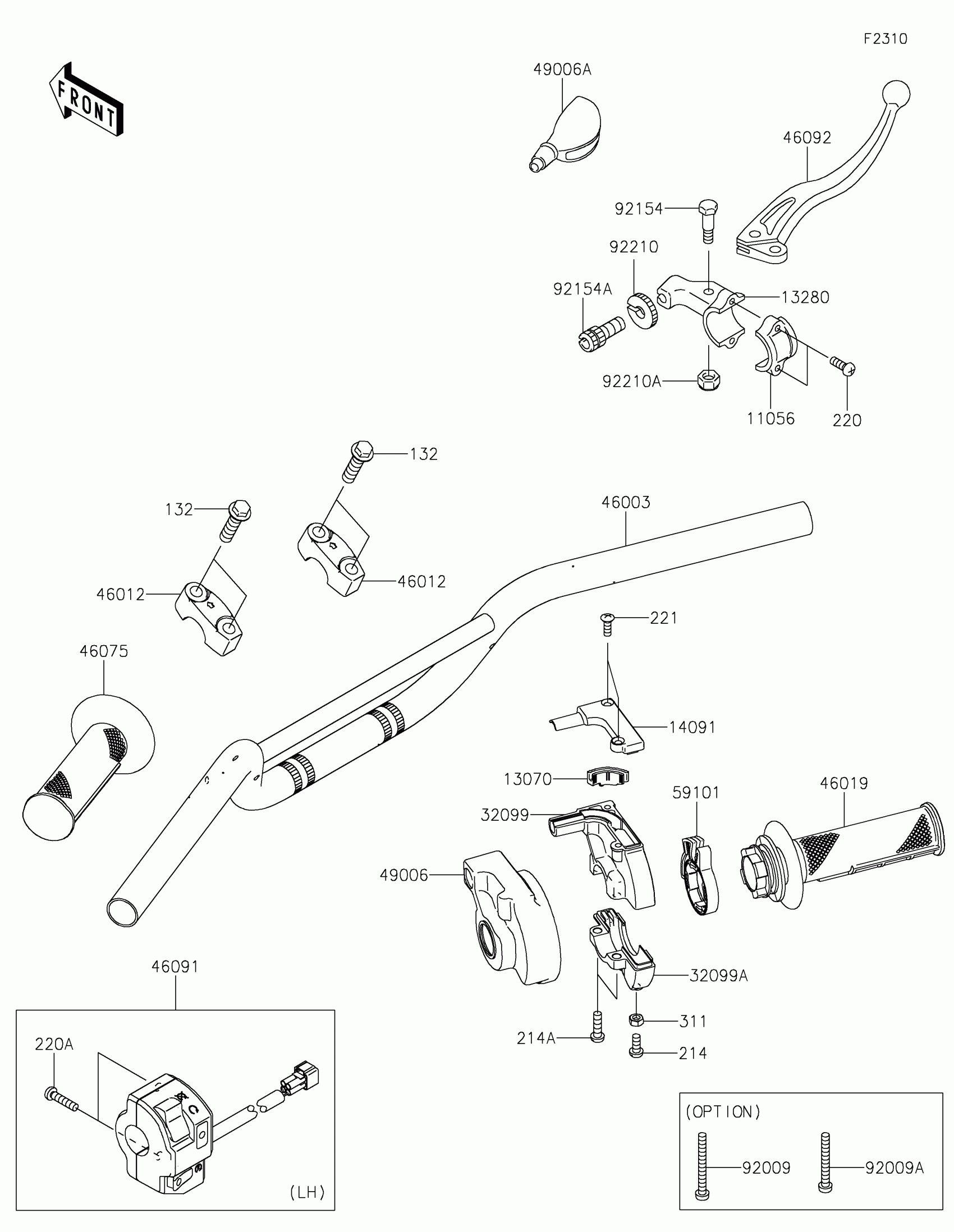

2009 Kawasaki KLX®110 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.53

In stock

220

1

$3.70

In stock

220A

1

$1.54

In stock

220B

1

$2.93

In stock

222

1

$2.15

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock

11036

BRACKET-A,LEVER HOLDER

11036-1297

1
Out of stock

13070

1

$8.95

In stock

13091

HOLDER,BRAKE LEVER

13091-1135

1
Out of stock

14025

COVER,THROTTLE CASE UPP

14025-1646

1
Out of stock

27010

SWITCH,ENGINE STOP

27010-1332

1

$83.15

In stock

32099

CASE,THROTTLE UPP

32099-1036

1

$32.37

In stock

32099A

CASE,THROTTLE,LWR

32099-1220

1

$14.72

In stock

46003

HANDLE,P.SILVER

46003-0056-458

1

$94.12

In stock

46012

1

$29.58

In stock

46019

GRIP-ASSY,THROTTLE

46019-1054

1

$32.66

In stock

46056

NUT,CABLE ADJUST

46056-006

1

$8.71

In stock

46075

GRIP,LH

46075-1024

1

$23.37

In stock

46076

LEVER-ASSY-GRIP,RH

46076-1107

1
Out of stock

46092

LEVER-GRIP,BRAKE

46092-1048

1
Out of stock

49006

BOOT,LEVER HOLDER

49006-1017

1

$14.71

In stock

49006A

BOOT,THROTTLE CASE

49006-1097

1

$14.13

In stock

59101

REEL,THROTTLE

59101-1104

1

$18.17

In stock

92002

BOLT,LEVER SET

92002-1150

1

$7.49

In stock

92007

SCREW,CABLE ADJUST,7MM

92007-1143

1
Out of stock

92009

SCREW,5X47

92009-1989

1
Out of stock

92009A

SCREW,5X42

92009-1998

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock
