Description

Price

132

BOLT-FLANGED-SMALL,8X35

132BA0835

$3.78

461

WASHER-SPRING,10MM

461DA1000

$0.73

11012

CAP,RUBBER,FORK TOP

11012-1067

$5.66

11051

BRACKET,BRAKE HOSE GUIDE

11051-1892

$15.12

13070

GUIDE,BRAKE HOSE

13070-1349

$8.86

44005

PIPE-LEFT FORK OUTER,P.SILVER

44005-0039-458

$224.74

44006

PIPE-RIGHT FORK OUTER,P.SILVER

44006-0038-458

$224.74

44013

PIPE-FORK INNER

44013-0018

$205.15

44022

CYLINDER-FORK

44022-1346

$61.33

44024

CAP-OIL-LOCK

44024-1071

$19.97

44025

RING-FORK PISTON

44025-1061

$9.07

44026

SPRING-FRONT FORK

44026-0034

$50.29

44026A

SPRING-FRONT FORK,REBOUND

44026-060

$5.44

44029

SEAT-FORK SPRING

44029-022

$11.12

44037

HOLDER-FORK UNDER

44037-0016

$287.89

44039A

HOLDER-FORK UPPER

44039-0090

$300.13

44044

RING-SNAP

44044-023

$4.80

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.88

44046

RING-O

44046-025

$5.71

44071

DAMPER-ASSY,FORK,LH,P.SILVER

44071-0266-458

$452.76

44071A

DAMPER-ASSY,FORK,RH,P.SILVER

44071-0267-458

$452.76

92001

BOLT,FORK CYLINDER

92001-1464

$4.93

92015

NUT,STEERING STEM,22MM

92015-1653

$13.20

92022

WASHER,STEERING STEM

92022-1873

$5.93

92033

RING-SNAP,FORK OUTER TUBE

92033-1028

$4.14

92047

RACE,STEERING STEM BEARING

92047-013

$11.80

92049

SEAL-OIL,FORK OUTER TUBE

92049-1069

$15.43

92093

DUST SHIELD,FORK

92093-1054

$13.70

92151

BOLT,FLANGED,5X16

92151-1637

$3.69

92153

BOLT,10X35

92153-1199

$4.61

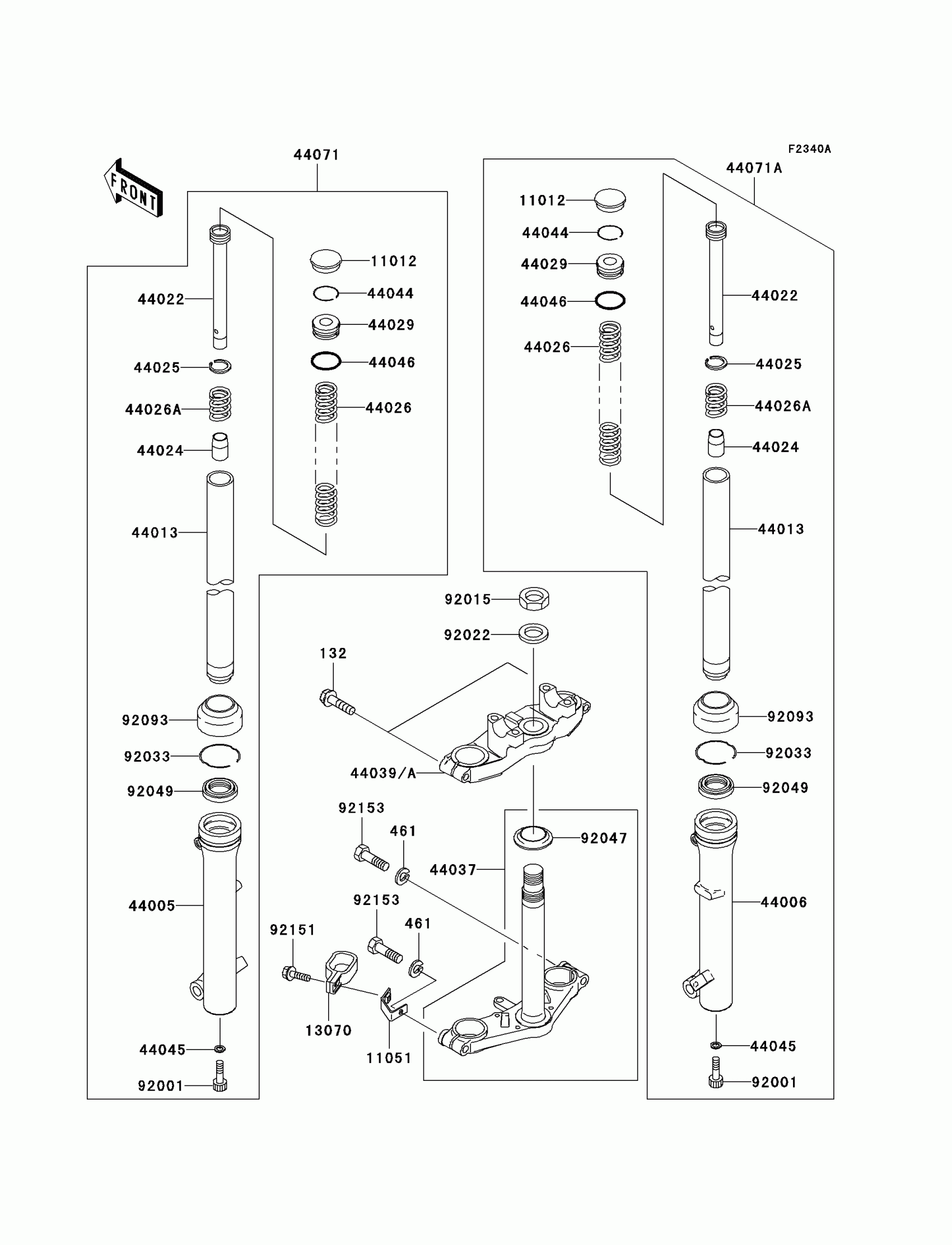

Kawasaki KLX®110 Front Fork(A7F-A9FA) Diagram
