1986 Kawasaki KLT110 Transmission Diagram

← All diagrams

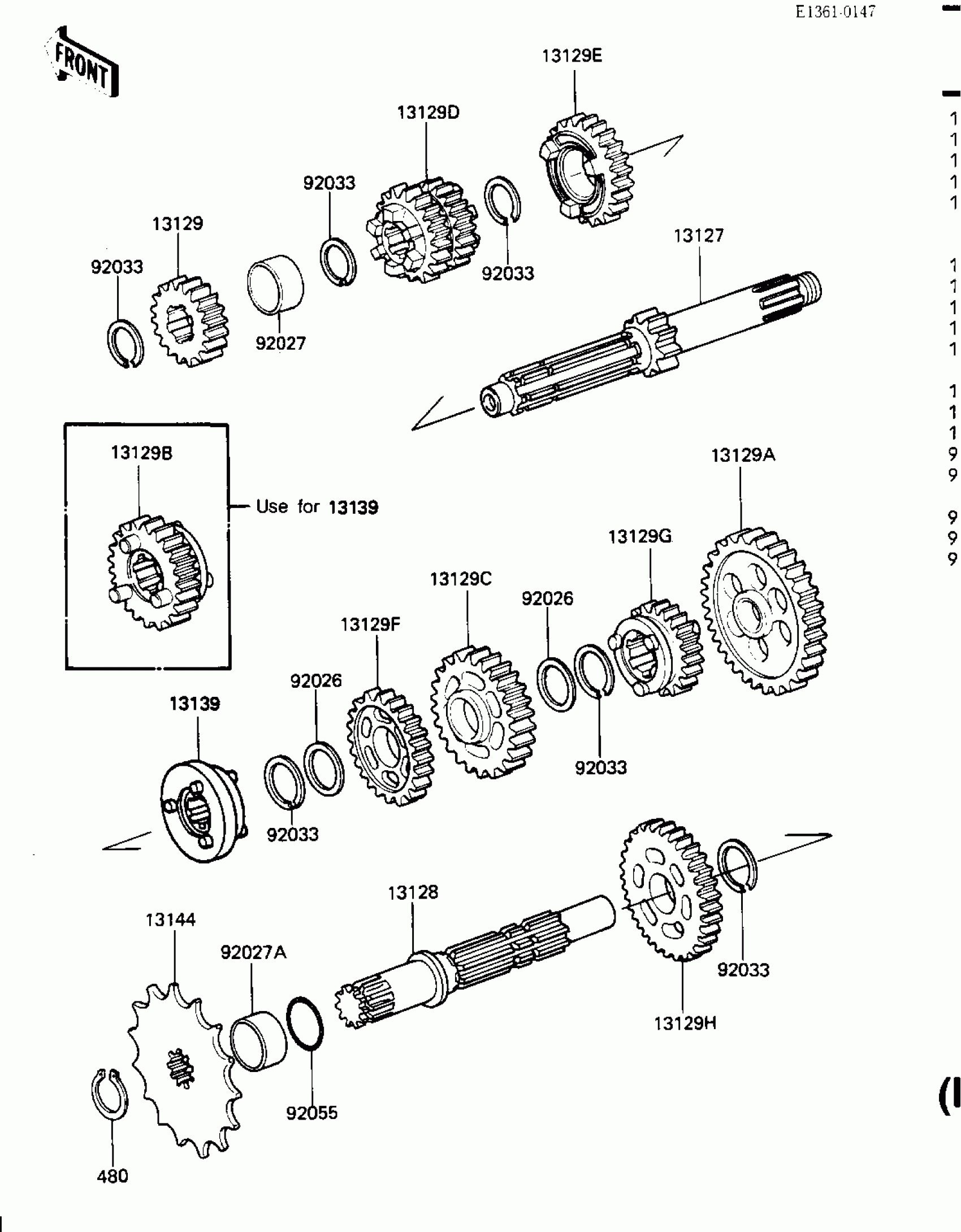

Find the part on the Transmission diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION IN

13127-1061

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1045

1
Out of stock

13129

GEAR,INPUT 2ND,18T

13129-1244

1
Out of stock

13129A

GEAR,OUTPUT LOW,43T

13260-1320

1
Out of stock

13129B

GEAR,OUTPUT TOP,28T

13129-1253

1
Out of stock

13129C

GEAR,OUTPUT 3RD,34T

13129-1338

1
Out of stock

13129D

GEAR,INPUT,3RD&4TH,21

13129-1416

1
Out of stock

13129E

GEAR,INPUT,5TH,27T

13129-1417

1
Out of stock

13129F

GEAR,OUTPUT,4TH,27T

13129-1418

1
Out of stock

13129G

GEAR,OUTPUT,5TH,30T

13129-1419

1
Out of stock

13129H

GEAR-OUTPUT 2ND,38T

13129-1645

1
Out of stock

13144

SPROCKET-OUTPUT,12T

13144-1072

1
Out of stock

92026

SPACER,17.2X23X0.5

92026-1037

1
Out of stock

92027

COLLAR,17X22X8.5

92027-1315

1
Out of stock

92027A

COLLAR,17X22X14.3

92027-1511

1
Out of stock

92033

RING-SNAP,17MM

92033-1060

1
Out of stock

92055

RING-O,17MM

92055-1097

1
Out of stock

480

CIRCLIP-TYPE-C,17MM

480J1700

1
Out of stock
