1986 Kawasaki KLT110 Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

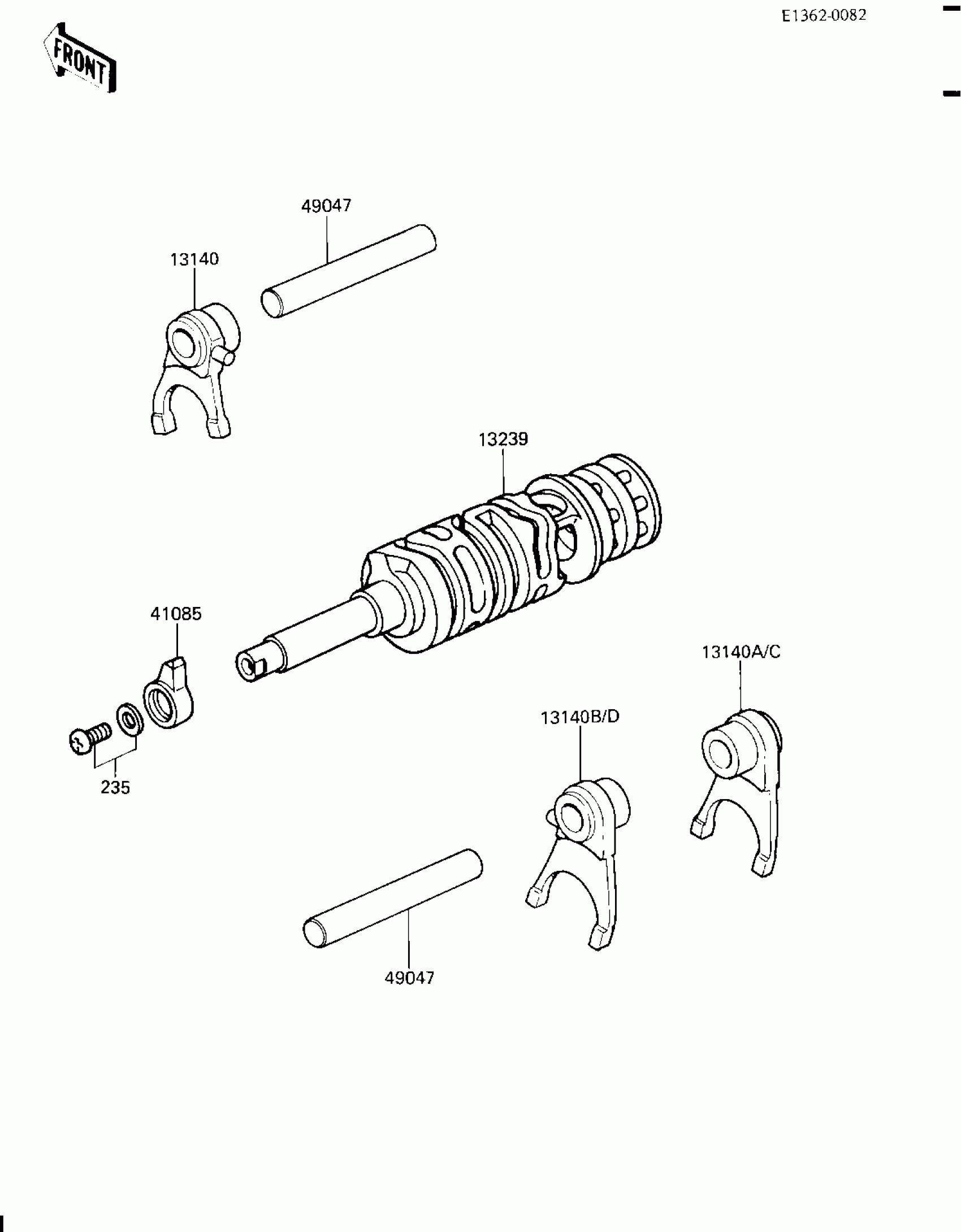

1986 Kawasaki KLT110 Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT

13140-1108

1
Out of stock

13140C

FORK-SHIFT

13140-1119

1
Out of stock

13140D

FORK-SHIFT

13140-1130

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1073

1
Out of stock

41085

INDICATOR,CHANGE DRUM

41085-1004

1
Out of stock

49047

ROD-SHIFT,10X90

49047-1009

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0512

1
Out of stock
