1986 Kawasaki KLT110 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

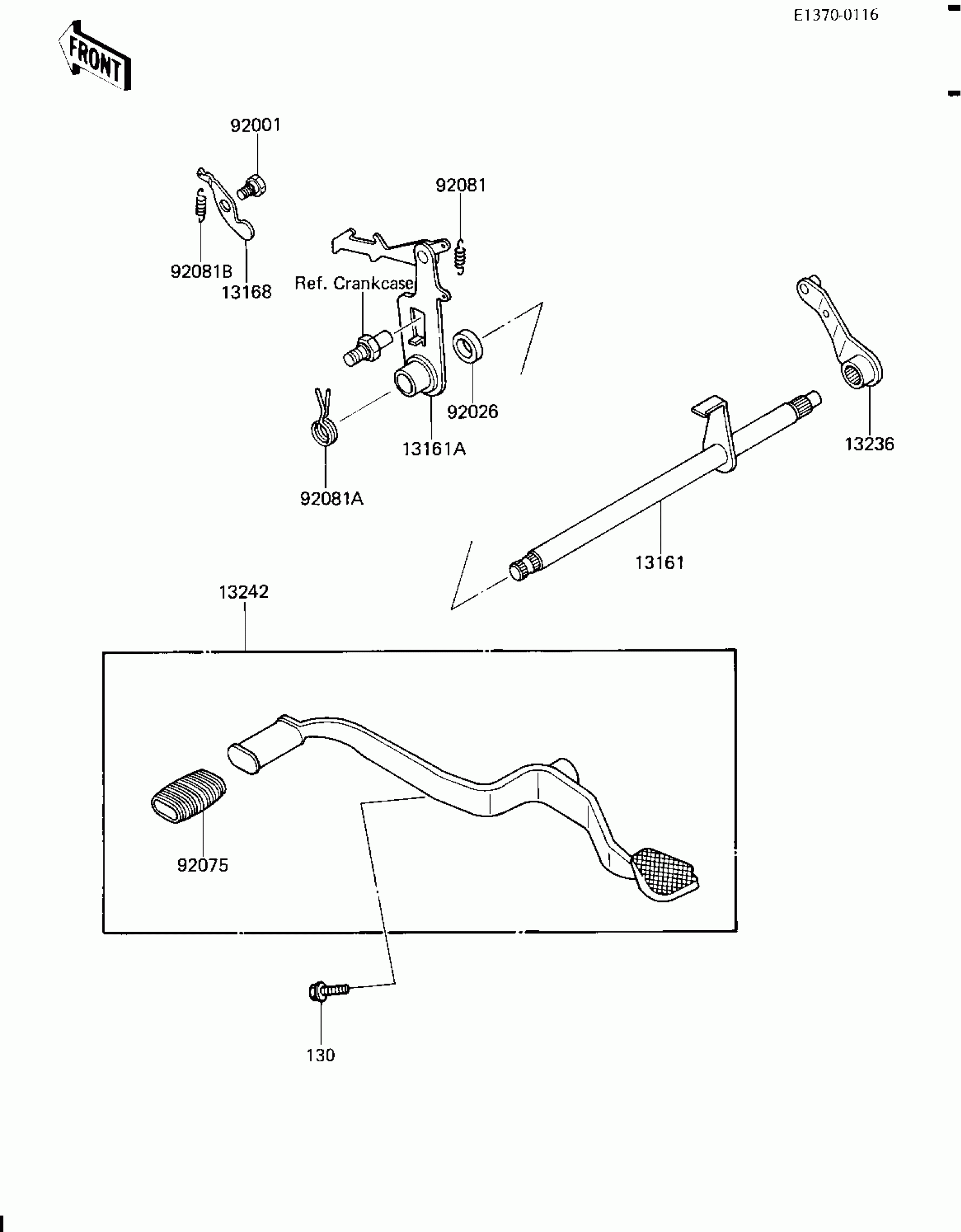

1986 Kawasaki KLT110 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

13161-1044

1
Out of stock

13161A

LEVER-COMP-CHANGE SHAFT

13161-1051

1
Out of stock

13168

LEVER,CHANGE DRUM

13168-1138

1
Out of stock

13236

LEVER-COMP

13236-1054

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-1211

1
Out of stock

92001

BOLT,CHANGE DRUM LEVER

92150-1450

1
Out of stock

92026

SPACER,13.2X19X5.5

92026-1144

1
Out of stock

92075

DAMPER

92075-1585

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-076

1
Out of stock

92081A

SPRING,CHANGE SHAFT RETURN

92144-1107

1
Out of stock

92081B

SPRING,DRUM LEVER SET

92081-1474

1
Out of stock

130

BOLT-FLANGED,6X20

130S0620

1
Out of stock
