1986 Kawasaki KLT110 Rocker Arms/valves Diagram

← All diagrams

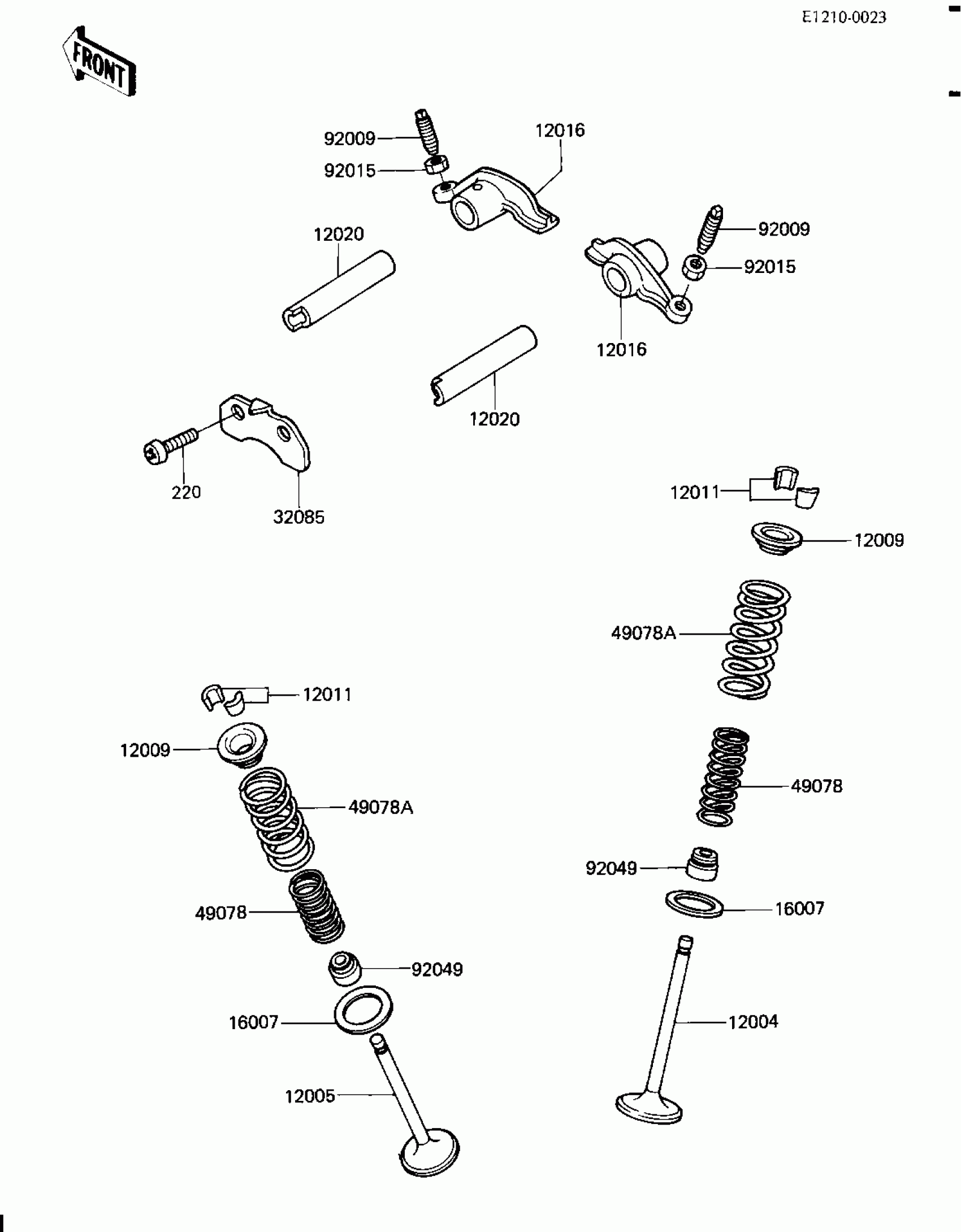

Find the part on the Rocker Arms/valves diagram for your 1986 Kawasaki KLT110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KLT110 Rocker Arms/valves Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1060

1
Out of stock

12005

VALVE-EXHAUST

12005-1056

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1052

1
Out of stock

12011

COLLET,SPLIT KEEPER

12011-1002

1
Out of stock

12016

ARM-ROCKER

12016-1003

1
Out of stock

12020

SHAFT-ROCKER

12020-1009

1
Out of stock

16007

SEAT-SPRING

16007-1109

1
Out of stock

32085

STOPPER,ROCKER SHAFT

32085-1129

1
Out of stock

49078

SPRING-ENGINE VALVE,INNER

49078-1053

1
Out of stock

49078A

SPRING-ENGINE VALVE,OUTER

49078-1054

1
Out of stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,VALVE ADJUST LOCK

92015-1137

1
Out of stock

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock
