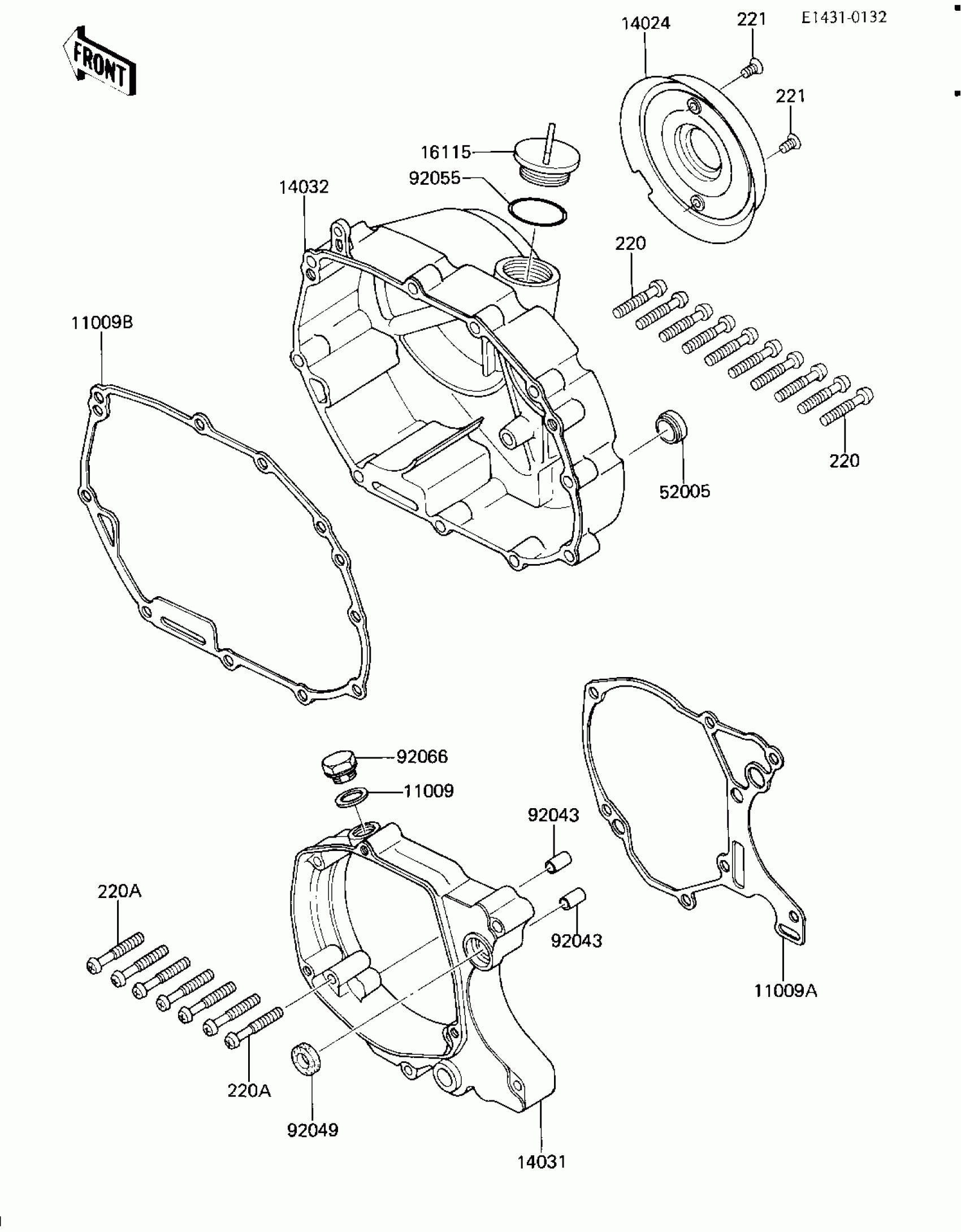

Kawasaki KLT110 ENGINE COVERS Diagram

#

Description

Price

11009

GASKET,14.3X20X1

11009-1238

$3.51

11009A

GASKET,GENERATOR COVER

11009-1311

Unavailable

11009B

GASKET,CLUTCH COVER

11009-1346

Unavailable

14024

COVER,CLUTCH COVER

14025-1792

Unavailable

14031

COVER-GENERATOR

14031-1120

Unavailable

14032

COVER-CLUTCH

14032-1114

Unavailable

16115

CAP-OIL FILLER

16115-013

$18.64

52005

GAUGE,OIL LEVEL

52005-1055

$11.20

92043

PIN,HOOK

92043-126

Unavailable

92049

SEAL-OIL

92049-1163

Unavailable

92055

RING-O,31.5X2.6

92055-049

$3.29

92066

PLUG,TENSIONER

92066-1082

Unavailable

220

SCREW-PAN-CROS

220X0635

Unavailable

220A

SCREW-PAN-CROS

220X0640

Unavailable

221

SCREW-CSK-CROS,5X10

221B0510

Unavailable
