1995 Kawasaki KLR650 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

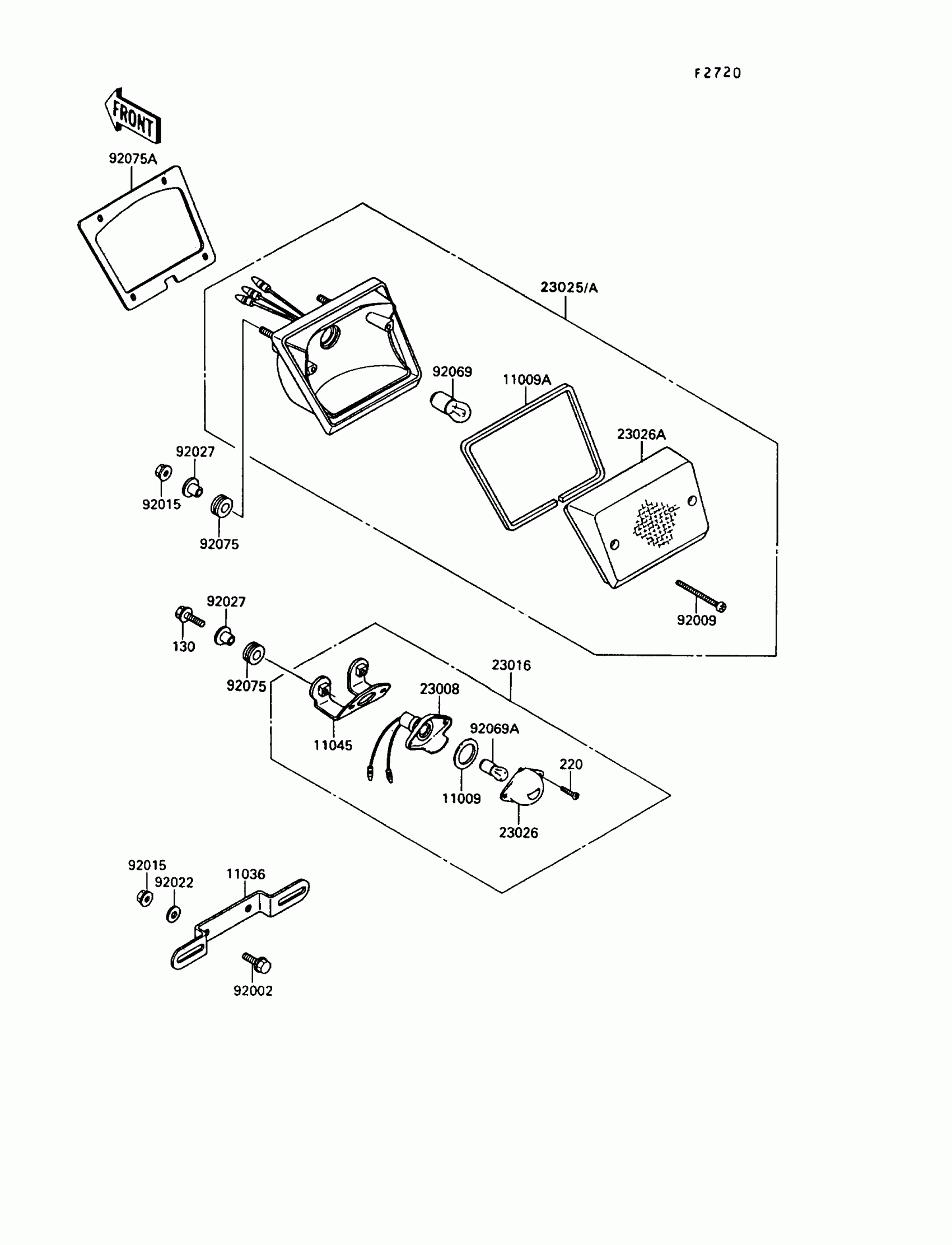

1995 Kawasaki KLR650 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.14

In stock

11009A

1

$13.78

In stock

11036

BRACKET,LICENSE PLATE

11036-1040

1
Out of stock

11045

1

$23.36

In stock

23008

1

$18.78

In stock

23016

1

$73.91

In stock

23025A

LAMP-TAIL,F.BLACK

23025-1159-6Z

1

$118.72

In stock

23026

LENS,LAMP

23026-1054

1

$9.02

In stock

23026A

LENS,TAIL LAMP

23026-1086

1
Out of stock

92002

BOLT,6X16

92002-1124

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92022

WASHER,6.5X20X1.6

92022-1557

1

$1.25

In stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1

$6.45

In stock

92069A

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92075A

DAMPER,TAIL LAMP

92075-1889

1

$13.71

In stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock

220

SCREW PAN HEAD 4X10

220B0410

1
Out of stock
