1995 Kawasaki KLR650 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

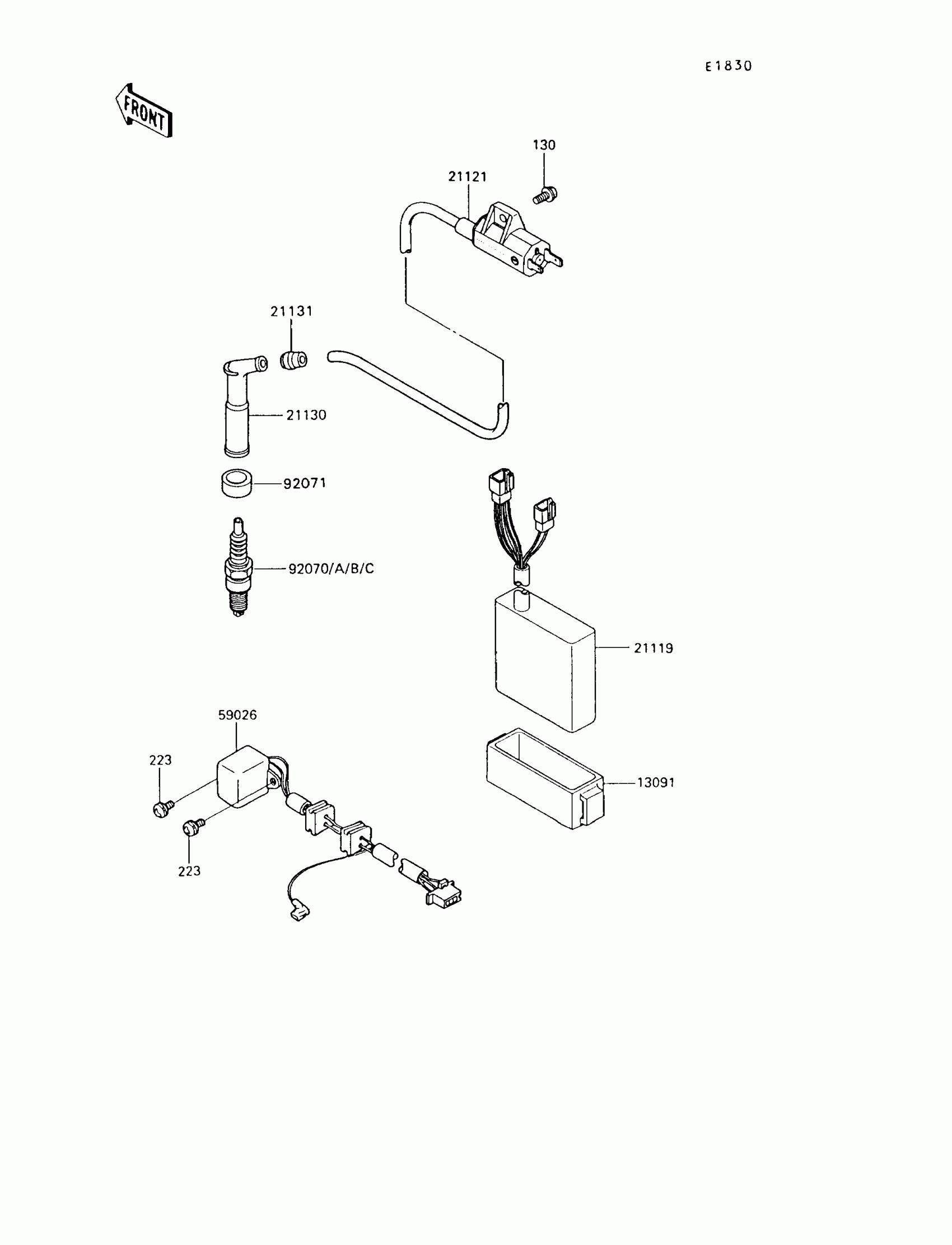

1995 Kawasaki KLR650 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,IGNITER

13091-1271

1

$15.93

In stock

21119

IGNITER

21119-1272

1

$590.34

In stock

21121

COIL-IGNITION

21121-1152

1

$138.32

In stock

21130

CAP-SPARK PLUG

21130-1002

1

$52.70

In stock

21131

1

$4.88

In stock

59026

COIL-PULSING

59026-1087

1
Out of stock

92070

1

$2.92

In stock

92070A

1

$2.92

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

Not Available As Spare Part - Friction Washer

1
Out of stock

92071

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

223

SCREW-PAN-WS-CROS,5X14

223B0514

1
Out of stock
