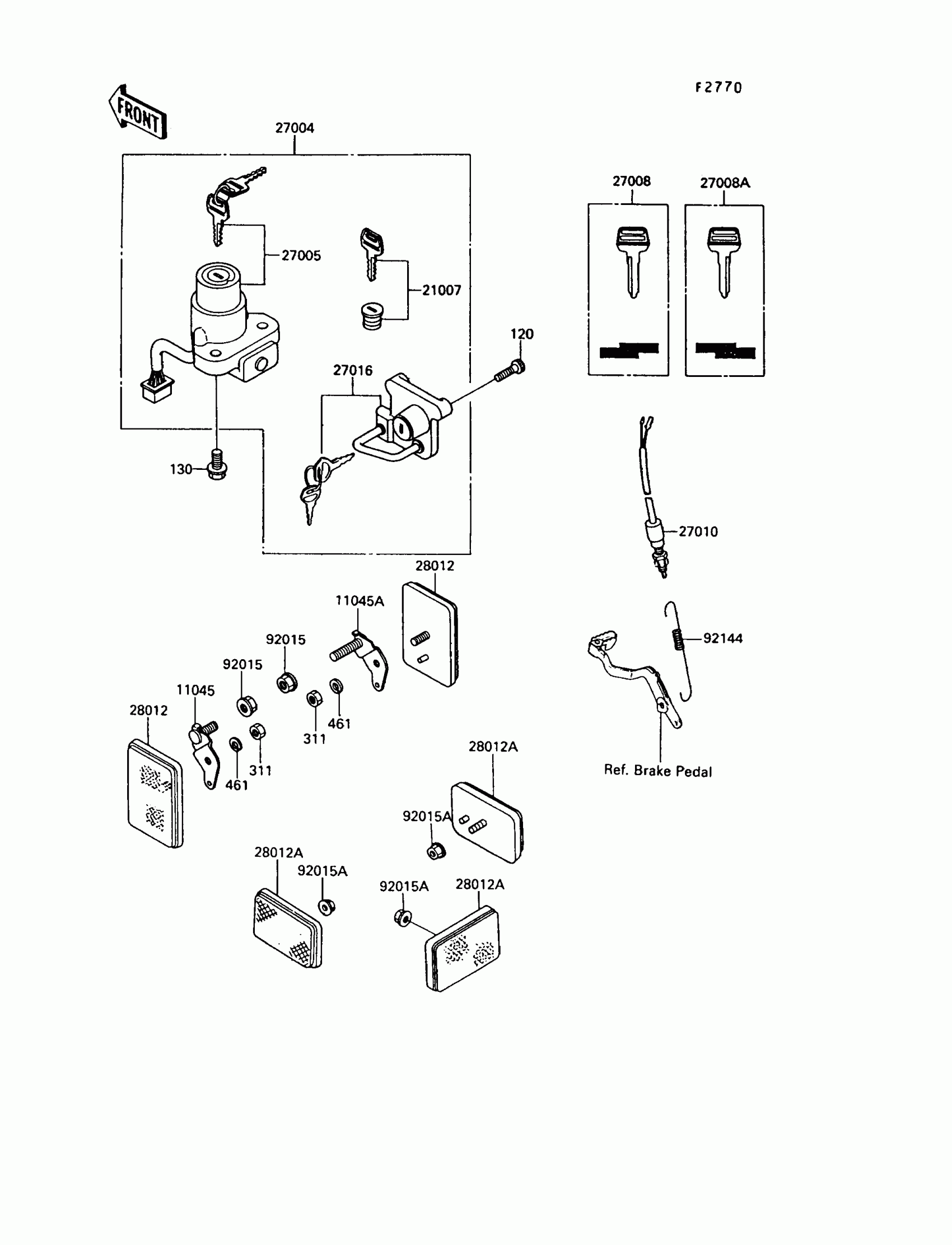

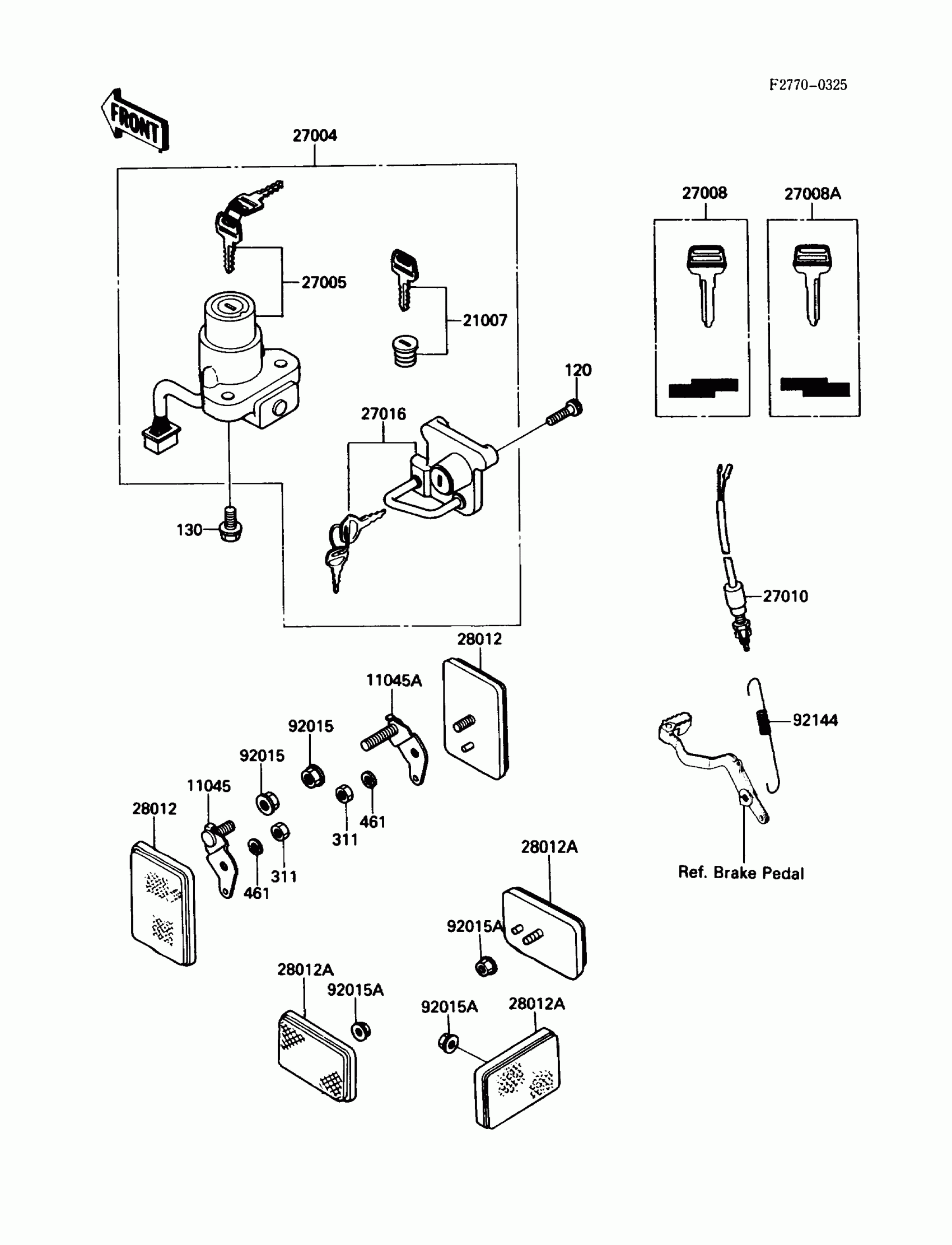

Kawasaki KLR650 Ignition Switch Diagram

Description

Price

11045

BRACKET,REFLECTOR,FR

11045-1354

$8.03

11045A

BRACKET,REFLECTOR,FR

11045-1355

$9.36

21007

ROTOR,LOCK,TANK CAP

21007-5022

$74.13

27004

SWITCH-ASSY

27004-5322

$206.45

27005

SWITCH-ASSY-IGNITION

27005-1129

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1034

$17.63

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010

SWITCH,REAR BRAKE

27010-1019

$37.98

27016

LOCK-ASSY,HELMET

27016-5075

$106.07

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX,RR

28012-1054

$18.15

92015

NUT,FLANGED,6MM,BLACK

92015-1237

$4.18

92015A

NUT,FLANGED,5MM

92015-1259

$2.99

92144

SPRING,REAR BRAKE SWITCH

92144-1093

Unavailable

120

BOLT-SOCKET,6X12

120S0612

Unavailable

130

BOLT-FLANGED,6X14

130D0614

Unavailable

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable
