1995 Kawasaki KLR650 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

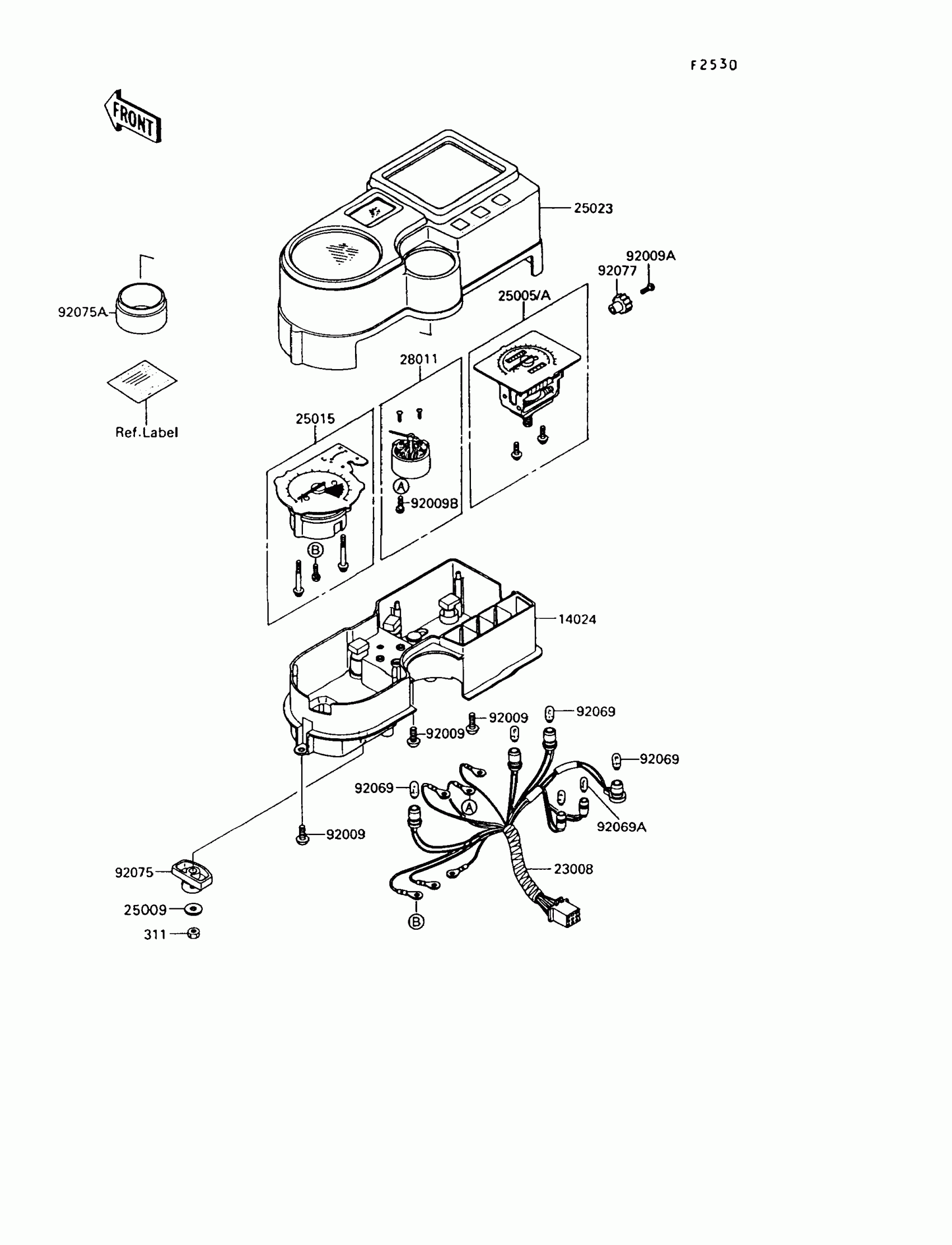

1995 Kawasaki KLR650 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14024

COVER,METER CASE,LWR

14024-1407

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1332

1

$119.78

In stock

25005

SPEEDOMETER,MPH

25005-1341

1

$361.93

In stock

25005A

SPEEDOMETER,KPH

25005-1345

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

25015

1

$402.42

In stock

25023

COVER-METER CASE,UPP

25023-1152

1
Out of stock

28011

METER,TEMP

28011-1091

1

$128.17

In stock

92009

SCREW,TAPPING,4X16

92009-1163

1
Out of stock

92009A

SCREW,2X6,BLACK

92009-1172

1
Out of stock

92009B

SCREW,3X22

92009-1293

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,14V 3W,T6.5

92069-1068

1

$3.97

In stock

92075

1

$4.81

In stock

92075A

DAMPER

92075-1890

1
Out of stock

92077

KNOB,METER

92077-1054

1

$8.78

In stock

311

NUT-HEX

311C0500

1
Out of stock
