2025 Kawasaki KLR650 S ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

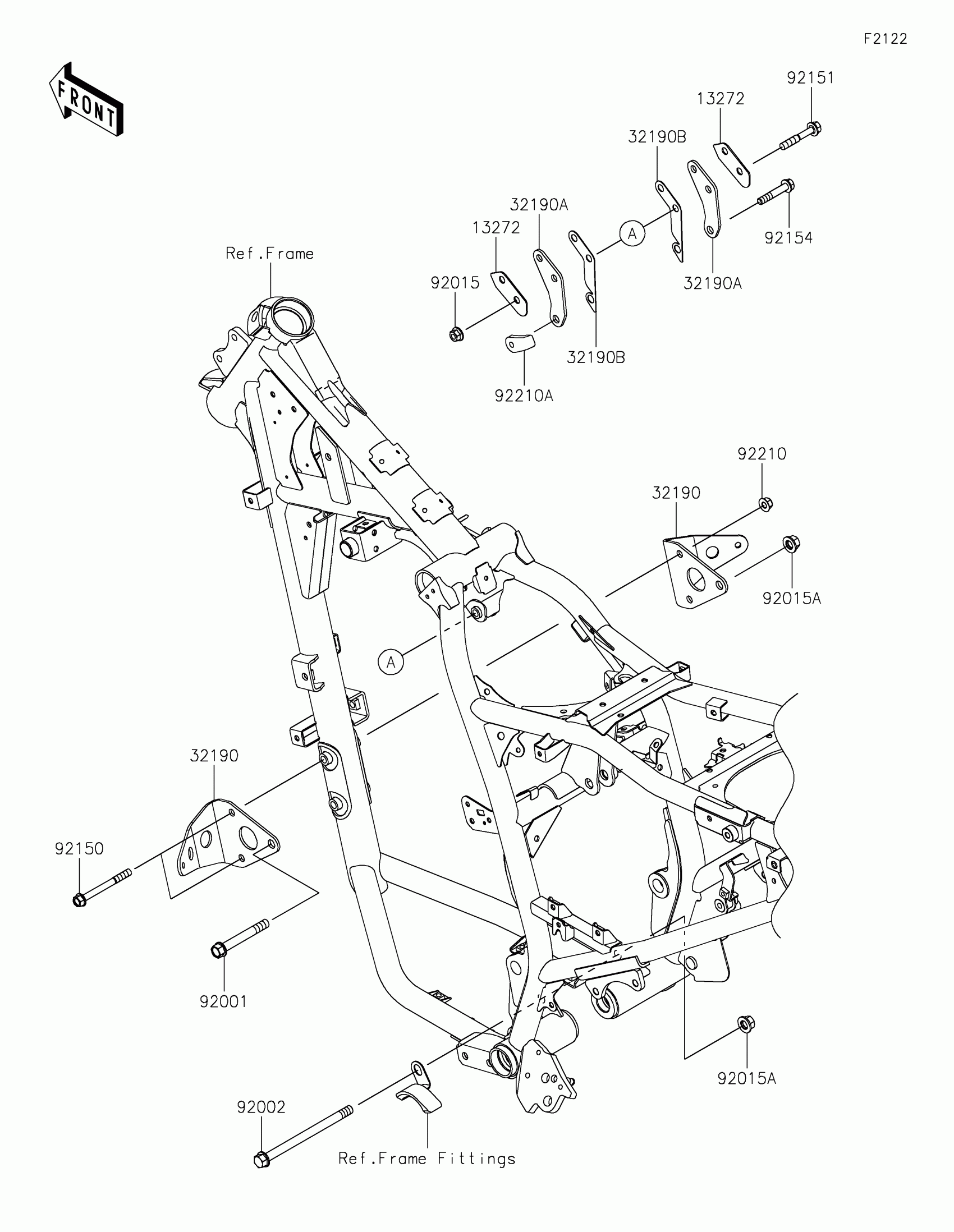

2025 Kawasaki KLR650 S ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-3910

1

$3.90

In stock

32190

BRACKET-ENGINE,LWR

32190-0858

1

$22.56

In stock

32190A

BRACKET-ENGINE,UPP

32190-0859

1

$21.12

In stock

32190B

BRACKET-ENGINE

32190-0860

1

$12.71

In stock

92001

BOLT,10X75

92001-4021

1

$8.63

In stock

92002

BOLT,10X145

92002-1348

1

$17.39

In stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92150

BOLT,8X80

92150-1162

1

$5.75

In stock

92151

BOLT,8X50

92151-1463

1

$4.23

In stock

92154

BOLT,FLANGED,8X45

92154-3733

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0159

1
Out of stock

92210A

NUT,PLATE,8MM

92210-0608

1
Out of stock
