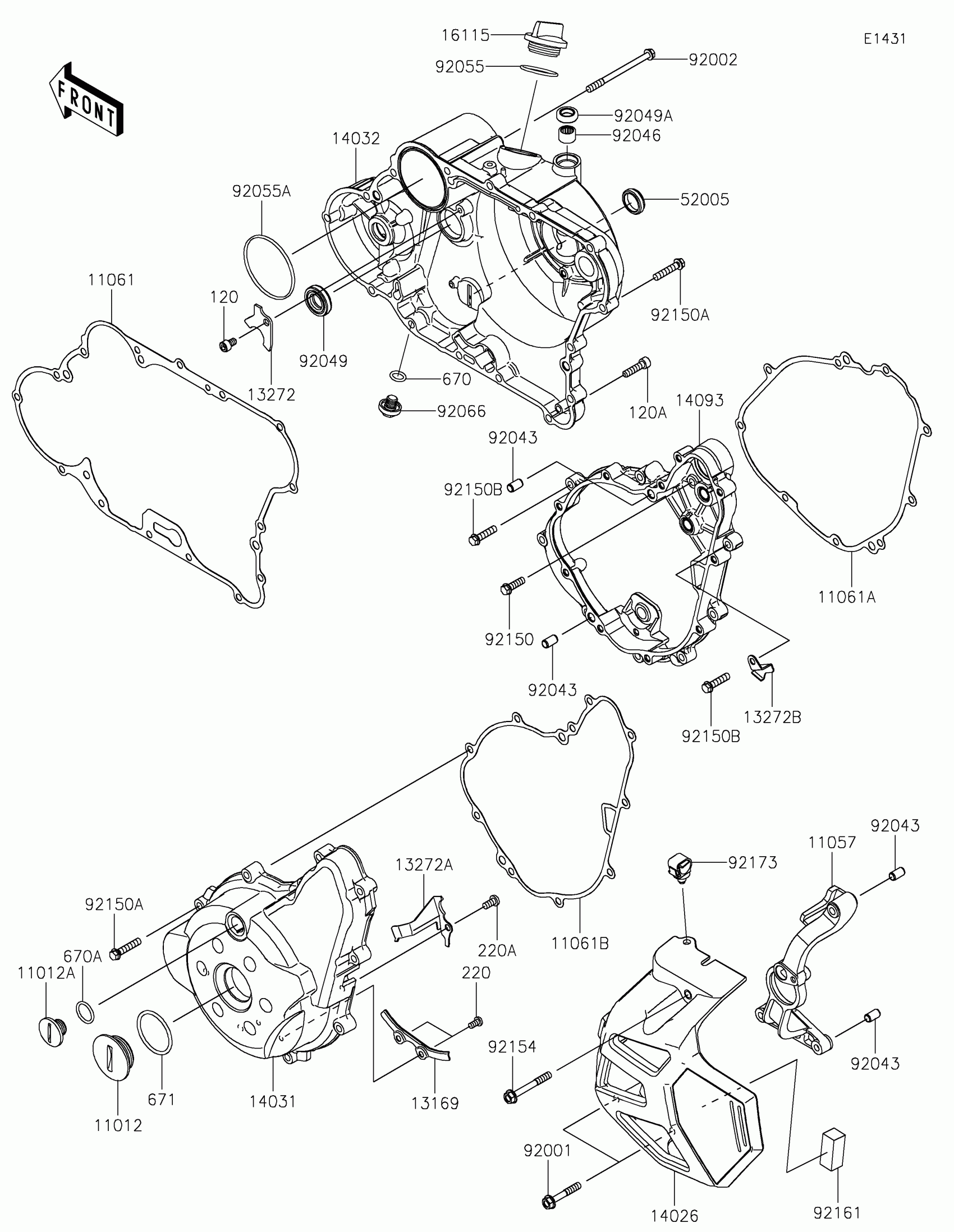

Find the part on the Engine Cover diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1362

1

$6.98

In stock

11012A

CAP,TOP MARK

11012-1363

1

$5.15

In stock

11057

1

$69.26

In stock

11061

GASKET,CLUTCH COVER

11061-0429

1

$12.56

In stock

11061A

1

$24.12

In stock

11061B

1

$24.12

In stock

13169

1

$8.63

In stock

13272

PLATE,OIL SEAL

13272-0863

1

$7.81

In stock

13272A

PLATE,GENERATOR

13272-0869

1

$10.22

In stock

13272B

PLATE,GENERATOR

13272-3871

1

$2.12

In stock

14026

COVER-CHAIN

14026-0153

1

$64.79

In stock

14031

COVER-GENERATOR

14031-0126

1

$330.94

In stock

14032

COVER-CLUTCH

14032-0674

1

$376.53

In stock

14093

1

$277.17

In stock

16115

CAP-OIL FILLER

16115-1068

1

$4.54

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92001

BOLT,6X38

92001-1899

1

$3.92

In stock

92002

BOLT,FLANGED,6X80

92002-1568

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

1

$12.37

In stock

92049

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049A

SEAL-OIL

92049-1560

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,62.6X66X3.1

92055-1221

1

$7.04

In stock

92066

PLUG,DRAIN

92066-1156

1

$8.93

In stock

92150

BOLT,6X20

92150-1010

1
Out of stock

92150A

BOLT,6X30

92150-1021

1
Out of stock

92150B

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92154

BOLT,FLANGED,6X50

92154-4222

1

$2.12

In stock

92161

DAMPER,15X35X15

92161-2359

1

$1.39

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

120

BOLT-SOCKET,6X10

120CA0610

1

$1.47

In stock

120A

BOLT-SOCKET,6X25

120CB0625

1

$2.10

In stock

220

1

$0.75

In stock

220A

1

$1.10

In stock

670

O RING,11MM

670B2011

1
Out of stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock
