1991 Kawasaki KLR650 Rear Master Cylinder Diagram

← All diagrams

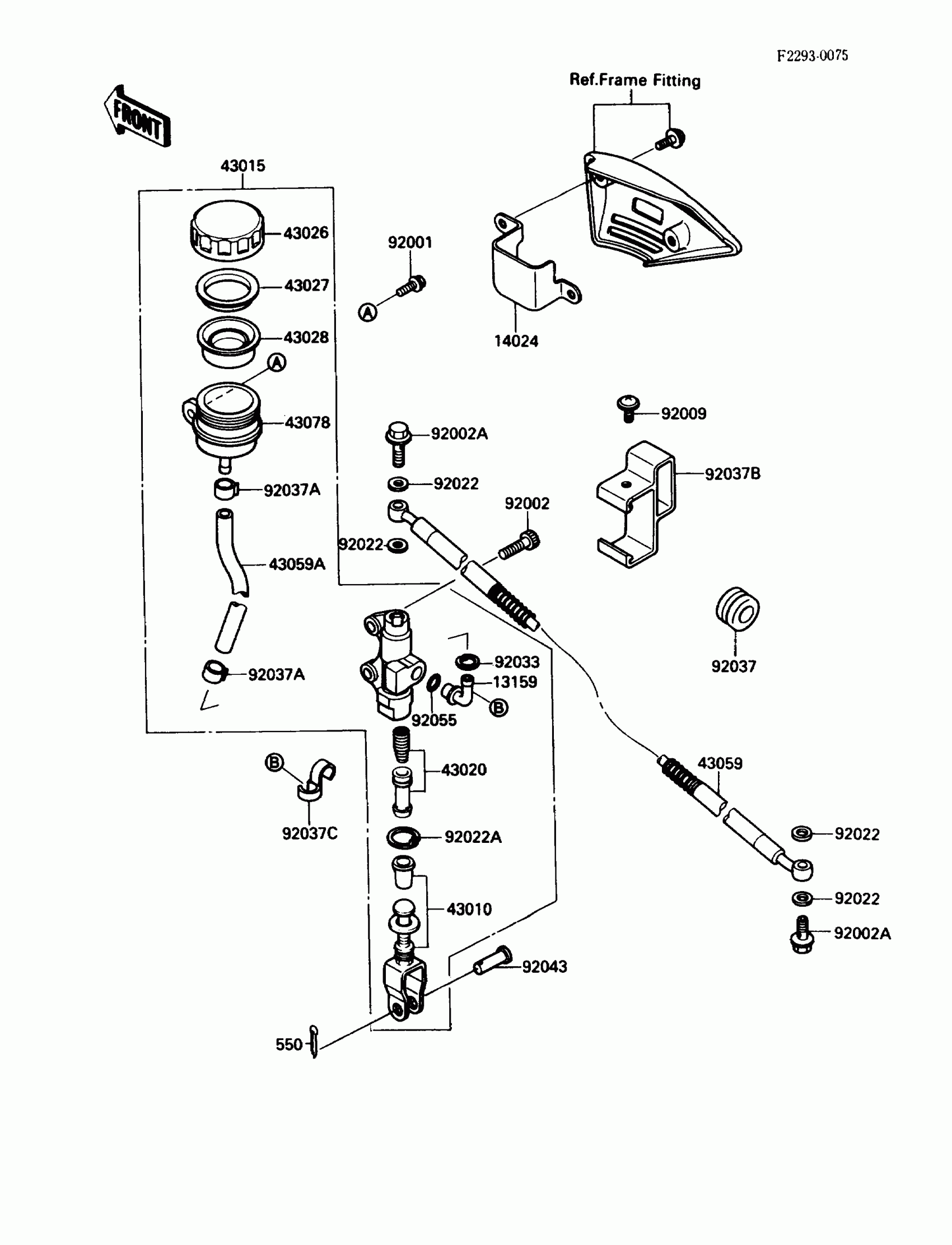

Find the part on the Rear Master Cylinder diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KLR650 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-1056

1

$11.16

In stock

14024

COVER,RESERVOIR TANK

14024-1531

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1062

1

$46.36

In stock

43015

1

$438.17

In stock

43020

PISTON-COMP-BRAKE

43020-1063

1

$59.90

In stock

43026

CAP-BRAKE

43026-1064

1

$39.94

In stock

43027

PLATE-DIAPHRAGM

43027-1053

1

$4.97

In stock

43028

DIAPHRAGM

43028-1065

1

$17.85

In stock

43059

HOSE-BRAKE,RR

43059-1376

1

$96.09

In stock

43059A

HOSE-BRAKE

43059-1408

1

$21.59

In stock

43078

RESERVOIR

43078-1080

1

$28.80

In stock

92001

BOLT,W/P,6X16

92001-1860

1

$3.85

In stock

92002

BOLT,8X30

92002-1485

1

$3.11

In stock

92002A

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

92037A

CLAMP

92037-1710

1

$7.86

In stock

92037B

CLAMP,HOSE

92037-1895

1

$11.41

In stock

92037C

CLAMP,HOSE

92037-1914

1

$5.78

In stock

92043

PIN,8MM

92043-1303

1

$3.11

In stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
