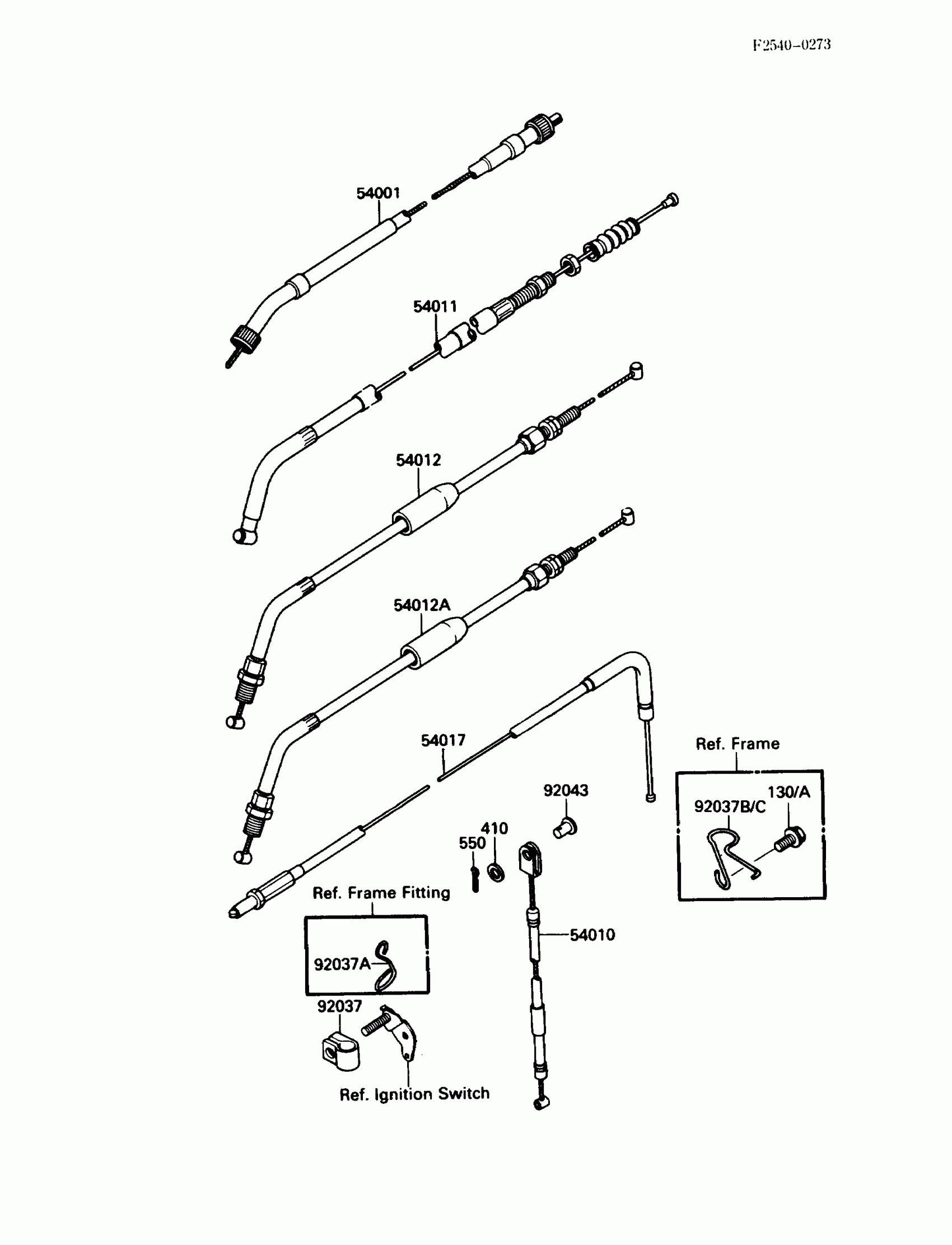

Kawasaki KLR650 Cable Diagram

Description

Price

54001

CABLE-SPEEDMETER

54001-1128

$20.41

54010

CABLE,SIDE STAND SWITCH

54010-1061

Unavailable

54011

CABLE-CLUTCH

54011-1257

$32.47

54012

CABLE-THROTTLE,OPENING

54012-1327

$36.05

54012A

CABLE-THROTTLE,CLOSING

54012-1328

$36.05

54017

CABLE-STARTER

54017-1090

$36.45

92037

CLAMP,CABLE

92037-1777

$6.15

92037A

CLAMP,CABLE

92037-1904

$7.55

92037B

CLAMP,CABLE

92037-1937

$8.60

92043

PIN,5X10

92043-1346

$4.78

130

BOLT

130B0612

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.84
