1991 Kawasaki KLR650 Front Master Cylinder Diagram

← All diagrams

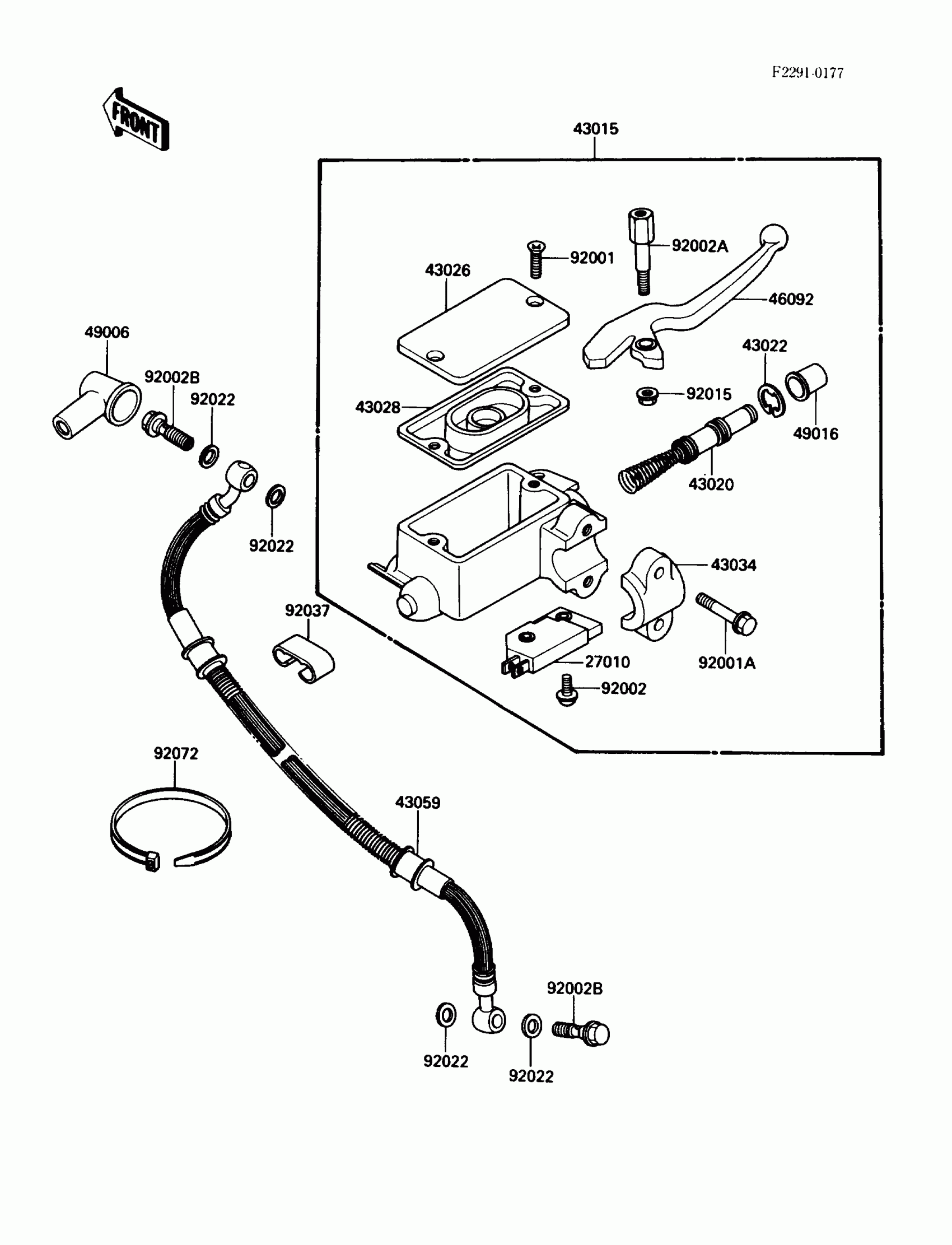

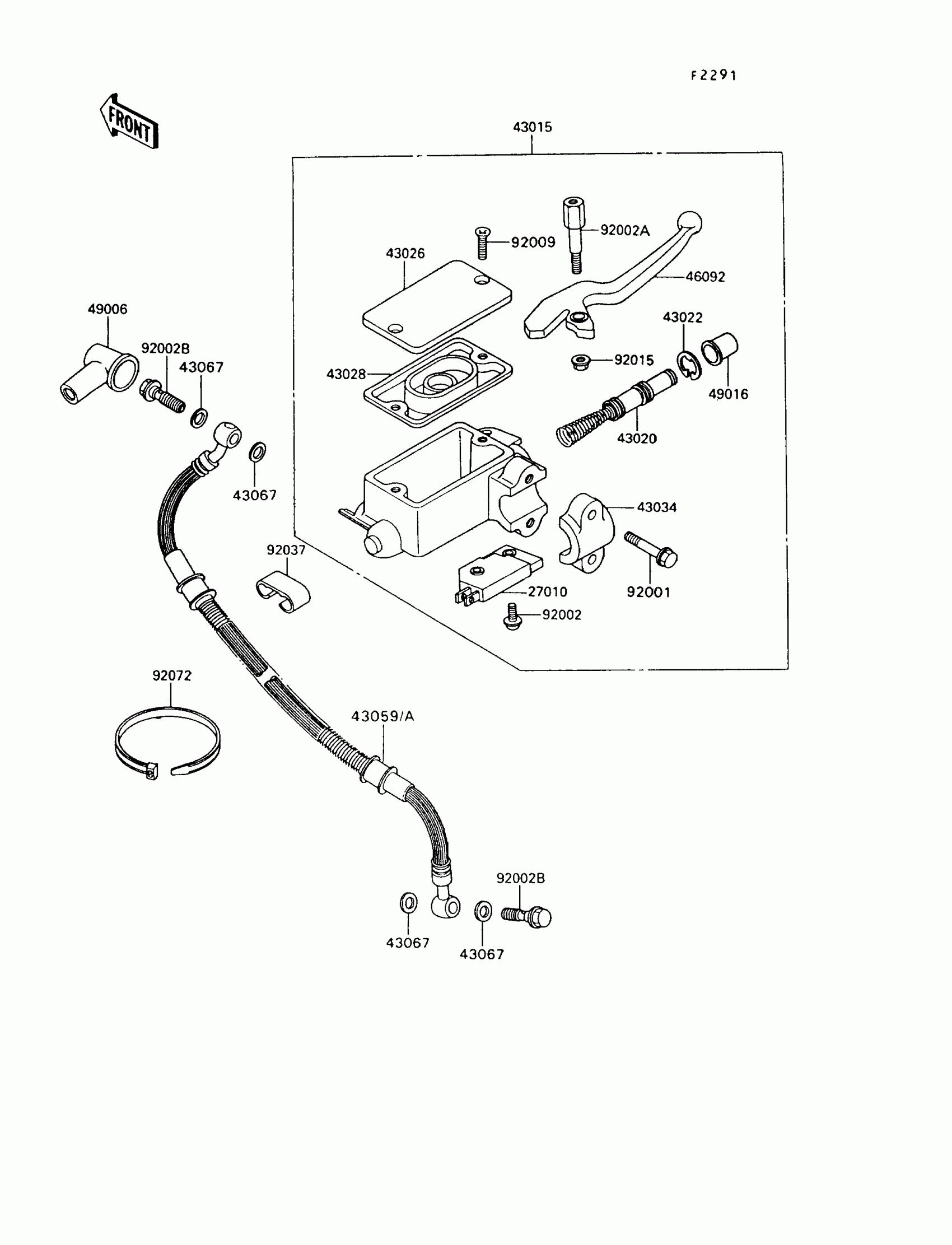

Find the part on the Front Master Cylinder diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KLR650 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$442.60

In stock

43020

PISTON-COMP-BRAKE

43020-1031

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1022

1

$52.90

In stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

1

$15.29

In stock

43059

HOSE-BRAKE,FR

43059-1375

1

$141.96

In stock

46092

1

$22.11

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92001

SCREW,5MM,BLACK

92001-1727

1

$3.27

In stock

92001A

BOLT,6X25,BLACK

92001-1729

1

$4.37

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT,LEVER SET

92002-1879

1
Out of stock

92002B

BOLT,OIL,L=23

92002-1888

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037

CLAMP,BRAKE HOSE

92037-1529

1

$12.00

In stock

92072

BAND,L=365

92072-1197

1

$7.71

In stock
