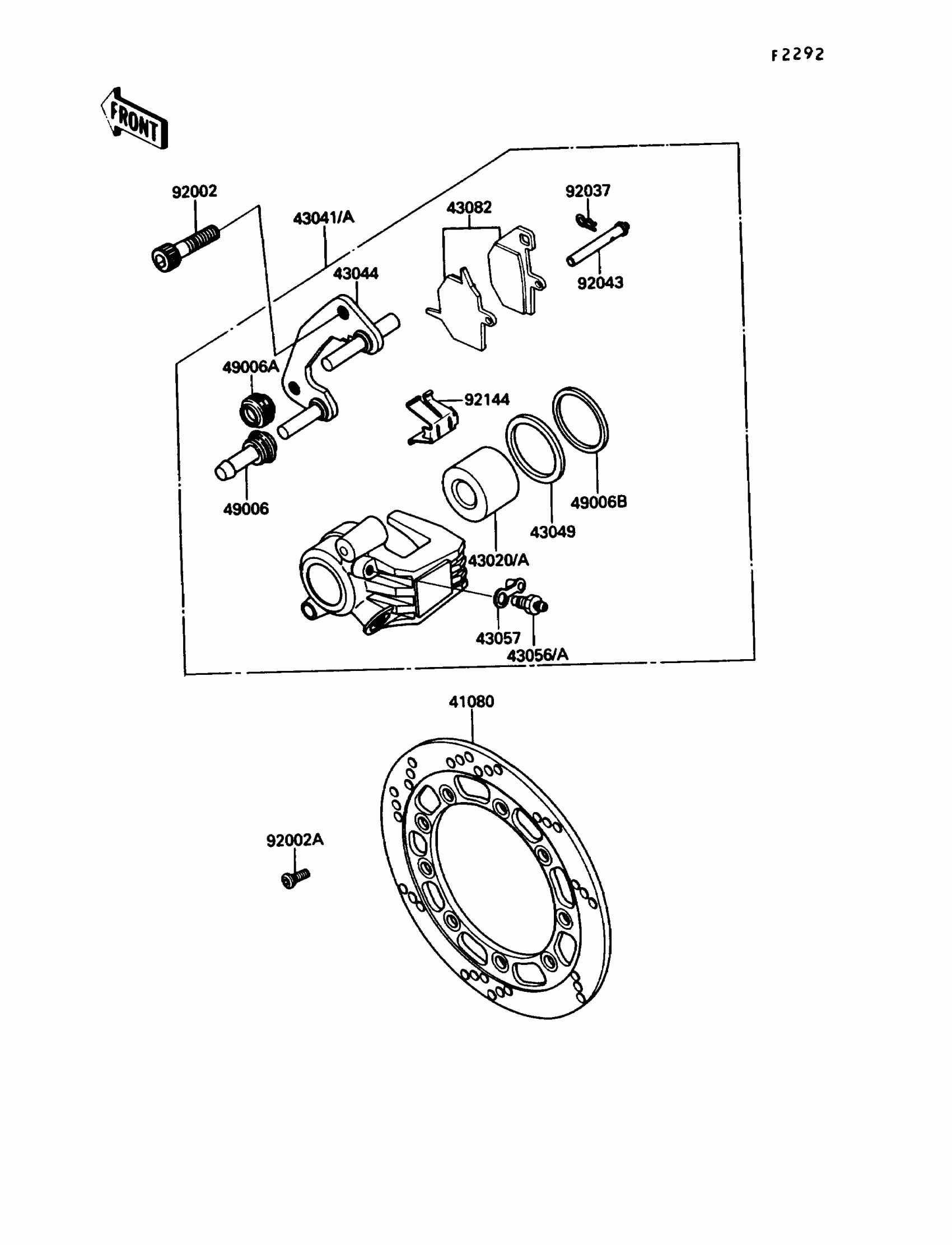

Kawasaki KLR650 Front Caliper Diagram

Description

Price

41080

DISC,FR

41080-1178

$473.15

43020A

PISTON-COMP-BRAKE

43020-1097

$74.19

43041A

CALIPER-ASSY,FR,LH

43041-1377

$507.70

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1074

$170.00

43049

PACKING,PISTON SEAL

43049-001

$8.41

43056A

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1078

$65.15

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1055

$5.55

49006B

BOOT,PISTON SEAL

49006-1212

$18.77

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92002A

BOLT,DISC PLATE,8MM

92002-1878

$3.57

92037

CLAMP,PAD

43084-003

$3.29

92043

PIN,PAD

92043-1356

$10.25

92144

SPRING,PAD

92144-1117

$42.93
