2014 Kawasaki KLR650 New Edition Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

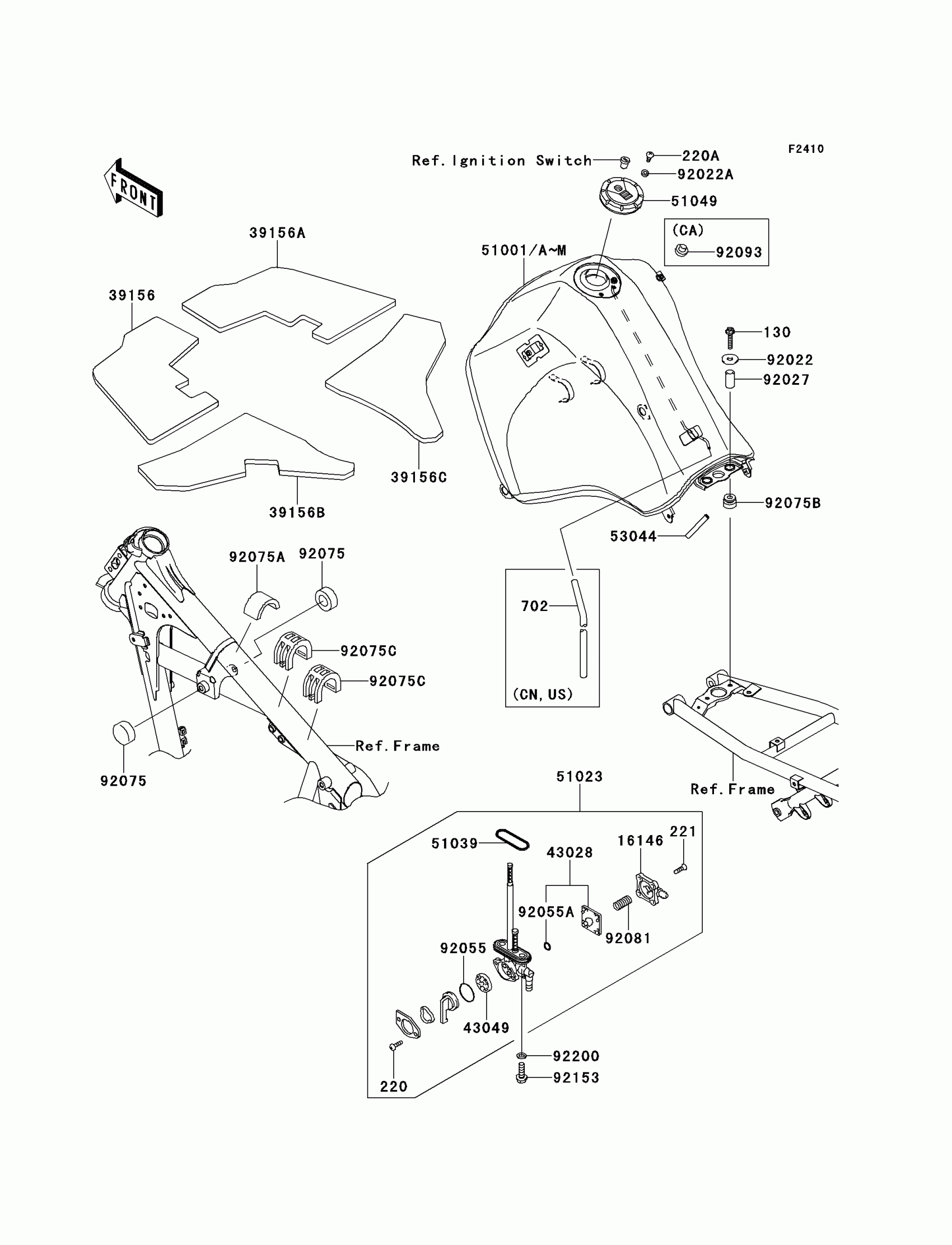

2014 Kawasaki KLR650 New Edition Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

1
Out of stock

39156

PAD,FUEL TANK,FR,LH

39156-0620

1
Out of stock

39156A

PAD,FUEL TANK,CNT,RH

39156-0621

1
Out of stock

39156B

PAD,FUEL TANK,RR,LH

39156-0622

1
Out of stock

39156C

PAD,FUEL TANK,LWR,RH

39156-0623

1
Out of stock

43028

DIAPHRAGM

43028-1033

1
Out of stock

43049

PACKING

43049-1103

1
Out of stock

51023

TAP-ASSY,FUEL

51023-0003

1
Out of stock

51039

RING,TAP FLANGED

51039-003

1
Out of stock

51049

CAP-TANK,FUEL

51049-0047

1
Out of stock

53044

TRIM,L=60

53044-1249

1
Out of stock

130

BOLT-FLANGED,6X30

130BB0630

1
Out of stock

220

SCREW-PAN-CROS,3X8

220AA0308

1
Out of stock

220A

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

221

SCREW-CSK-CROS,4X14

221AA0414

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92022A

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,6.8X10X20

92027-1856

1
Out of stock

92055

RING-O,TAP LEVER

92055-1085

1
Out of stock

92055A

RING-O

92055-1664

1
Out of stock

92075

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075A

DAMPER

92075-1507

1
Out of stock

92075B

DAMPER

92075-1660

1
Out of stock

92075C

DAMPER,FUEL TANK

92075-1862

1
Out of stock

92081

SPRING,TAP DIAPHRAGM

92081-1240

1
Out of stock

92153

BOLT,FLANGED,6X20

92153-0746

1
Out of stock

92200

WASHER,6.5X11.5X0.8

92200-0117

1
Out of stock

51001C

TANK-COMP-FUEL,P.S.WHITE

51001-0367-25Y

1
Out of stock

51001D

TANK-COMP-FUEL,M.F.R.GRAYSTONE

51001-0367-35B

1
Out of stock

51001F

TANK-COMP-FUEL,C.L.GREEN

51001-0367-35P

1
Out of stock

51001J

TANK-COMP-FUEL,P.S.WHITE

51001-0368-25Y

1
Out of stock

51001K

TANK-COMP-FUEL,M.F.R.GRAYSTONE

51001-0368-35B

1
Out of stock

51001M

TANK-COMP-FUEL,C.L.GREEN

51001-0368-35P

1
Out of stock

702

TUBE-RUBBER,5X8X620

702A05620

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock
