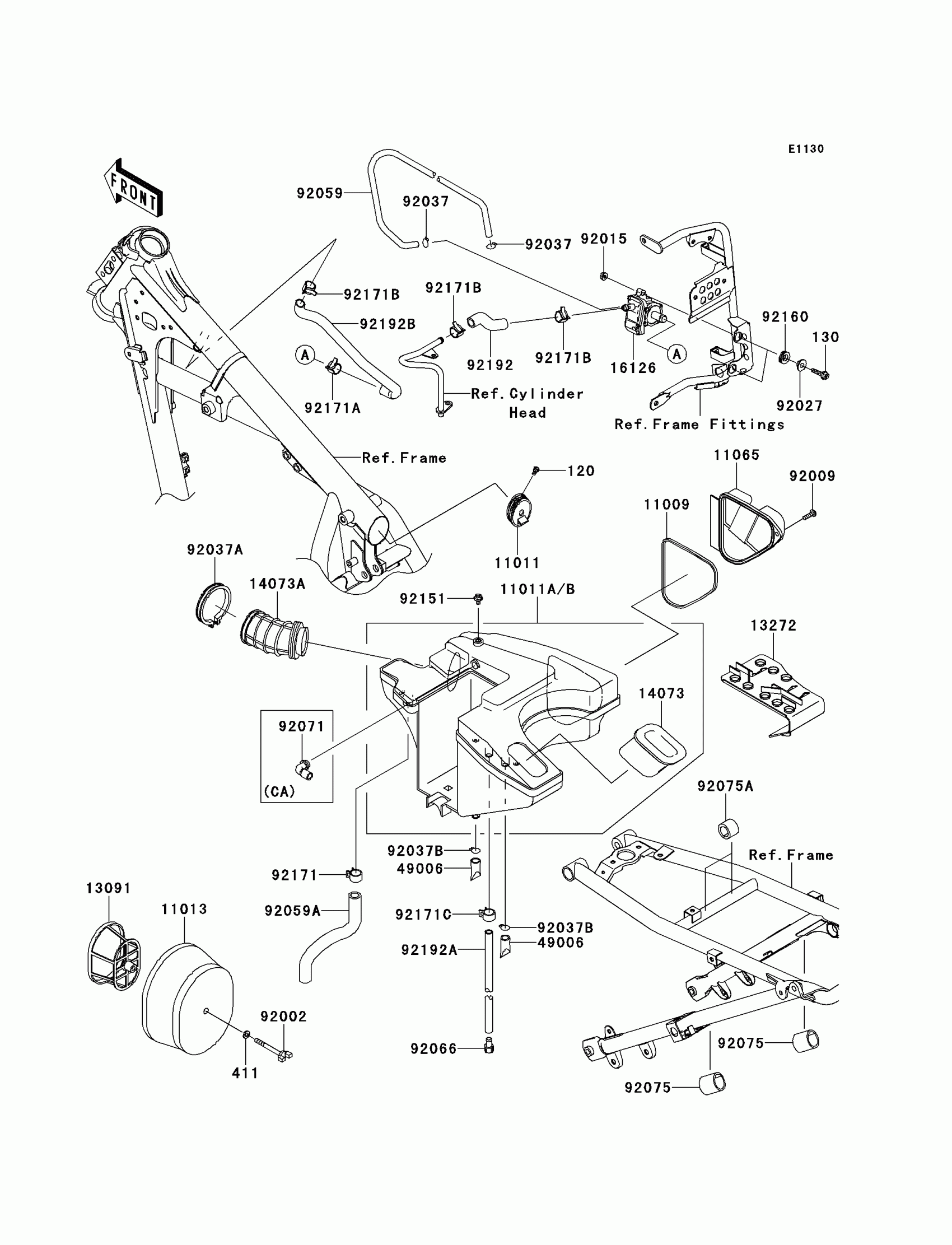

Find the part on the AIR Cleaner diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLR650 New Edition AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X8

120CA0508

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

411

WASHER-PLAIN,6MM

411AA0600

1
Out of stock

11009

GASKET

11009-1649

1
Out of stock

11011

CASE-AIR FILTER

11011-0095

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1152

1
Out of stock

11065

CAP,AIR FILTER

11065-1133

1
Out of stock

13091

HOLDER

13091-1473

1

$26.56

In stock

13272

PLATE

13272-0598

1

$41.59

In stock

14073

DUCT

14073-0119

1

$33.05

In stock

14073A

DUCT

14073-1288

1

$32.61

In stock

16126

VALVE,2ND AIR

16126-0054

1
Out of stock

49006

BOOT

49006-1211

1
Out of stock

92002

BOLT

92002-1904

1
Out of stock

92009

SCREW

92009-1460

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92037

CLAMP

92037-1610

1
Out of stock

92037A

CLAMP

92037-1859

1
Out of stock

92037B

CLAMP,14.5MM

92037-1900

1
Out of stock

92059

TUBE,4X9X550,WHITE

92059-1760

1
Out of stock

92059A

TUBE

92059-1774

1
Out of stock

92066

PLUG,DRAIN,8.5X15

92066-0127

1
Out of stock

92075

DAMPER,25X31X30

92075-1906

1
Out of stock

92075A

DAMPER,18X27X20

92075-1907

1
Out of stock

92151

BOLT,6X10

92151-1344

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92171

CLAMP

92171-0329

1

$7.06

In stock

92171A

CLAMP,16MM

92171-0976

1
Out of stock

92171B

CLAMP,15MM

92171-1600

1
Out of stock

92171C

CLAMP,12MM

92171-1870

1
Out of stock

92192

TUBE,ASV-HEAD,YELLOW

92192-0323

1
Out of stock

92192A

TUBE,8X12X380

92192-0883

1
Out of stock

92192B

TUBE,FRAME-ASV,PINK

92192-0905

1
Out of stock

11011A

CASE-AIR FILTER

11011-0159

1
Out of stock

11011B

CASE-AIR FILTER

11011-0160

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1147

1
Out of stock
