2014 Kawasaki KLR650 New Edition Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2014 Kawasaki KLR650 New Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

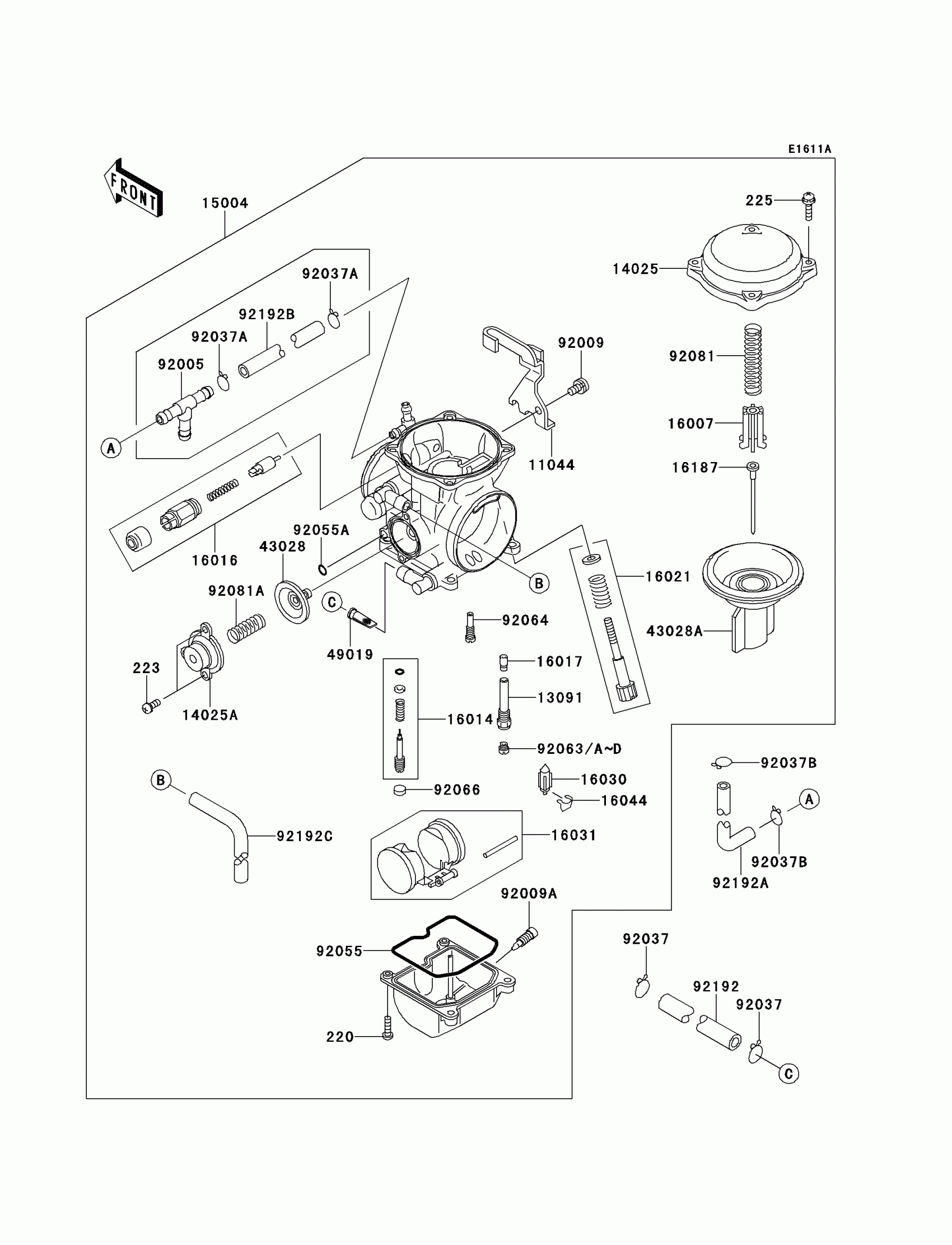

2014 Kawasaki KLR650 New Edition Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,THROTTLE CABLE

11044-1353

1
Out of stock

13091

HOLDER,NEEDLE JET

13091-1425

1

$26.89

In stock

14025

1

$79.30

In stock

14025A

COVER,AIR CUT VALVE

14025-1903

1

$59.59

In stock

15004

CARBURETOR-ASSY,CVK40

15004-0072

1
Out of stock

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

1
Out of stock

16014

SCREW-PILOT AIR

16014-1083

1
Out of stock

16016

PLUNGER

16016-1087

1
Out of stock

16017

JET-NEEDLE,#6

16017-0055

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1201

1
Out of stock

16030

VALVE-FLOAT

16030-1057

1
Out of stock

16031

FLOAT

16031-1077

1
Out of stock

16044

CLAMP,FLOAT VALVE

16044-007

1
Out of stock

16187

NEEDLE-JET,N6NJ

16187-0275

1
Out of stock

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-0016

1
Out of stock

43028A

DIAPHRAGM,VALVE

43028-1062

1
Out of stock

49019

FILTER-FUEL

49019-1097

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92009

SCREW,5X10

92009-1365

1
Out of stock

92009A

SCREW,DRAIN,M6X0.75

92009-1551

1
Out of stock

92037

CLAMP,12.5MM

92037-1271

1
Out of stock

92037A

CLAMP,TUBE

92037-1477

1
Out of stock

92037B

CLAMP

92037-1610

1
Out of stock

92055

RING-O,FLOAT CHAMBER

92055-1222

1
Out of stock

92055A

RING-O

92055-1245

1
Out of stock

92063

JET-MAIN,#140

92063-1013

1
Out of stock

92063A

JET-MAIN,#142

92063-1016

1
Out of stock

92063B

JET-MAIN,#145

92063-1017

1
Out of stock

92063C

JET-MAIN,#148

92063-1324

1
Out of stock

92063D

JET-MAIN,#150

92063-1330

1
Out of stock

92064

JET-PILOT,#40

92064-1108

1
Out of stock

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

1
Out of stock

92081

SPRING,DIAPHRAGM VALVE

92081-1718

1
Out of stock

92081A

SPRING,AIR CUT VALVE

92081-1719

1
Out of stock

92192

TUBE,FUEL,6.2X13.2X170

92192-0453

1
Out of stock

92192A

TUBE,5X9X40&20

92192-0480

1
Out of stock

92192B

TUBE,L=70

92192-0588

1
Out of stock

92192C

TUBE,L=360

92192-0589

1
Out of stock

220

SCREW-PAN-CROS,4X14

220AA0414

1
Out of stock

223

SCREW-PAN-WS-CROS,4X8

223C0408

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X18

225AB0418

1
Out of stock
