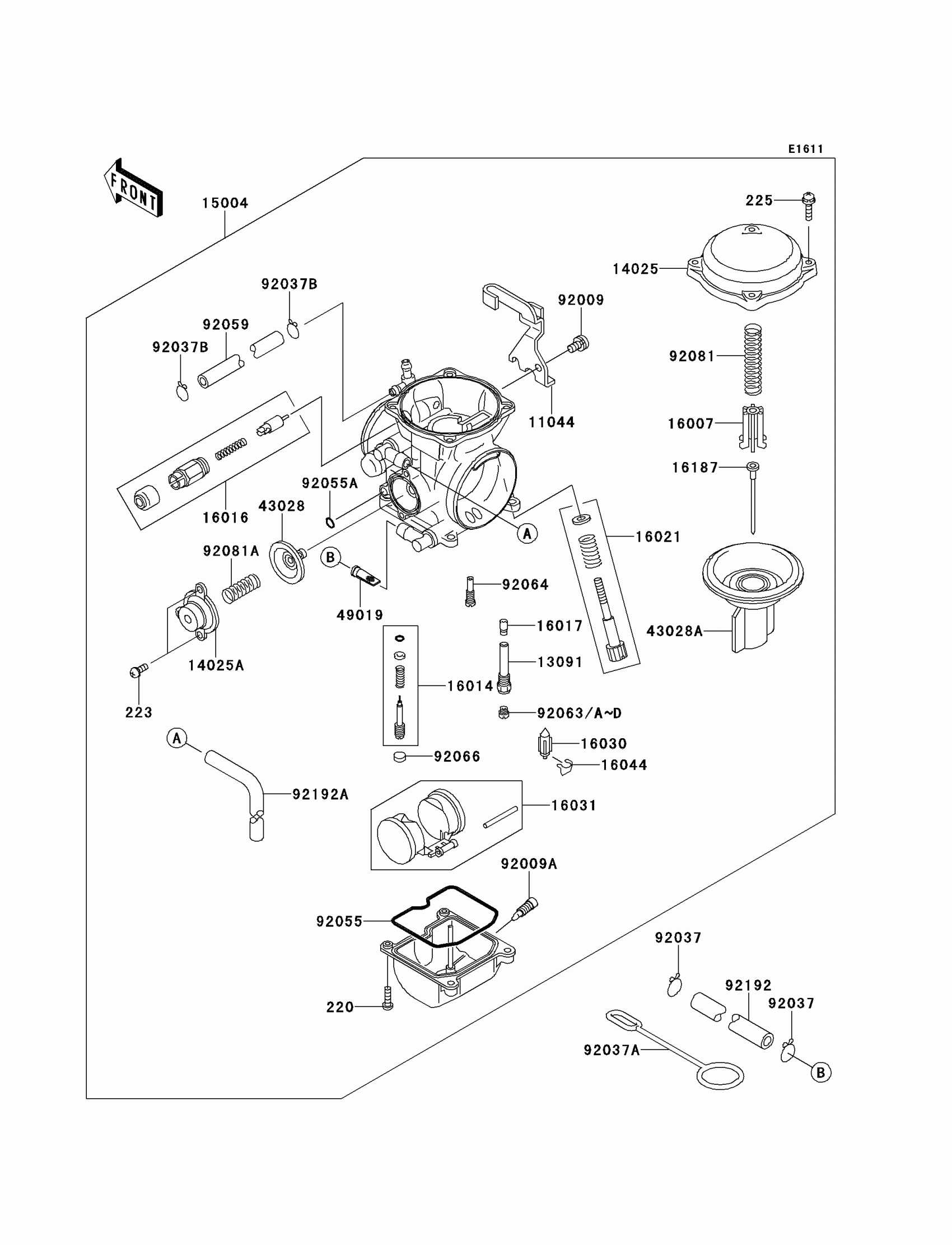

Kawasaki KLR650 New Edition Carburetor(US,CN) Diagram

#

Description
Price

11044

BRACKET,THROTTLE CABLE

11044-1353

$60.78

13091

HOLDER,NEEDLE JET

13091-1425

$26.26

14025

COVER,MIXING CHAMBER

14025-1890

$79.30

14025A

COVER,AIR CUT VALVE

14025-1903

$59.59

15004

CARBURETOR-ASSY,CVK40

15004-0073

$791.89

16007

SEAT-SPRING,DIAPHRAGM VALVE

16007-1113

$19.49

16014

SCREW-PILOT AIR

16014-1083

$21.44

16016

PLUNGER

16016-1087

$78.76

16017

JET-NEEDLE,#6

16017-0055

$35.33

16021

SCREW-THROTTLE STOP

16021-1201

$47.83

16030

VALVE-FLOAT

16030-1057

$41.75

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16187

NEEDLE-JET,N6NJ

16187-0275

$37.62

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-0016

$71.28

43028A

DIAPHRAGM,VALVE

43028-1062

$187.76

49019

FILTER-FUEL

49019-1097

$7.03

92009

SCREW,5X10

92009-1365

$5.61

92009A

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92037

CLAMP,12.5MM

92037-1271

$1.73

92037A

CLAMP,OVER FLOW PIPE

92037-134

$11.03

92037B

CLAMP,TUBE

92037-1477

$3.29

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92055A

RING-O

92055-1245

$4.23

92059

TUBE,5X9X160

92059-1201

$20.15

92063

JET-MAIN,#140

92063-1013

$10.71

92063A

JET-MAIN,#142

92063-1016

$13.39

92063B

JET-MAIN,#145

92063-1017

$10.71

92063C

JET-MAIN,#148

92063-1324

$13.39

92063D

JET-MAIN,#150

92063-1330

$13.39

92064

JET-PILOT,#40

92064-1108

$12.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,DIAPHRAGM VALVE

92081-1718

$26.00

92081A

SPRING,AIR CUT VALVE

92081-1719

$12.05

92192

TUBE,FUEL,6.2X13.2X170

92192-0453

$25.78

92192A

TUBE,L=360

92192-0589

$29.94

220

SCREW-PAN-CROS,4X14

220AA0414

$3.51

223

SCREW-PAN-WS-CROS,4X10

223C0410

$0.63

225

SCREW-PAN-WSP-CROS,4X18

225AB0418

$3.32
