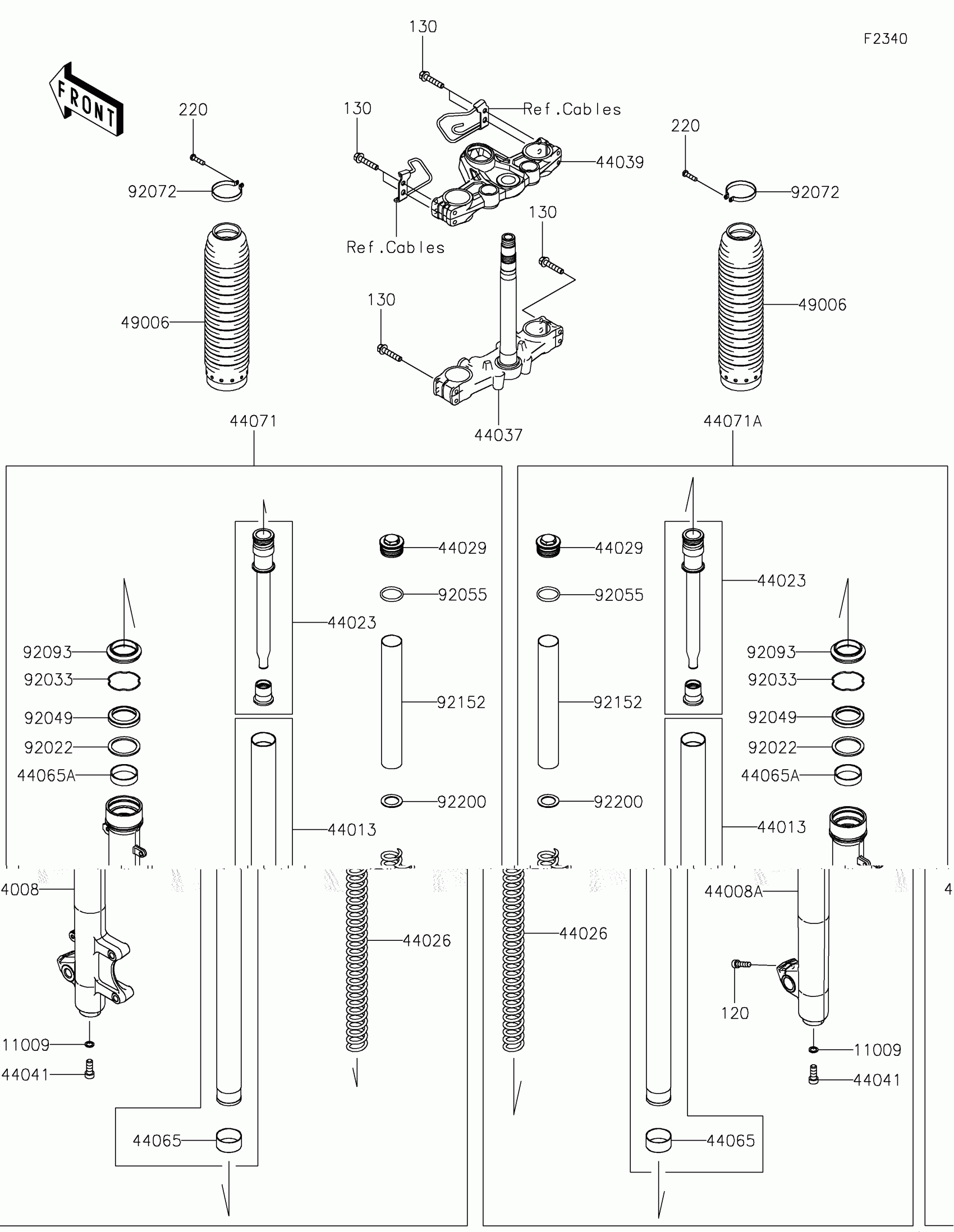

Find the part on the Front Fork diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

44008

PIPE-FORK OUTER

44008-0097

1
Out of stock

44008A

PIPE-FORK OUTER

44008-0098

1
Out of stock

44013

PIPE-FORK INNER

44013-0107

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0177

1
Out of stock

44026

SPRING-FRONT FORK

44026-0268

1
Out of stock

44029

SEAT-FORK SPRING

44029-0005

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0206

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0202

1
Out of stock

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

1
Out of stock

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

1
Out of stock

44071

DAMPER-ASSY,FORK,LH

44071-1487

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-1488

1
Out of stock

49006

BOOT

49006-0645

1
Out of stock

92022

WASHER,FORK OUTER TUBE

92022-1298

1
Out of stock

92033

RING-SNAP

92033-1036

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1356

1
Out of stock

92055

RING-O

92055-1321

1
Out of stock

92072

BAND,BOOT

92072-1077

1
Out of stock

92093

SEAL,DUST

92093-0036

1
Out of stock

92152

COLLAR,FORK

92152-0410

1
Out of stock

92200

WASHER

92200-1467

1
Out of stock

120

BOLT-SOCKET,8X30

120CA0830

1
Out of stock

130

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock

220

SCREW-PAN-CROS,4X16

220AB0416

1
Out of stock
