2025 Kawasaki KLR650 Adventure ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

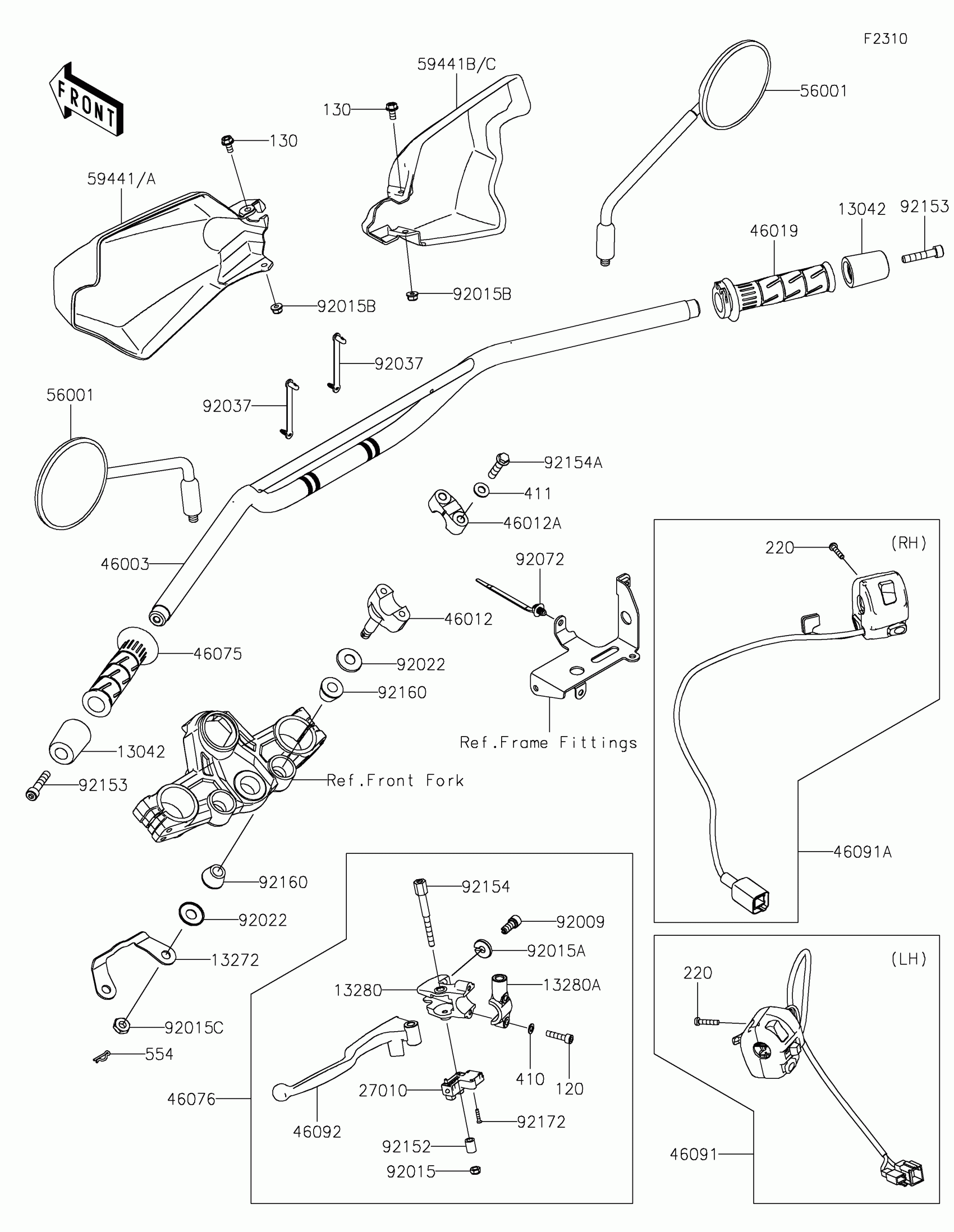

2025 Kawasaki KLR650 Adventure ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-5007

1
Out of stock

13272

PLATE,STABILIZER

13272-3799

1
Out of stock

13280

HOLDER,LEVER

13280-0929

1
Out of stock

13280A

HOLDER,MIRROR

13280-0930

1
Out of stock

27010

SWITCH,CLUTCH

27010-0729

1
Out of stock

46003

HANDLE

46003-0793

1
Out of stock

46012

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0075-18R

1
Out of stock

46012A

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0380-18R

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-0060

1

$29.71

In stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

LEVER-ASSY-GRIP

46076-0183

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0552

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0553

1
Out of stock

46092

LEVER-GRIP,CLUTCH

46092-0583

1
Out of stock

56001

MIRROR-ASSY

56001-0444

1
Out of stock

59441A

COVER-HANDLE,LH,EBONY

59441-0304-6C

1
Out of stock

59441C

COVER-HANDLE,RH,EBONY

59441-0307-6C

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

1
Out of stock

92015B

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92015C

NUT,LOCK,10MM

92015-1962

1
Out of stock

92022

WASHER

92022-1737

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92152

COLLAR,6.5X10.5X14

92152-2848

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-1901

1
Out of stock

92154

BOLT

92154-2359

1
Out of stock

92154A

BOLT,FLANGED,8X35

92154-3964

1
Out of stock

92160

DAMPER,HANDLE HOLDER

92160-1544

1
Out of stock

92172

SCREW,3X16

92172-0183

1
Out of stock

120

BOLT-SOCKET,6X25

120CB0625

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

220

SCREW-PAN-CROS,5X25

220AB0525

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410AB0600

1
Out of stock

411

WASHER-PLAIN,8.5X18X1.6

411AB0800

1
Out of stock

554

PIN-SNAP

554DA0800

1
Out of stock
