2025 Kawasaki KLR650 Adventure ABS Throttle Diagram

← All diagrams

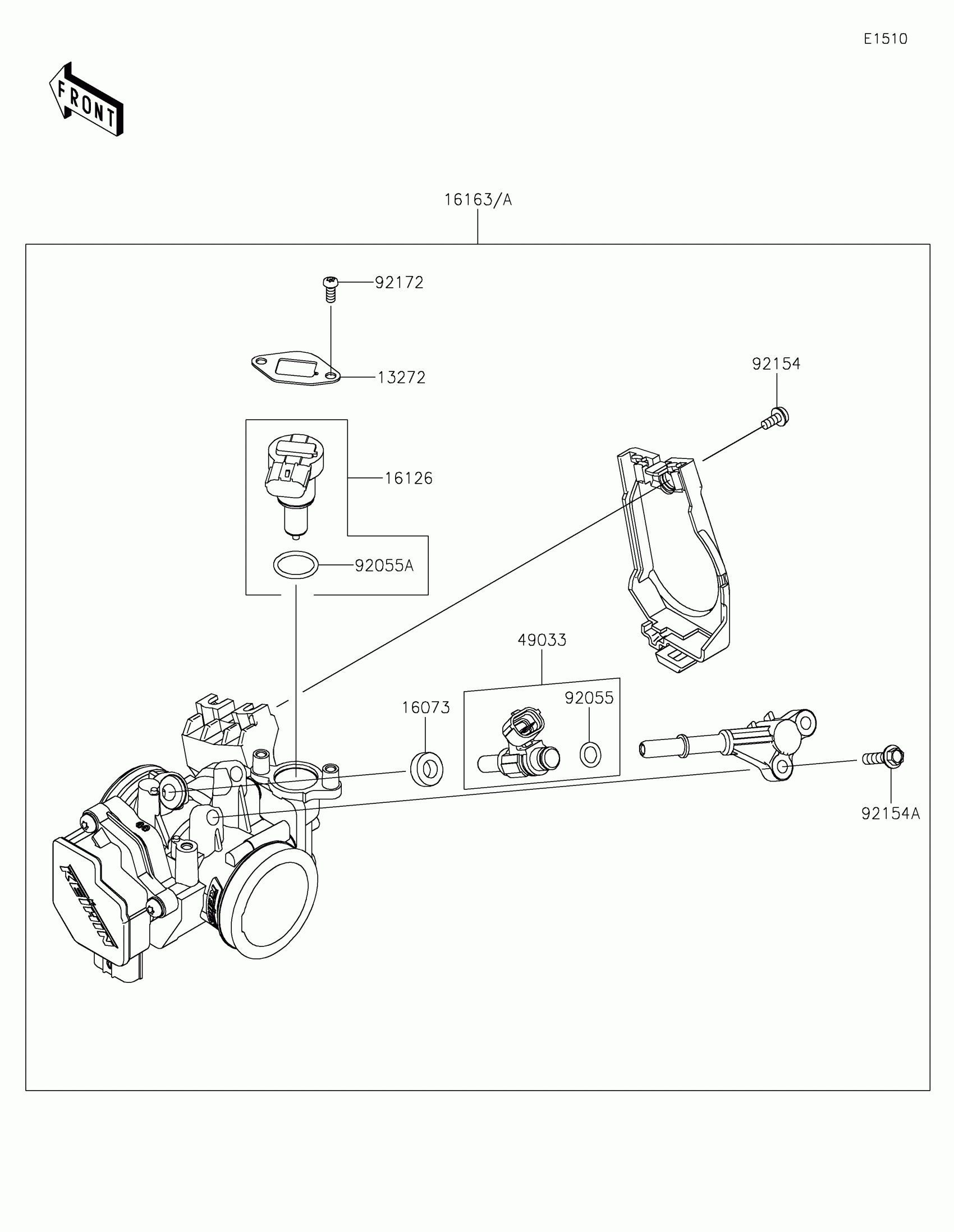

Find the part on the Throttle diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-1862

1

$21.07

In stock

16073

INSULATOR

16073-0129

1
Out of stock

16126

VALVE,ISC

16126-0768

1
Out of stock

16163

THROTTLE-ASSY

16163-1244

1
Out of stock

49033

NOZZLE-INJECTION

49033-0578

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-0124

1
Out of stock

92055A

RING-O

92055-0826

1
Out of stock

92154

BOLT

92154-0133

1
Out of stock

92154A

BOLT,FLANGED,5X20

92154-1559

1
Out of stock

92172

SCREW,TORX

92172-0903

1
Out of stock

16163A

THROTTLE-ASSY

16163-1248

1
Out of stock
