2025 Kawasaki KLR650 Adventure ABS Clutch Diagram

← All diagrams

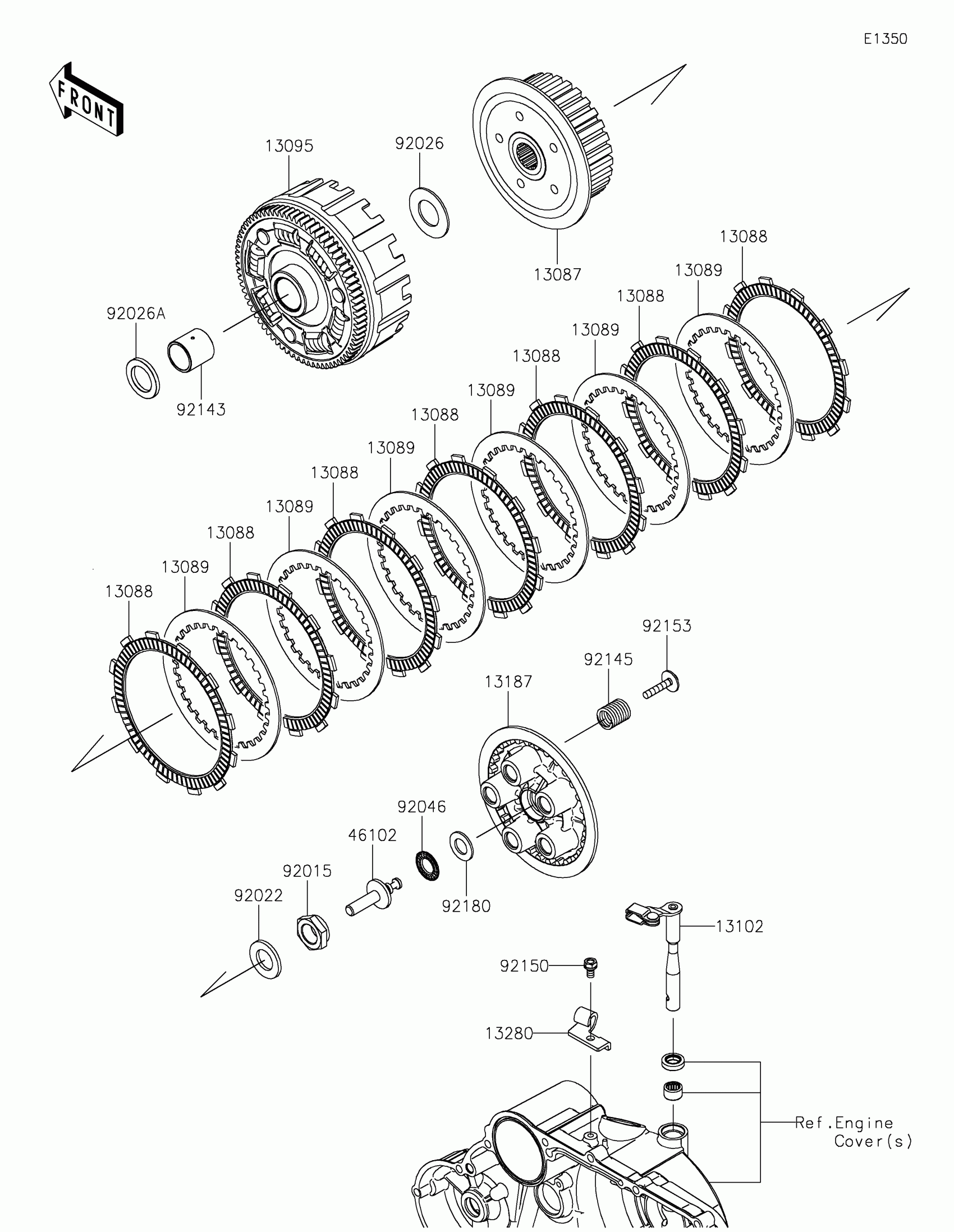

Find the part on the Clutch diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0046

1
Out of stock

13088

PLATE-FRICTION

13088-0023

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-0016

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0129

1

$517.43

In stock

13102

RELEASE-COMP-CLUTCH

13102-0083

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0037

1
Out of stock

13280

HOLDER

13280-0379

1

$13.47

In stock

46102

ROD

46102-0668

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X48X2

92026-0114

1
Out of stock

92026A

SPACER,25.1X38X4

92026-0154

1
Out of stock

92046

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92143

COLLAR

92143-1769

1
Out of stock

92145

SPRING,CLUTCH

92145-0796

1
Out of stock

92150

BOLT,6X12

92150-1965

1
Out of stock

92153

BOLT,UPSET-WP,6X32

92153-1880

1
Out of stock

92180

SHIM,15.3X27.5X2.0

92180-0149

1
Out of stock
