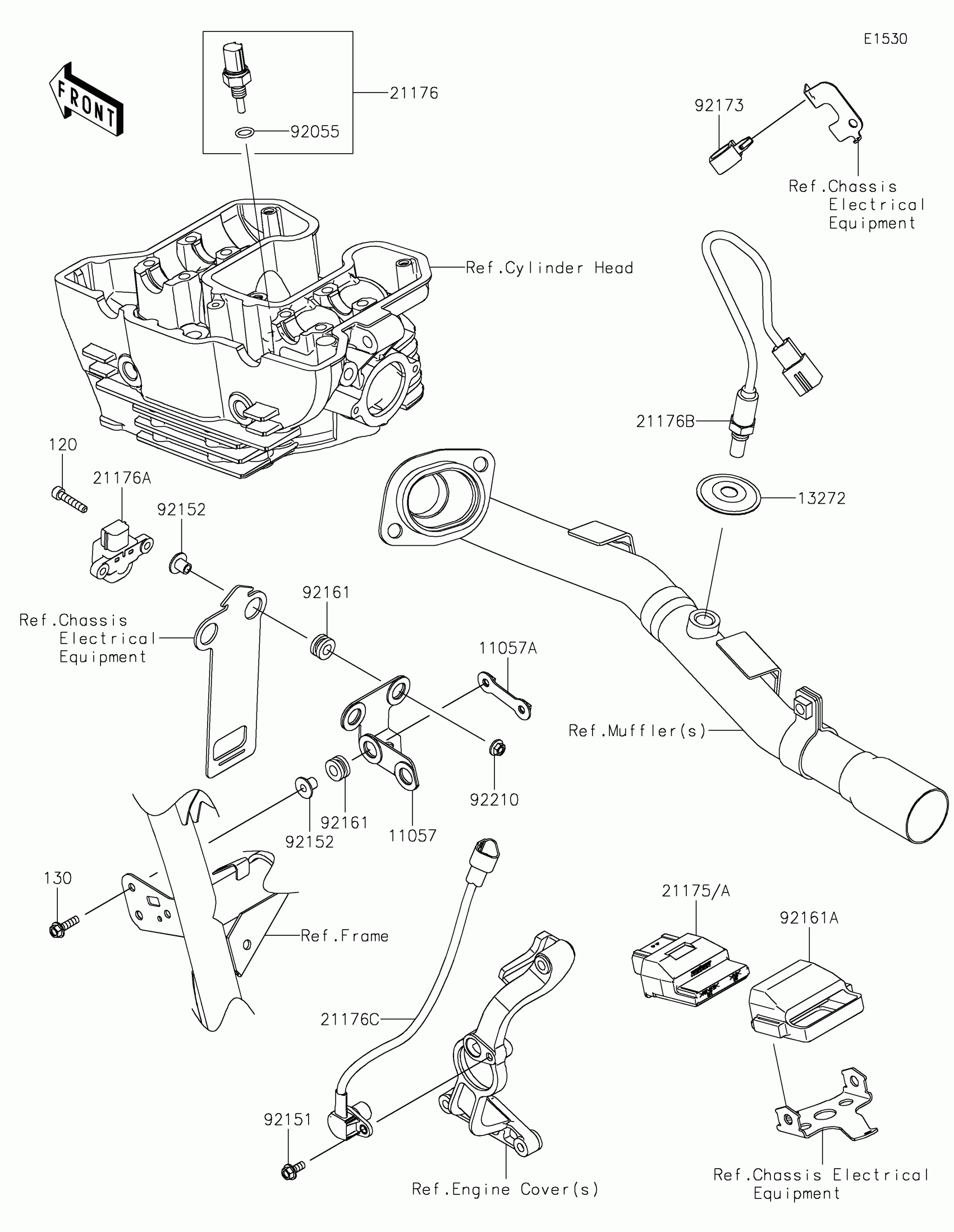

Find the part on the Fuel Injection diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,VEHICLE DOWN SENSOR

11057-7429

1
Out of stock

11057A

BRACKET

11057-7434

1
Out of stock

13272

PLATE,O2 SENSOR

13272-3888

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1666

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,OXYGEN

21176-0993

1
Out of stock

21176C

SENSOR,SPEED SENSOR

21176-0996

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92151

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92152

COLLAR

92152-1592

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1
Out of stock

92161A

DAMPER,ECU

92161-2358

1
Out of stock

92173

CLAMP

92173-2462

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

120

BOLT-SOCKET,5X25

120CA0525

1
Out of stock

130

BOLT-FLANGED,5X18

130BB0518

1

$1.71

In stock

21175

CONTROL UNIT-ELECTRONIC

21175-1665

1
Out of stock
